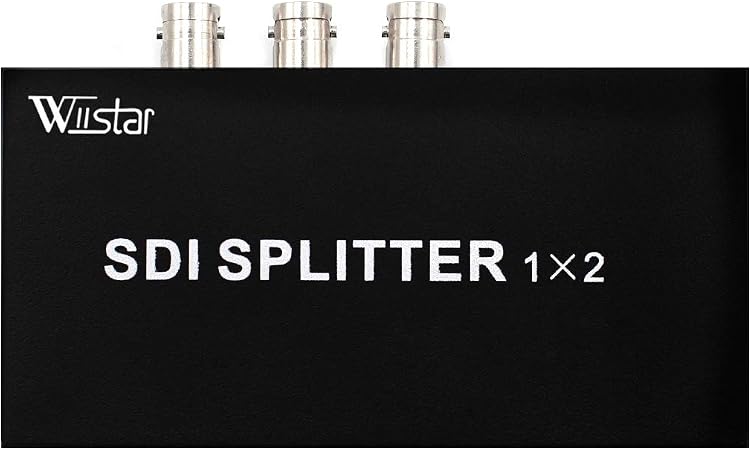

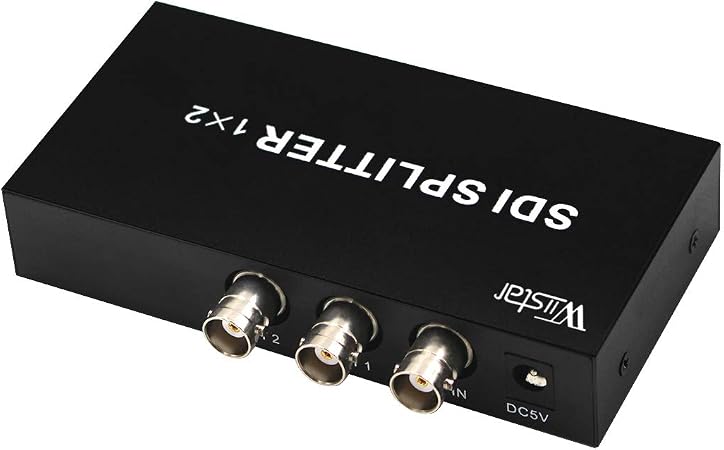

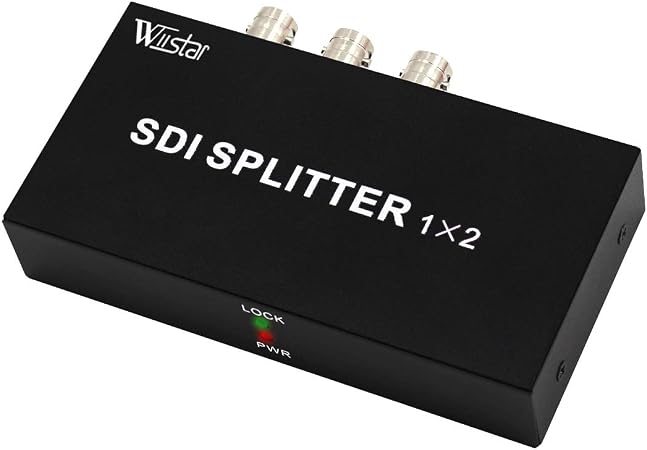

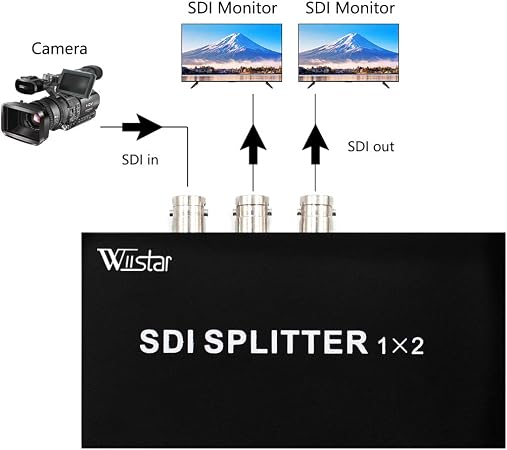

Wiistar 1x2 SDI splitter distributes one SDI signal to 2 simultaneous SDI outputs. It supports full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability. Using broadcast quality processing technology, it delivers high definition, lossless and lag-free distribution. This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.
Features
Equalizer circuit on the input and outputs, allowing it to support long cable runs
Support multiple video resolution:
SD 525i and 625i
HD 1080i at 50, 60 Hz
HD 1080p at 24, 25, 30, 50 and 60 Hz
Support multiple color e:
RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 or 4:2:0 sampled
Support wide range of data rates: 270Mbps ~ 2.97Gbps
