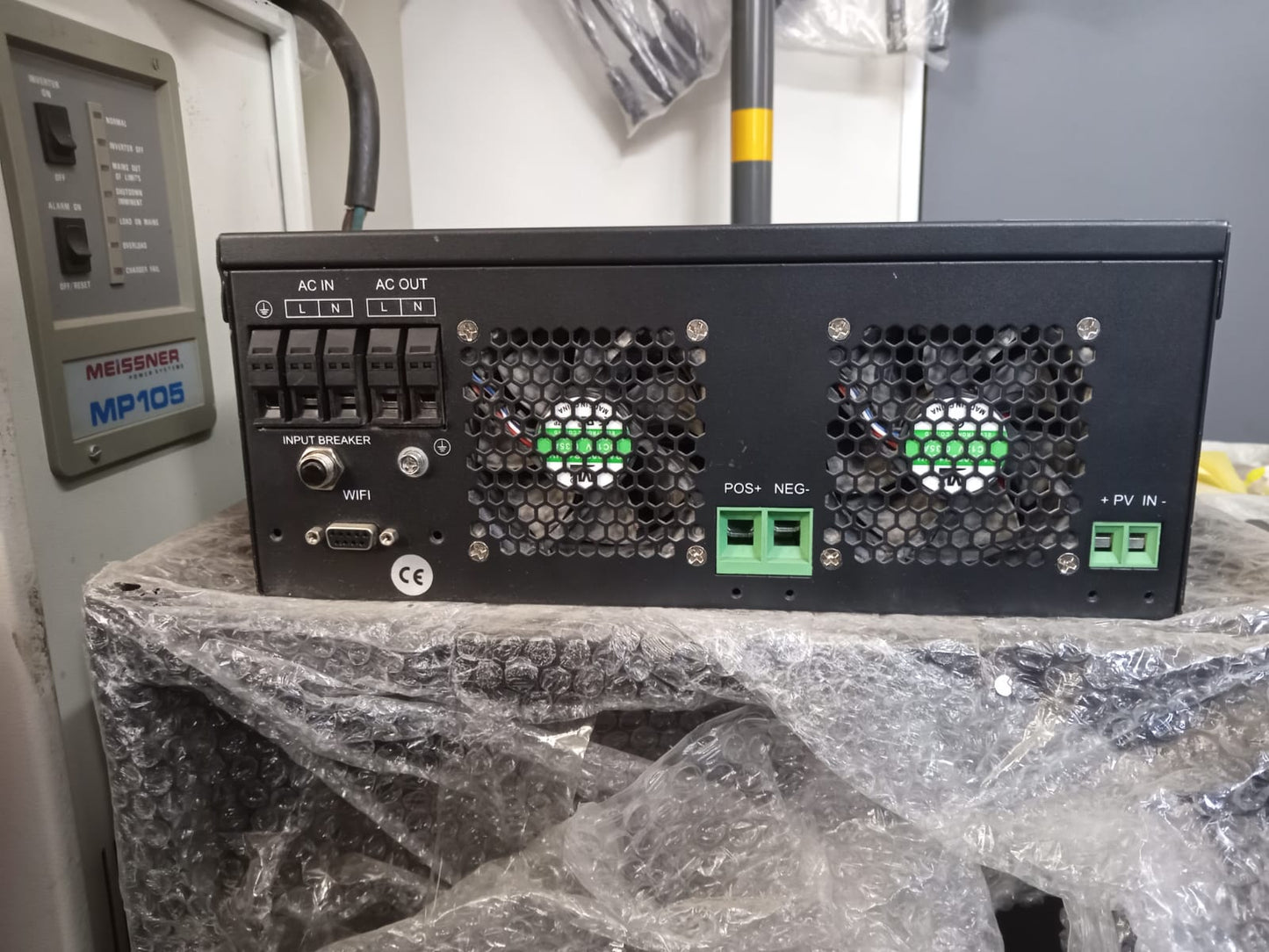

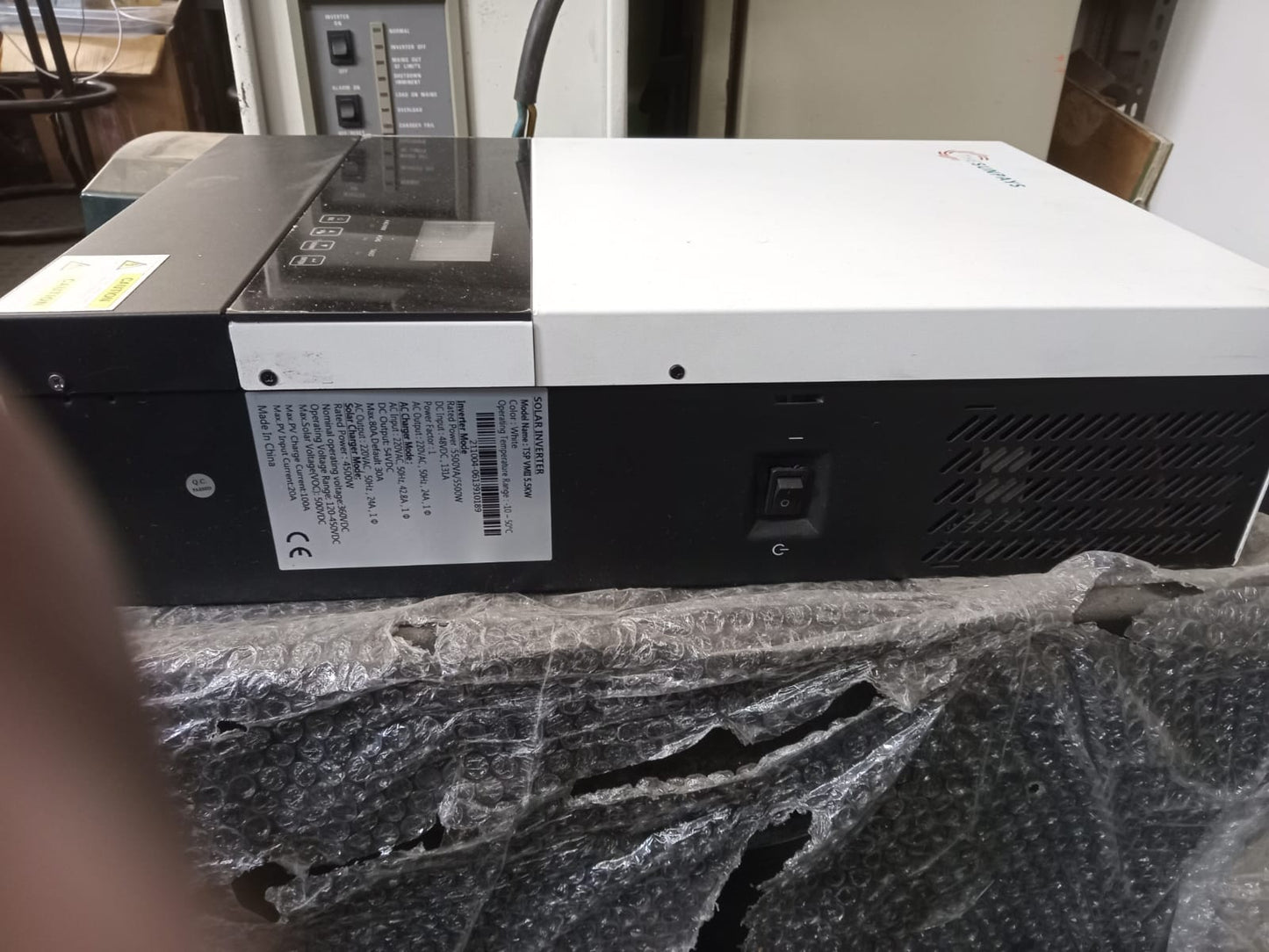

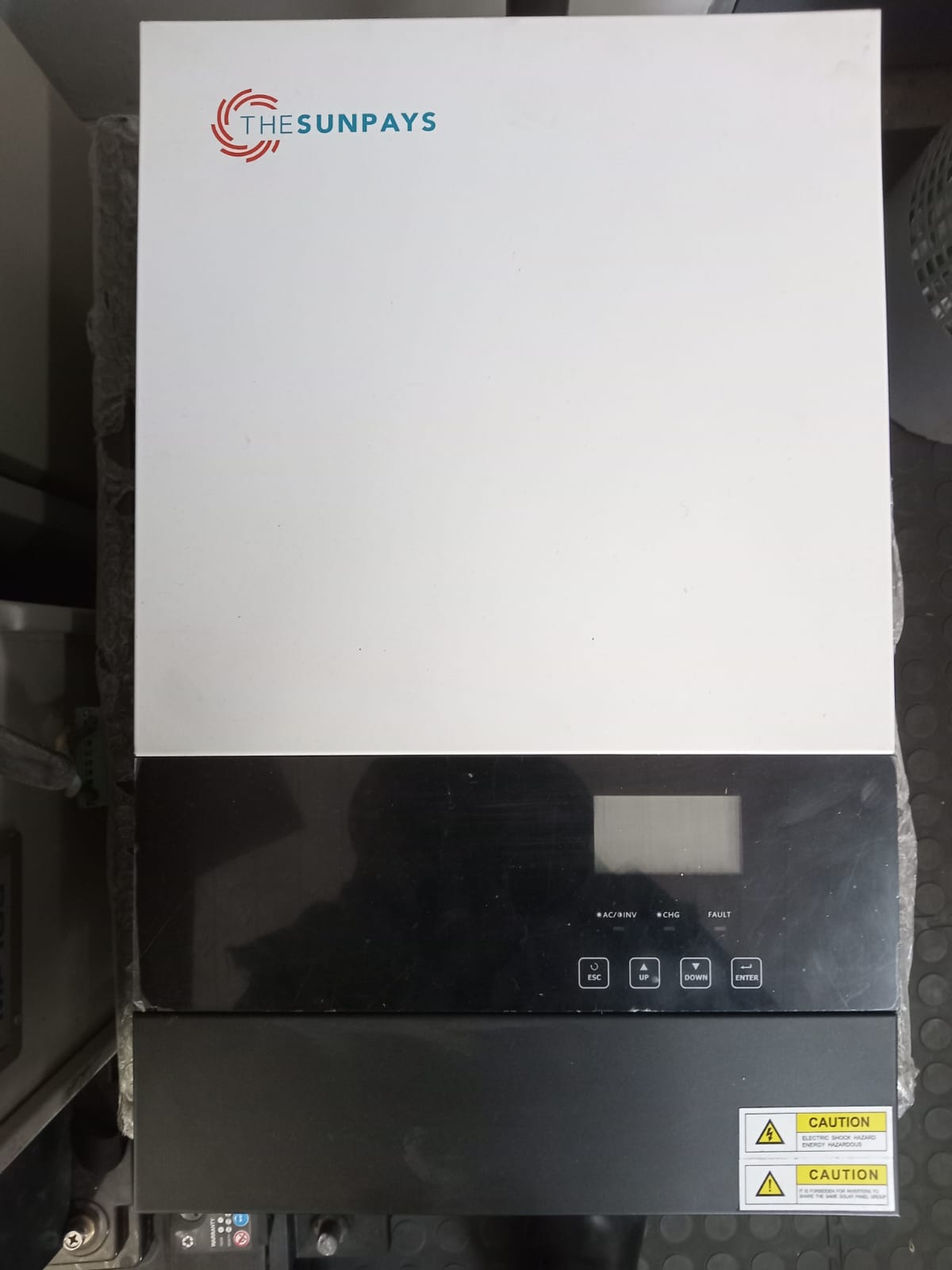

THESUNPAYS 5.5kW 48V Hybrid Solar Inverter - Preowned

Growatt 5000VA / 5000W 48V solar inverter. This is a multi-functional off grid photovoltaic Inverter, integrated with MPPT photovoltaic charging controller, high-frequency pure sine wave inverter and UPS functional module, which is very suitable for off grid backup power supply and self use system. The design of high-frequency transformer enables the machine to provide reliable power conversion in a small size. This inverter can also operate in battery free mode.

The WiFi/GPRS module is a plug and play monitoring device installed on the inverter. With this device, users can monitor the operation status of the photovoltaic system anytime, anywhere through mobile phones or websites.

Features

• Programmable supply priority for PV, Battery or Grid

• User adjustable charge current & voltage
• Wide PV input range 120 - 450Vdc, 100A

• Output power factor 1.0

• PV & Grid complementary
• Condition Used

Max Watt Output

• Continuous: 5.5kW


Solar input specifications

• 120 - 450Vdc and 20A solar input is the optimal working voltage range for these inverters
• If operation without batteries is required, this input condition must be met

Monitoring & Setting

• LCD screen


 Physical dimensions

• 472 x 297 x 133 mm
• 10.5KG

TSP MVII 5.5KW
