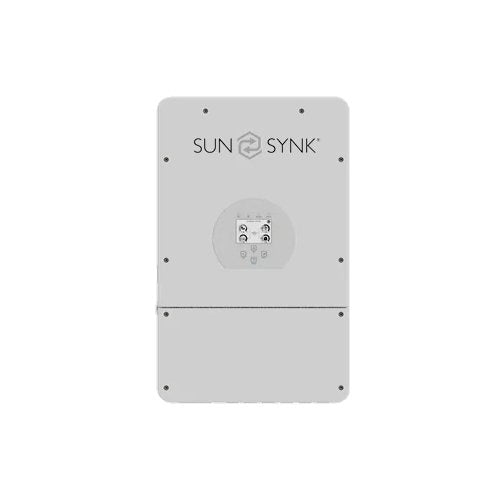

Sunsynk 8kW 48V Hybrid Inverter

8000W 48V hybrid inverter ideal for hybrid, off-grid and backup applications.

 Features

• Inputs:
  • PV solar
  • AC grid power
  • Batteries
  • Generator
• Output voltage – 120/240Vac (split phase), 208Vac (2/3), 230Vac (single phase)
• Continuous power – 8000W
• Backup power – 8000W
• DC – 48V
• Battery charger – 190A
• Transfer time <= 10ms
• Battery charger adjustable for battery bank size and type
  • Can charge Lead Acid and Li-ion batteries
  • Li-ion battery charging self-adapts to BMS
• Solar Input
  • Max power input – 10400W
  • Max V DC input – 370V (100V~500V)
  • Max current input – 18A + 18A
  • MPPTs – 2
  • MPPT Range – 125~425V
• Multi-core processor design and advanced MPPT control
• High reliability and response speed
• Programmable export
• Works parallel on or off-grid
• Single or 3-phase operation
• Multiple operating modes:
  • Battery only
  • Grid-tie only
  • Hybrid
  • Off-grid
• Additional features
  • AC couple – For additional PV input
  • 6 stages time of use settings
  • IP65
• Dimensions
• (W) Width: 420mm
• (H) Height: 233mm
• (L) Length: 680mm
• Weight (KG) Weight: 32kg

GF-SUNSYNK 8KW
