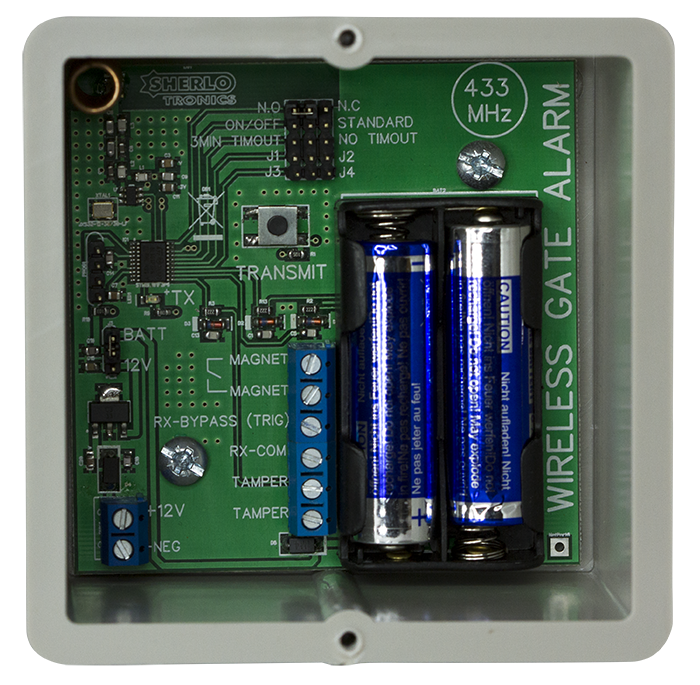

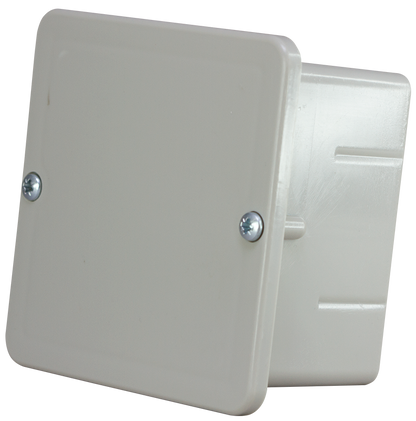

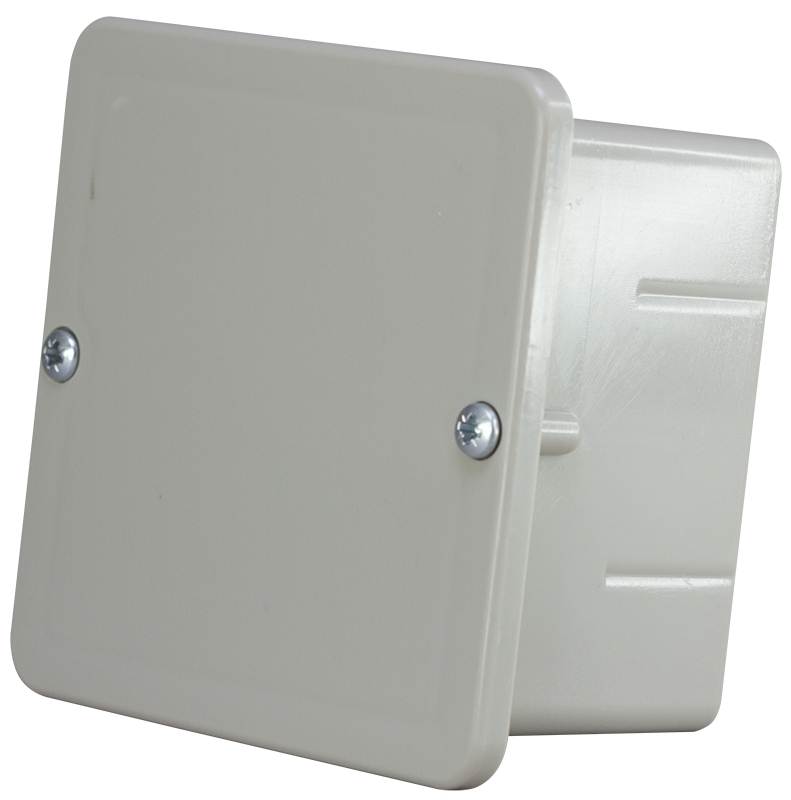

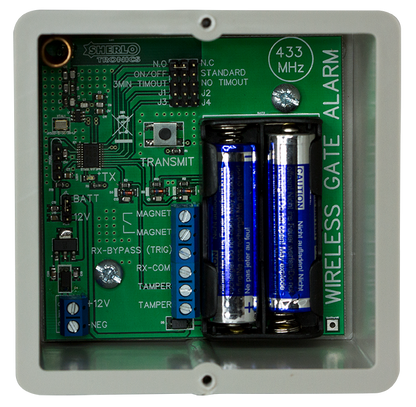

Sherlo Gate Alarm Transmitter

The wireless Gate Alarm unit was designed to help combat the need to secure gates or garage doors. Typically installed at the gate together with a wide gap magnetic contact the unit will transmit out an alarm signal to the receiver which would be hooked up to a modern alarm system.

Features

• Wireless Code-hopping
• Weather proof plastic housing IP55
• Battery Powered by AA batteries or 12VDC
• Trigger all the time or Bypass on a valid opening
• 3 Minute Alarm if the gate is left open
• Tamper output

Specifications

• Encryption: Code-Hopping
• Range: 100m (Open air)
• Frequencies: 403MHz / 433MHz
• Voltage Range: 3VDC or 12VDC
• Current draw: +/- 1uA 10%
• Dimensions(lxbxh): 124 x 80 x 30mm
• Gross Weight: 210grams
• Operating Temp: -7°C to 65°C

Applications

• Alarm monitoring of gates
• Alarm monitoring of garage doors
• Alarm monitoring of shed doors
• Alarm monitoring of emergency exits
• Alarm monitoring of roller shutter doors

Kit Includes

• 1 x Sherlo Gate Alarm Tx

403MHz: GATE-ALARM

433MHz: GATE-ALARM_433
