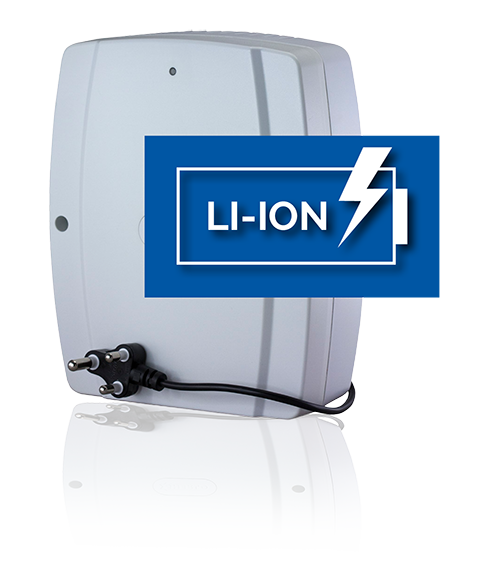

Sherlo 6A Lithium Battery Backup Power Supply

6AMP Power Supply Battery charger with Low Battery cut out. Designed with rugged intelligent charging, and with low battery protection. Battery not included.

Add a 18-22Ah Lithium Battery to your power store. The device is intended to ONLY Charge 12VDC Lithium batteries with a max capacity ampere hour rating of 10A/H. A bigger battery may result in the Power supply not operating correctly.

Features

• Microprocessor Controlled charging output.
• Current limited 2.4 / 4.8AMP
• Low battery switch off at 10V DC.
• Over voltage protection >15V
• Resettable Fuse protection on output.
• Fuse protection on AC input.
• ABS Plastic enclosure.


Specifications

• Input Voltage Range: 110V ~ 230V AC 50Hz
• Output Voltage: 13V ~ 14.4V Adjustable
• Max Current output: 6A DC / 75Watts
• Relay contact rating: 10A
• AC Fail output rating: 140mA Positive switching
• Operating temp: -3°C to 60°C
• Dimensions (lxbxh): 275 x 225 x 97mm
• Gross Weight: 1.13Kg


Applications

• Charging of 18-22AH (12.8V) Lithium batteries
• Alarm panel Battery backup
• CCTV Battery backup
• Backup power supply for door controller.
• Magnetic lock for an Access Control solution


6A_LITHIUM
