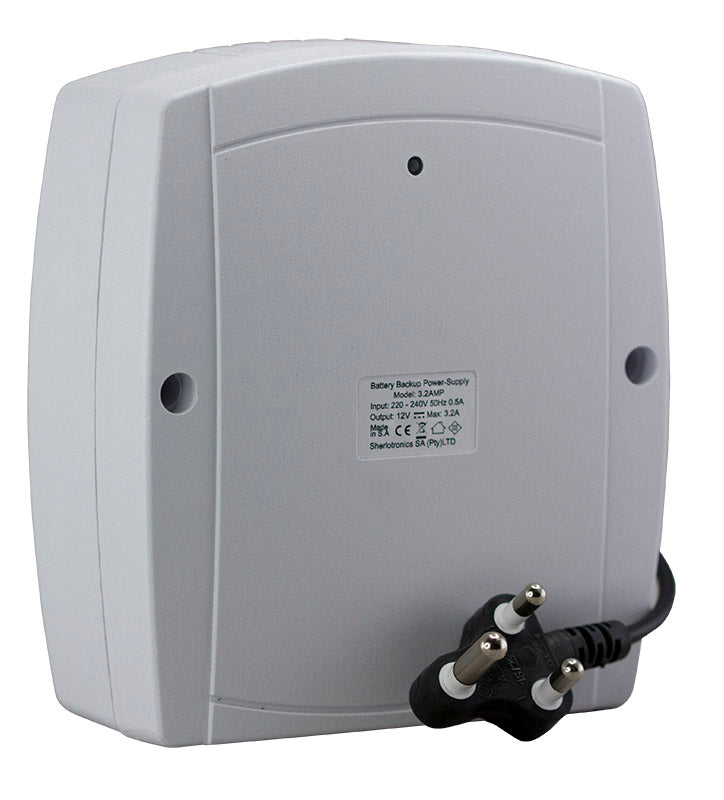

Sherlo 3.2A Battery Backup Power Supply

3.2 AMP Power Supply Battery charger with Low Battery cut out. Designed with rugged intelligent charging, and with low battery protection. Battery not included.

Add a 7Ah Battery to your power store.

Features

• Microprocessor Controlled charging output.
• Low battery switch off at 10V DC.
• Buzzer tones on battery low and AC Fail.
• Resettable Fuse protection on output.
• Fuse protection on AC input.
• ABS Plastic enclosure.

Specifications

• Input Voltage Range: 110V ~ 230V AC 50Hz
• Output Voltage: 13V ~ 14.4V Adjustable
• Max Current output: 3.2A DC / 40Watts
• Relay contact rating: 10A
• AC Fail output rating: 140mA Positive switching
• Operating temp: -3°C to 60°C
• Dimensions (LxBxH): 200 x 180 x 87mm
• Gross Weight: 0.895Kg

Applications

• Alarm panel Battery backup
• CCTV Battery backup
• Backup power supply for door controller.
• Magnetic lock for an Access Control solution
