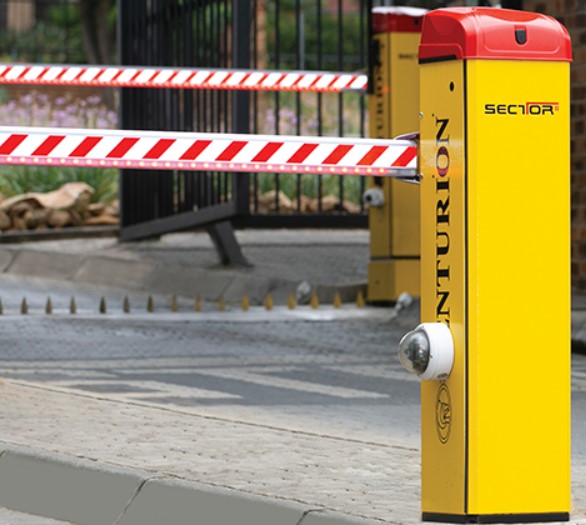

Centurion Sector II 3 meter Traffic Barrier Rectangular Pole Shroud and LEDs

Safe and cost-effectively high-duty vehicular access control to roadways 3 metres wide. The SECTOR is powered by a beefy custom-built DC motor and gearbox and can raise up to a six meter boom pole at a blistering pace of less than 1.2 seconds.

Mechanical Features

• Battery backup
• High-volume capability – up to 3000 operations per day for high-volume applications
• Very robust housings with varying degrees of corrosion protection for inland, coastal and marine environments
• Easy boom pole adjustment
• Onboard Nova Code-Hopping Receiver
• Receiver Storage Capacitor 500 Buttons
• Mass of Unit Packaged 44kg

• Packaging Dimensions (HxWxL): 1250 x 350 x 440mm

Electrical Features

• LCD user interface for simple setup
• Diagnostic screens for easy maintenance
• Smooth, intelligent speed control – set the pace for raising and lowering according to individual site requirements
• Rapid boom pole raise (3 metre version < 1.2 seconds) can be slowed down if required
• Integrated ChronoGuard timer technology (a world first) – wide range of Time-barring and Auto-activation features
• Barrier Raise and Lower inputs
• Memory and non-memory barrier activation
• Full configuration of barrier operating parameters including independent pole raise and lowering speeds, ramp-up and ramp-down angles
• Automatic lowering
• Multiple Operating Profiles
• Onboard multichannel CentSys code-hopping receiver with the ability to:
• Learn transmitter buttons to specific functions (e.g. Barrier Raise, Barrier Lower, etc.)
• Selectively delete specific transmitters that have been lost or stolen
• Automatically learn transmitters into the system (Autolearn)
• Automatically delete transmitters that are no longer in use (Delete-Not-Present)
• Multichannel controller with integrated ChronoGuard timer technology (a world first)
• Free-exit facility using an inductive loop detector or photocells
• Remote boom pole status indicator (Pole Position, Power Failure, Low Battery, Multiple Collision Detection and Security Light Status indication)
• Courtesy/Pillar Light Timer with adjustable duration
• Fully configurable Pre-delays with Multi-modal Pre-flash
• Safety/Closing Photocells input with beam functional test
• Lock/Emergency Stop input
• Ticket Vend Interlock which enables connectivity to a ticket vending machine

Kit includes

• Operator with Epoxy Coated Zinc Electroplated Mild Steel Casing
• Controller
• 2A SM Charger
• 7Ah Battery
• 3m Rectangular Boom Pole
• Shroud
• LEDS

BSEC2_3_MS_LED
