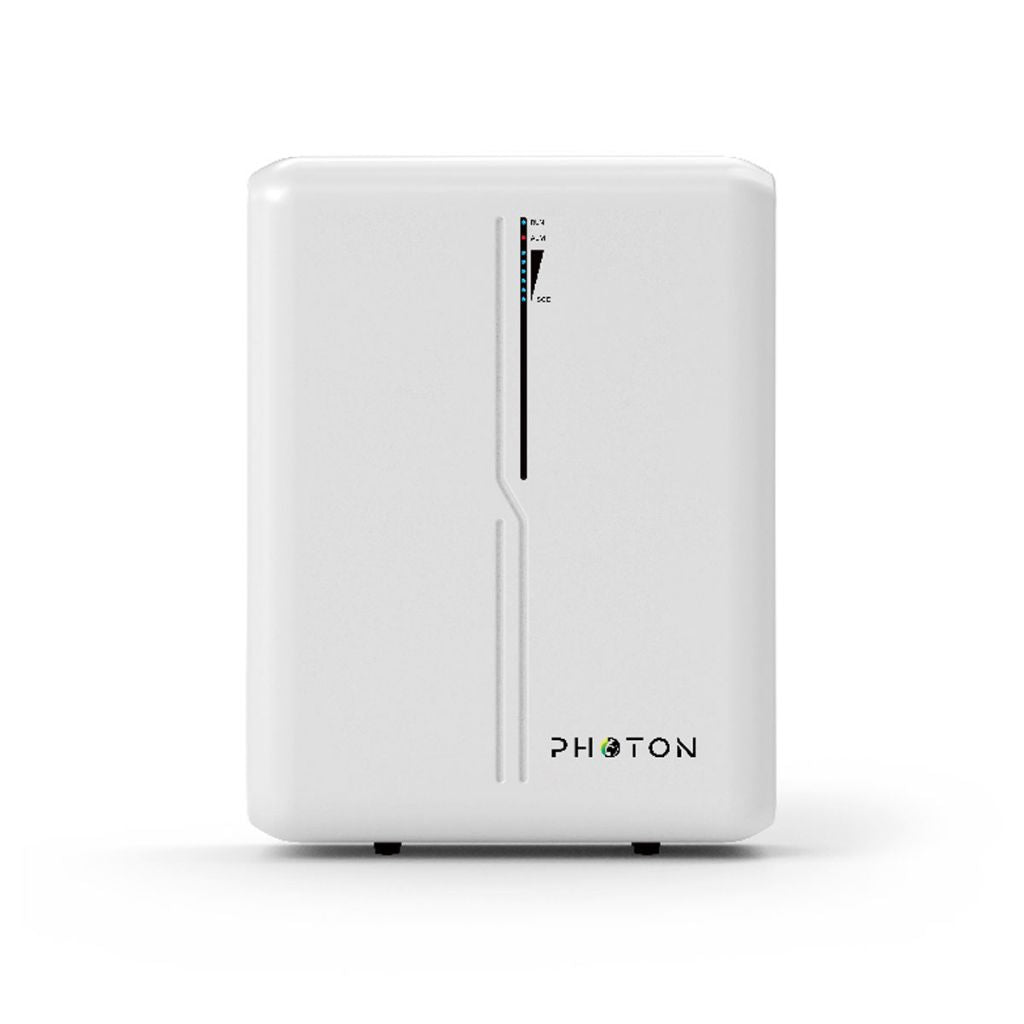

Photon 5.12kWh 51.2V Lithium Battery Wall Mount - 300A Busbar

Photon 5.12kWh 51.2V Lithium Battery Wall Mount - 300A Busbar.

Features

• Cell technology LFP (LiFePO4)

• Battery usable energy 5.12kWh

• Nominal voltage 51.2V

• Operating voltage 45.6 - 56.16V

• Nominal output current 100A / 50A

• BMS protection current 110A, 1s
• Communication CAN / RS485 / RS232 / Wi-Fi (optional)
• Weight 47 kg (104 lbs)

• Installation Floor stand or Wall mounted

• Operating temperature -20 to 60°C (-4 to 140°F)

• Environmental humidity ≤ 95%RH (No condensation)

• Protection rating IP20

• Cycle life 3500 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL

• Scalability Max 15 batteries in parallel

• Application ON Grid / ON Grid + Backup / OFF grid

• Compatible inverters Refer to compatible inverter list (Compatible with major PCS brands)

PTN-BAT-05K-WM-LFP-300
