Paradox NV780MR Dual Side Wireless Outdoor Motion Detector - PA3736
Digital Outdoor Dual Side-View Detector with 4 Dual Sensors. The NV780MR model replaces the NVR780 wireless.
- The NV780MR provides a pre-entry protection solution while keeping the perimeter free from movement, designed to protect exterior/interior walls and doors or windows.
- Unit is selectable to use either 433Mhz or 868Mhz via dip switch
- NV780M rugged indoor/outdoor detector incorporates two double passive infrared side-by-side detectors (right and left view), independent of each other with separate anti mask detection for each side.

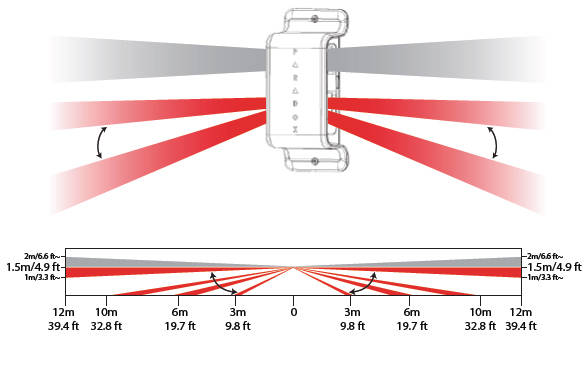

- The optics are specially designed to provide multiple narrow beams for excellent detection covering up to 12m for each side.
- Range adjustment is performed by adjusting the viewing angle of the bottom facing beams (moving them up and down).
- The detectors are configurable to report as a single unit (two side detectors reporting to a single zone output) or as dual units (each side reporting to a separate zone).
- Two double passive infrared motion detector with features:
- Dual side anti-masking detection - Active IR detection, fast 20 seconds detection designed for outdoor detecting sprayed liquids and blocking items up to 25 cm
- Pet Immunity capability, up to 40 kg
- 4 dual element sensors arrangement
- High efficiency long focal point (1.77 in.) LoDiff lens
- Combination optics - mirror and Fresnel Lens for optimal sharp detection
- Wireless frequency selection NV780MR support two internally selectable frequencies
- Single or Dual operation modes
- Optical and digital range adjustments
- Dual LED and buzzer indicators
- Wall-mount, with built-in level tool
