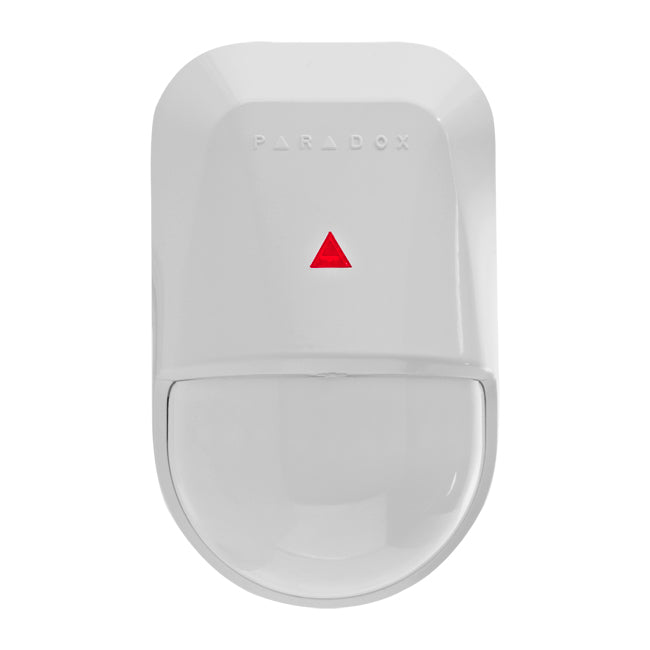

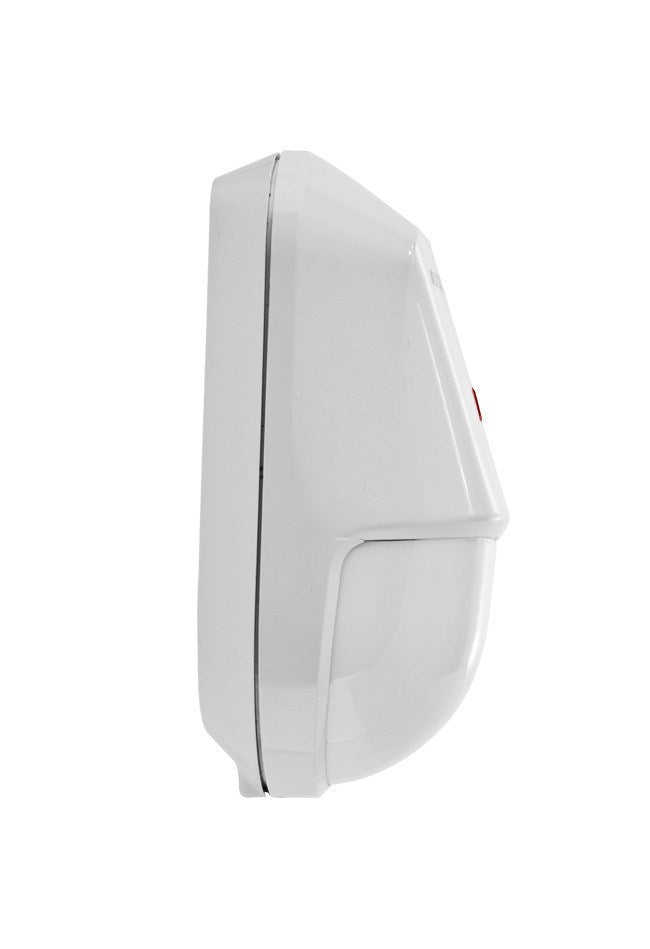

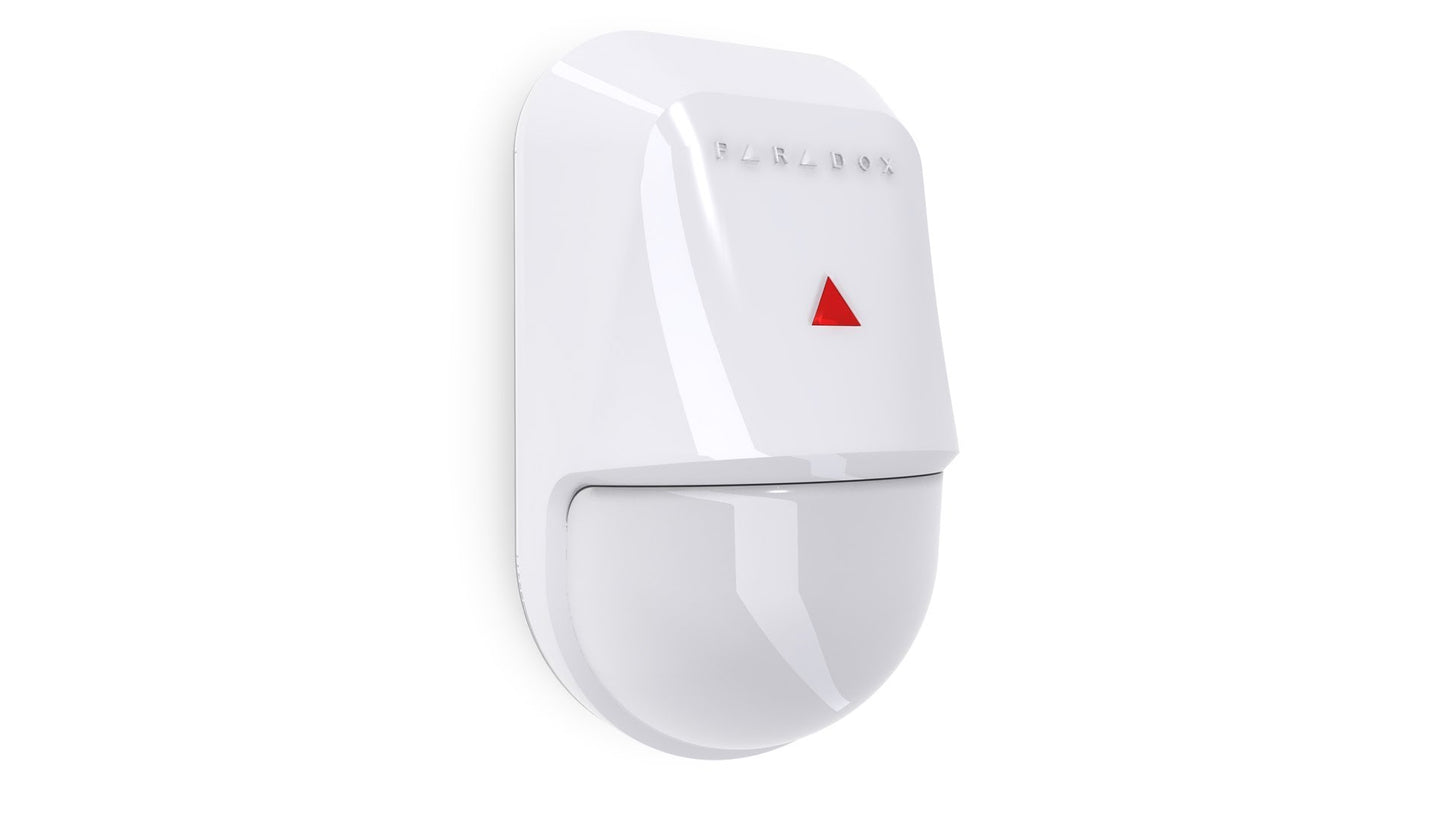

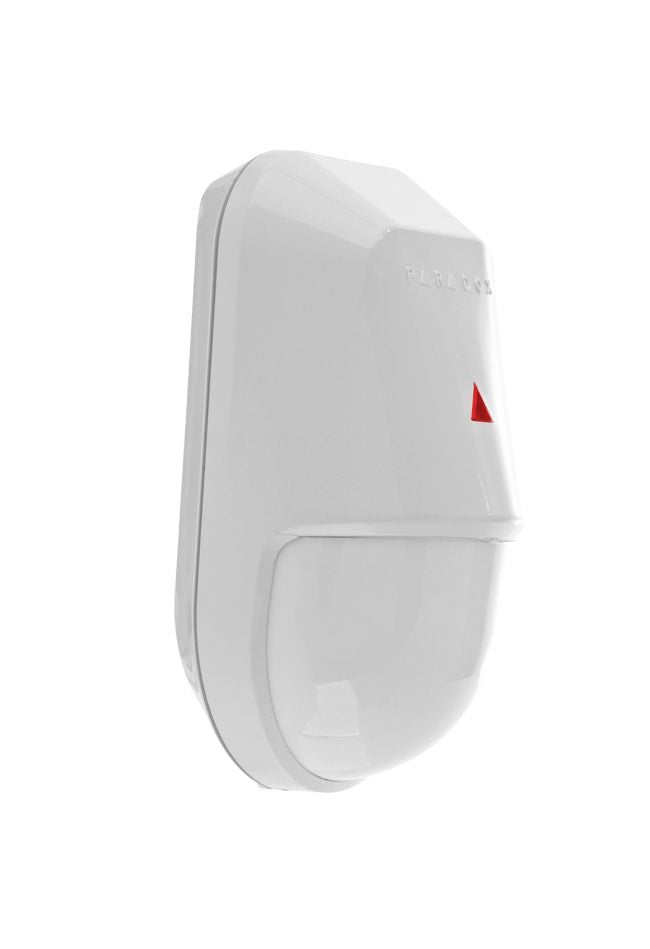

Paradox NV5-KNK Indoor Wired Motion Detector - PA1020

Indoor digital wired passive alarm beam for intrusion detection security alarm systems.

Features

• Infrared motion detector managed by Full Authority Digital Electronics Control (FADEC).

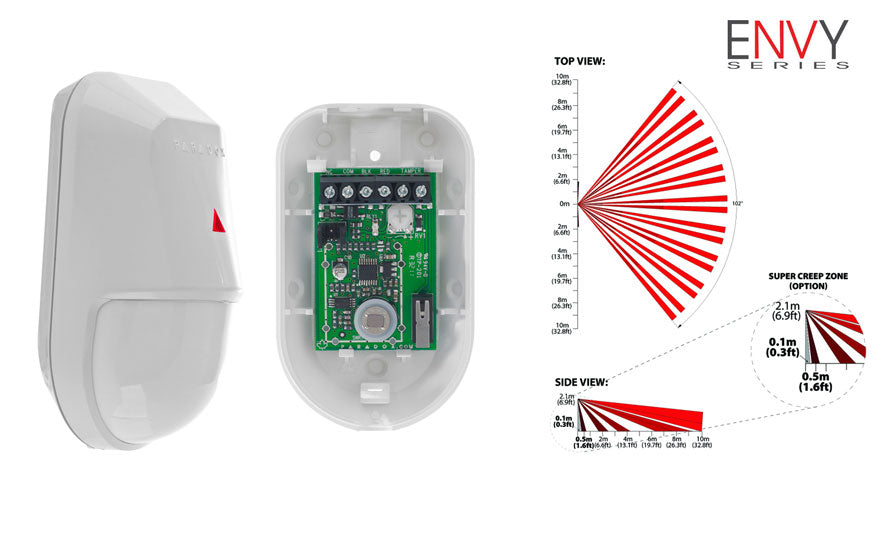

• Paradox's Hybrid Cylindrical-Spherical 1.0 inch lens with 3rd generation 3D Lodiff Fresnel segments- (10 x 10 m (32.8 x 32.8 ft.), 102 degrees viewing angle, and 0.5 m (1.6 ft) to max range (no dead zone beam pattern).
• Paradox's equalized detection pattern - ensures equal sensitivity throughout the protected area.
• Paradox Super Creep down-looking beam optic option for straight down detection.
• Dual/Single Edge Processing selection - the only one in its class.
• Paradox patented Dual Digital Auto Pulse Signal Processing (APSP) with two-level selection.
• Digitally equalized temperature compensation; unit performance specifically tailored to obtain same catch capability at all specified operating temperatures.
• Digital Sensitivity trimmer adjustment with five range levels and LED feedback, allows for perfect unit adjustment for all room sizes.
• Miniature yet easy to install with no PCB removal or adjustment.

PA1020
