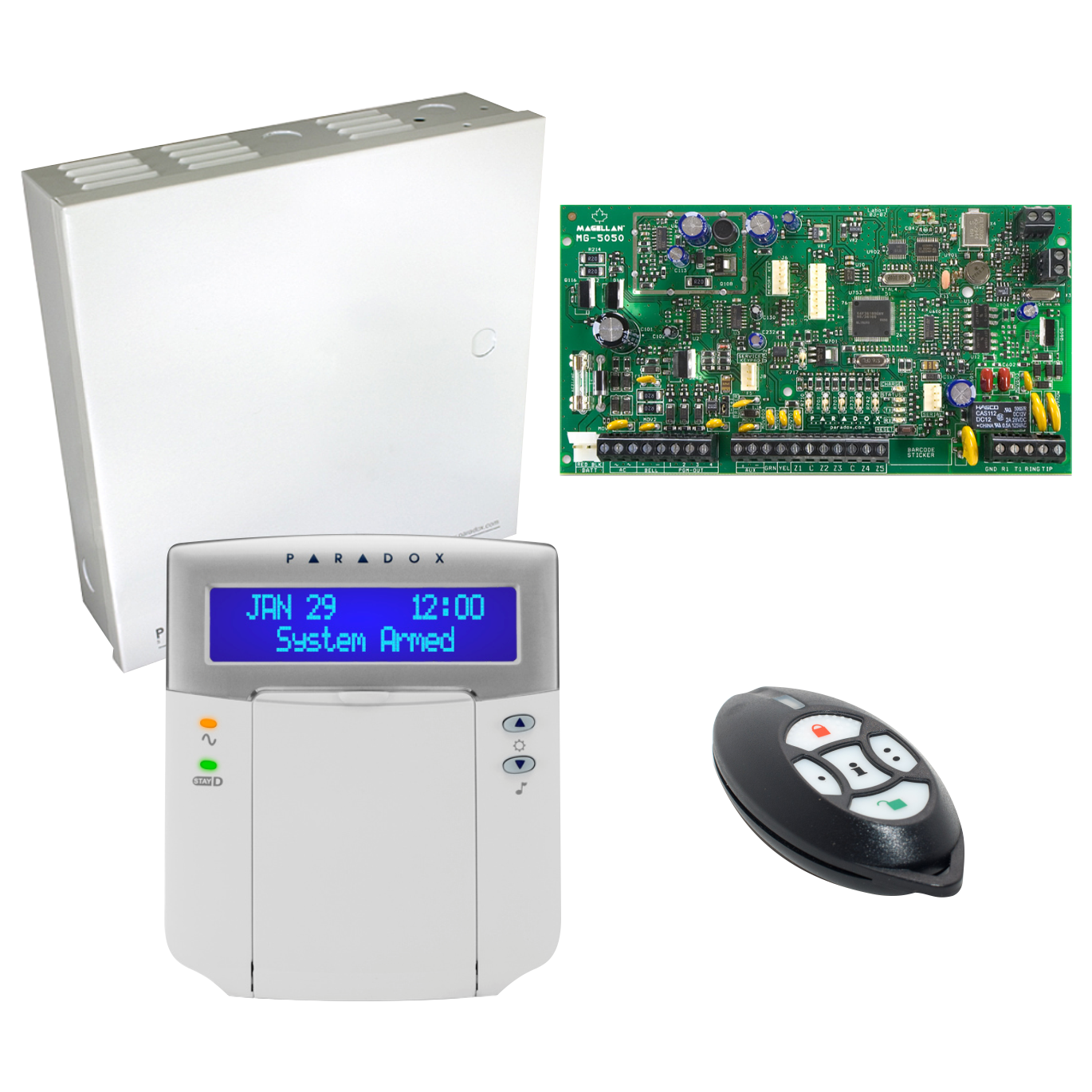

Paradox MG5050 K32 LCD Keypad REM2 Upgrade Kit - PA9290

by Paradox
R 3,375.00
Features
  • StayD Mode

  • Built-in transceiver (433MHz or 868MHz)

  • 32 zones (any of which can be wireless)

  • 32 users and 32 remote controls (one per user)

  • 2 partitions

  • 4-wire communication bus (connect up to 15 keypads)

  • Supports REM3 hand-held remote keypad

  • Supports up to 8 K32RF / K32IRF wireless keypads

  • Supports up to 2 RPT1 wireless repeaters

  • Supports PSC100 GSM Module and Wi-Fi or 3G iPhone, iPod Touch, or iPad (via iParadox)

  • Supports IP100 Internet Module

  • Supports VDMP3 Plug-in voice dialer

  • Supports 16 PGMs (any of which can be wireless

  • In-field firmware upgrade via 307USB and WinLoad

  • Menu-driven programming for the Installer, Master and Maintenance codes

  • Multiple telephone numbers for event reporting: 3 monitoring, 5 for Personal Dialing and 1 for pager

  • Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry (US Patents 5751803, RE39406)

  • Calendar with Daylight savings Time

  • New Sleep arming method

  • Push button power reset

  • RF Jamming Supervision

  • 9.6k baud communication with WinLoad

  • 256 events buffered

  • Supports Memory Key (PMC5)

  • Fits in a 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) metal box or in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box

Metal Box Features
  • Provision for multiple module and panel mounting
  • Many punch-out holes for simple wiring
  • Easy door removal
  • Convenient sizes:  - 20cm X 25.5cm X 7.6cm (8" x 10" x 3")
     - 28cm X 28cm X 7.6cm (11" x11" x 3")  - 33cm X 40.5cm X 10cm (13" x 16" x 4")
REM2 Remote Control Features
  • Supports StayD (Version 2.0 or higher)
  • Built-in transceiver (433MHz or 868MHz)
  • Displays system status using visual (LED) and auditory feedback
  • Press the Status button at any time to receive the system status
  • Perform up to 6 different actions per remote control
  • Compact, water-resistant design with backlight for buttons
  • Built-in access card. Present remote control to a reader like an access card
  • Wireless range in a typical residential environment:
30m (100ft) with MG6160 / MG6130
45m (150ft) with MG5000 / MG5050 / RTX3

K32LCD 32-Character Hardwired LCD Keypad Module
Features
  • 32-character blue LCD with programmable labels
  • Real-time zone alarm display (until disarmed)
  • In-field firmware upgrade via 307USB and WinLoad
  • StayD status LED
  • Menu-driven programming for easy system setup (installer and end user)
  • 1 keypad zone input
  • Independently set chime zones
  • 8 one-touch action buttons
  • 3 keypad-activated panic alarms
  • Adjustable backlight, contrast and scroll speed
  • Connects to 4-wire expansion bus
  • Compatible with MG5000, MG5050 and Spectra SP series V2.31 and up
Includes...
  • 1 x MG-5050 PC Board
  • 1 x Panel Box 28 x 28 x 7.6cm
  • 1 x K32 LCD Keypad
  • 1 x REM2 Remote

PA9290
