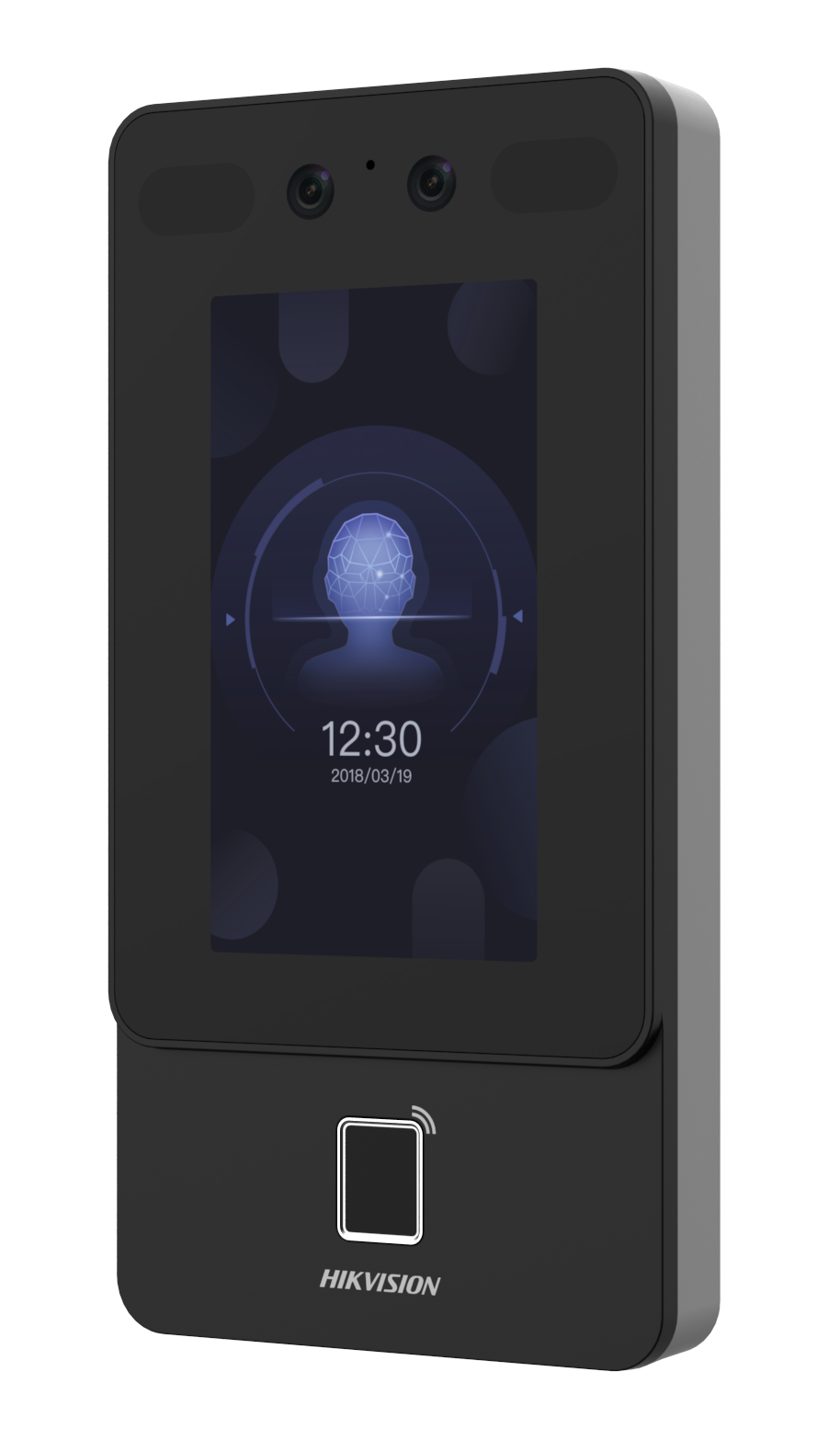

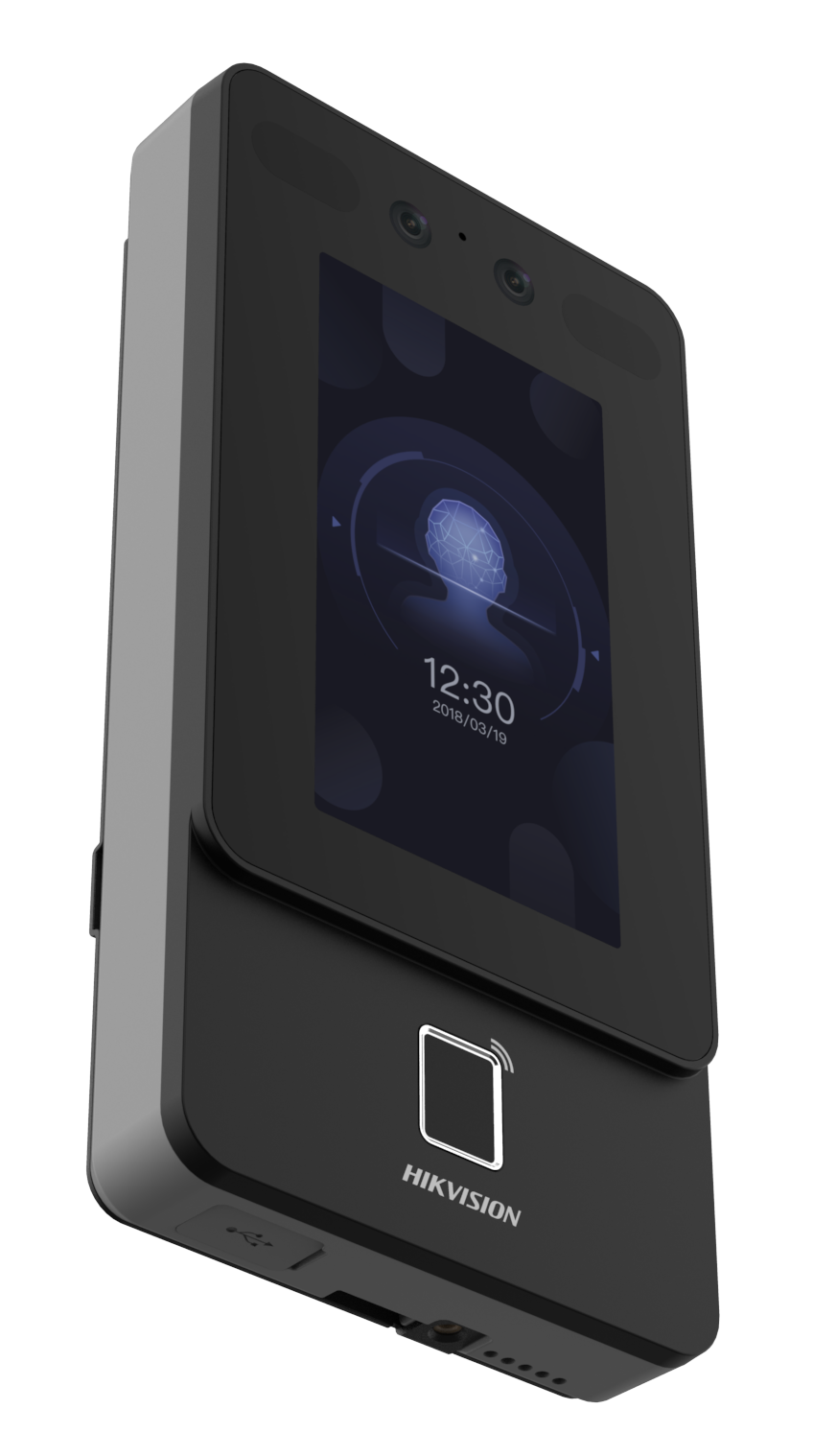

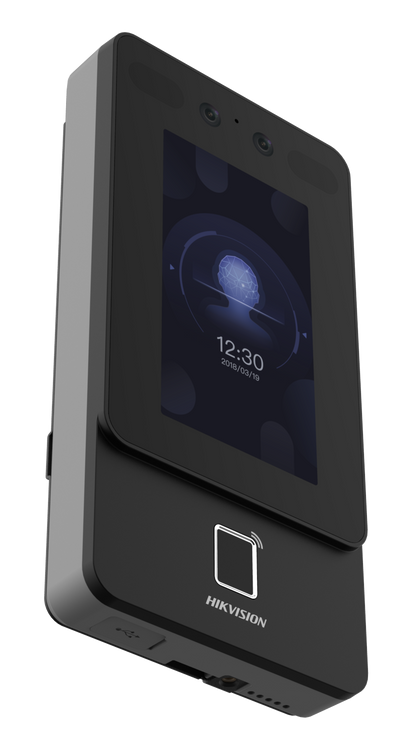

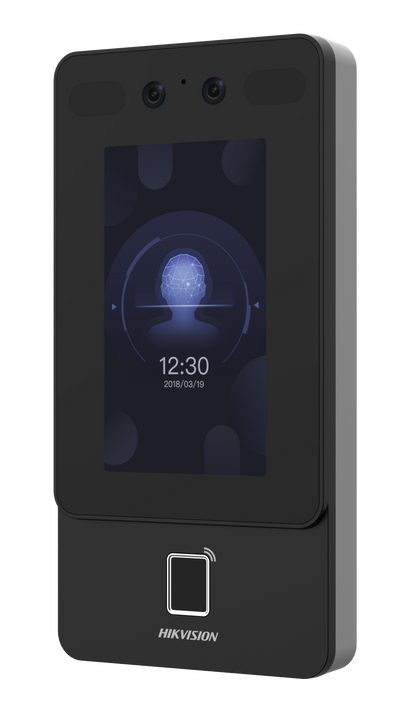

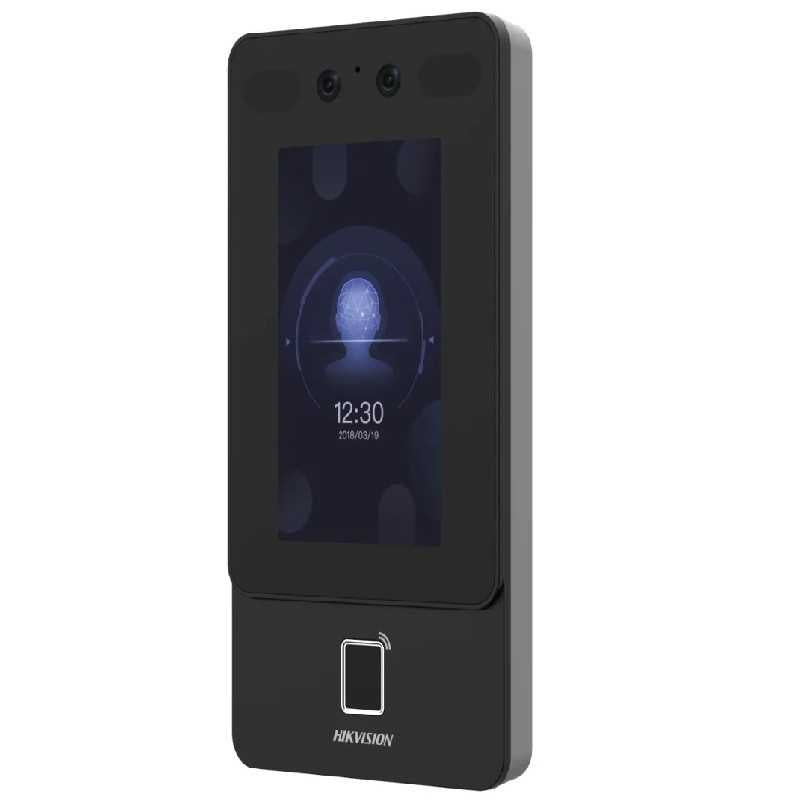

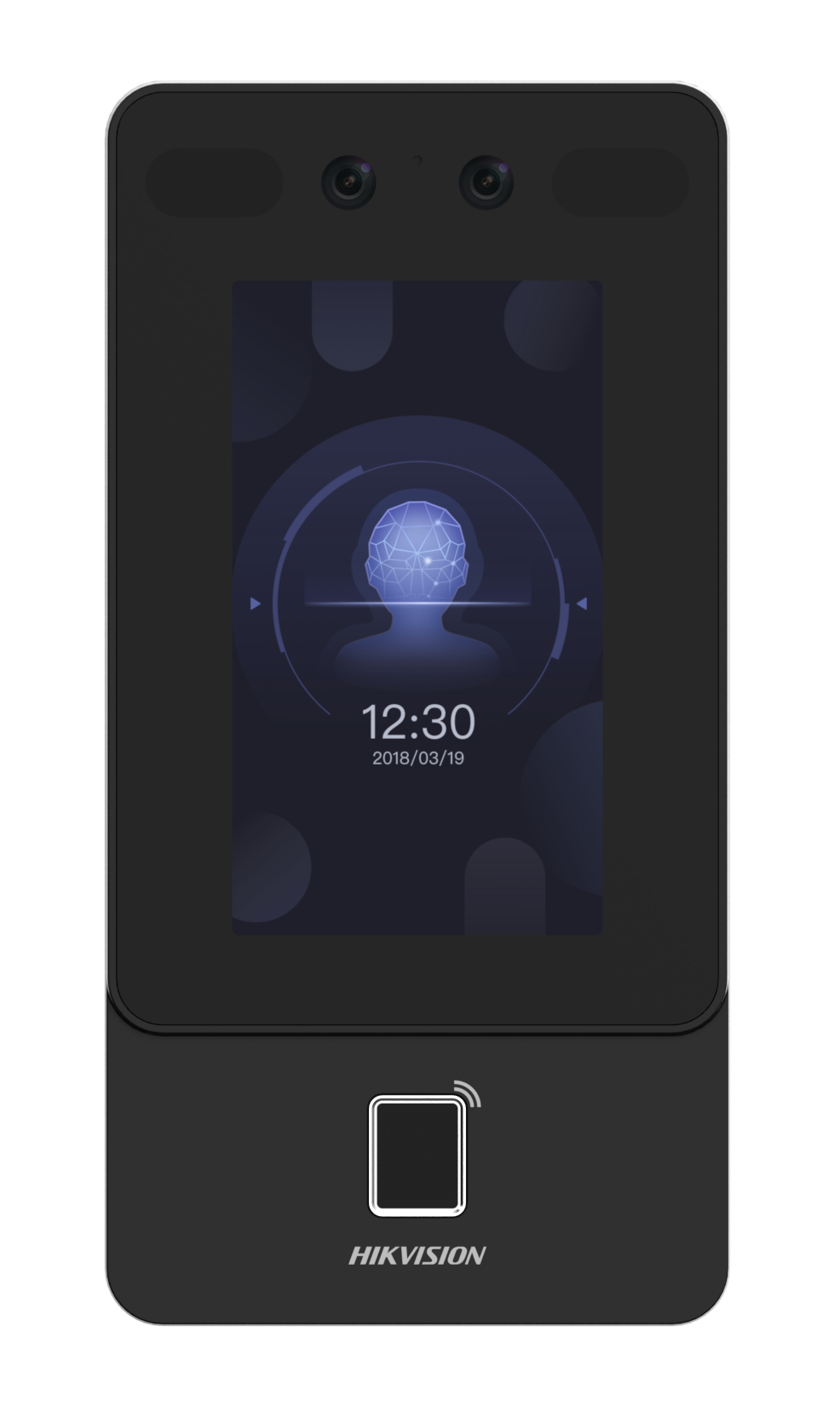

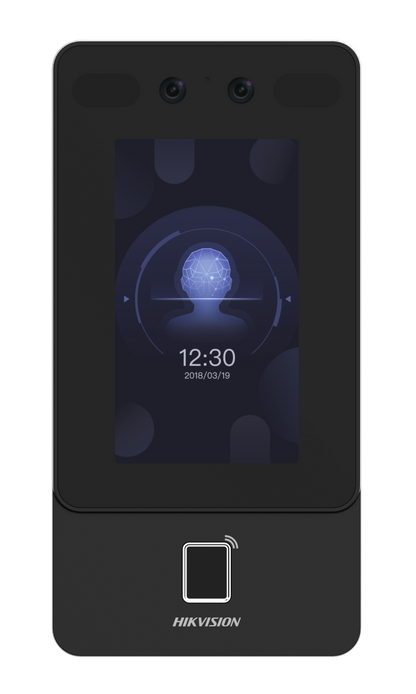

Hikvision Access Mini Face Recognition Terminal

Value series face access terminal.

Features

• Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
• Supports face with mask recognition
• Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
• Supports platform-applied personal PIN and device-set personal PIN
• Supports Push SDK.
• Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio.
• Supports face duplicate check, preventing multiple people from using the same face.
• Supports attendance-only function.
•


Specifications

• Screen size 4.3 inch
• Capacitive touch screen
• Resolution 272 × 480
• Noise suppression and echo cancellation
• Wi-Fi Support
• Network interface
• 1 Lock control
• 1 Exit button
• RS-485
• Wiegand
• Card type M1 Card
• Power supply 12VDC to 24VDC, 2A
• Card capacity 3000
• Face capacity 1500
• Fingerprint capacity 3000
• Event capacity 150 000
• Face recognition distance 0.3 to 1.5m
• Dimensions 91.3 × 181.3 × 24.5mm
• IP65

DS-K1T342MFWX-E1
