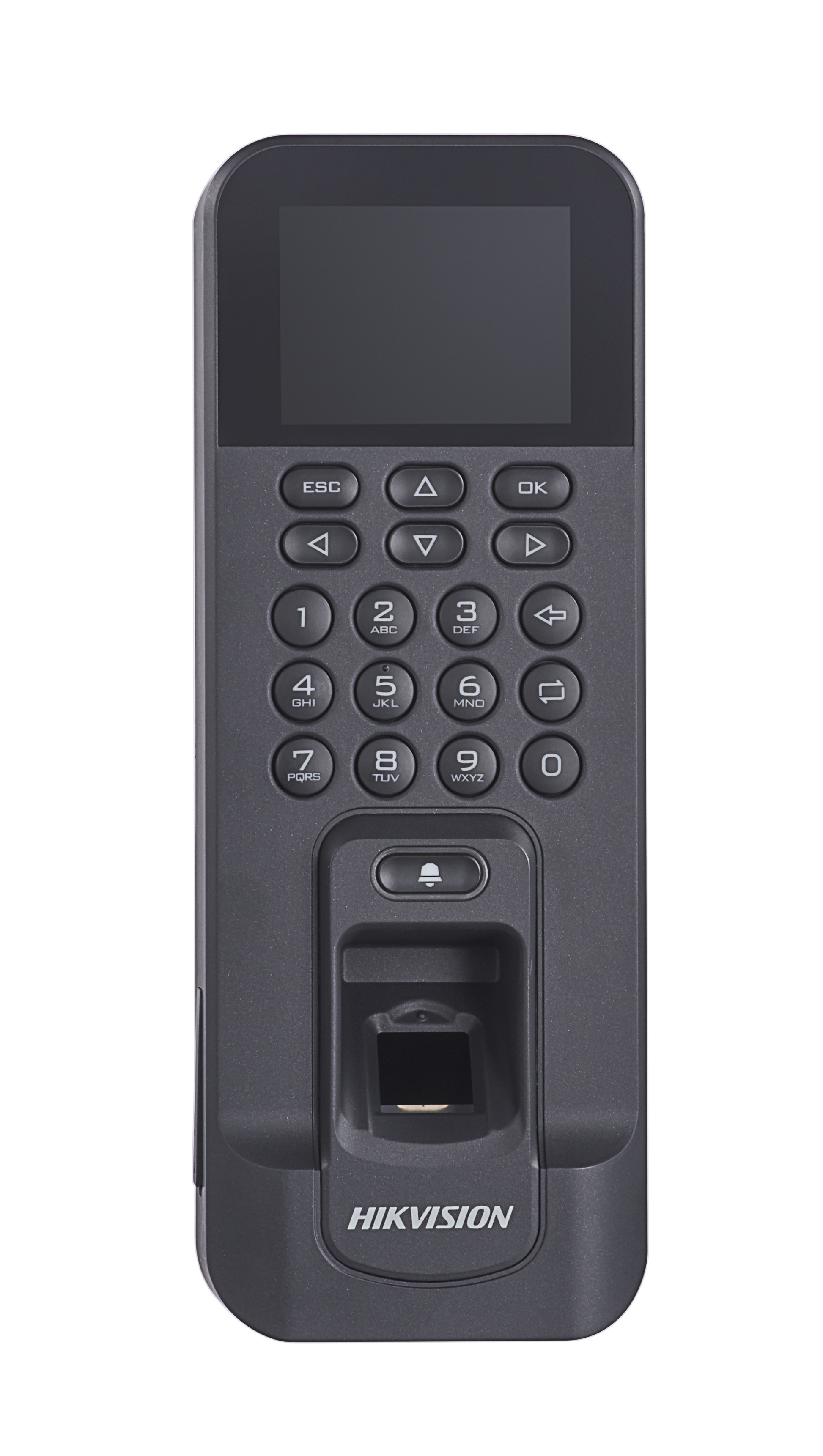

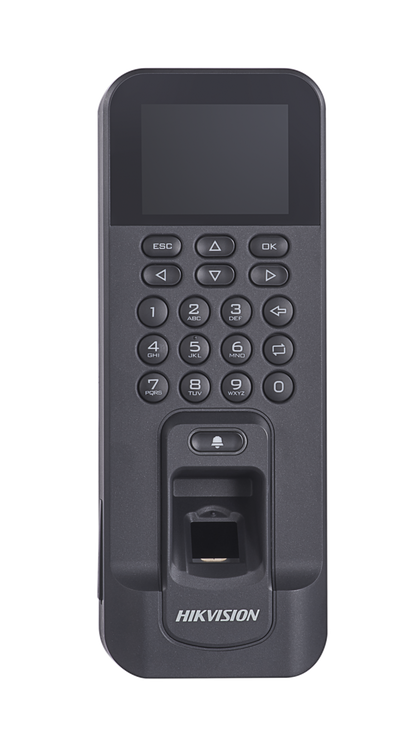

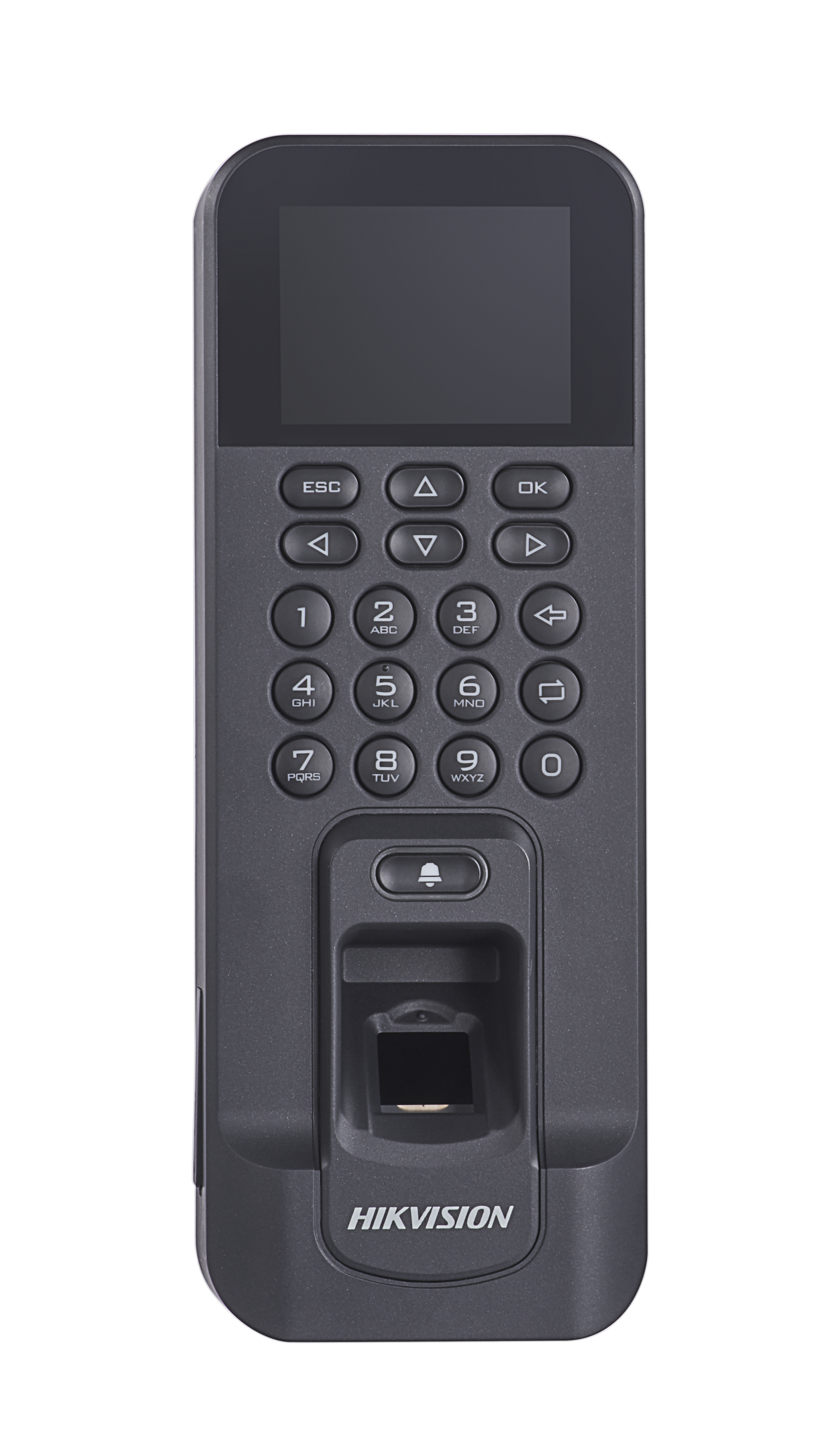

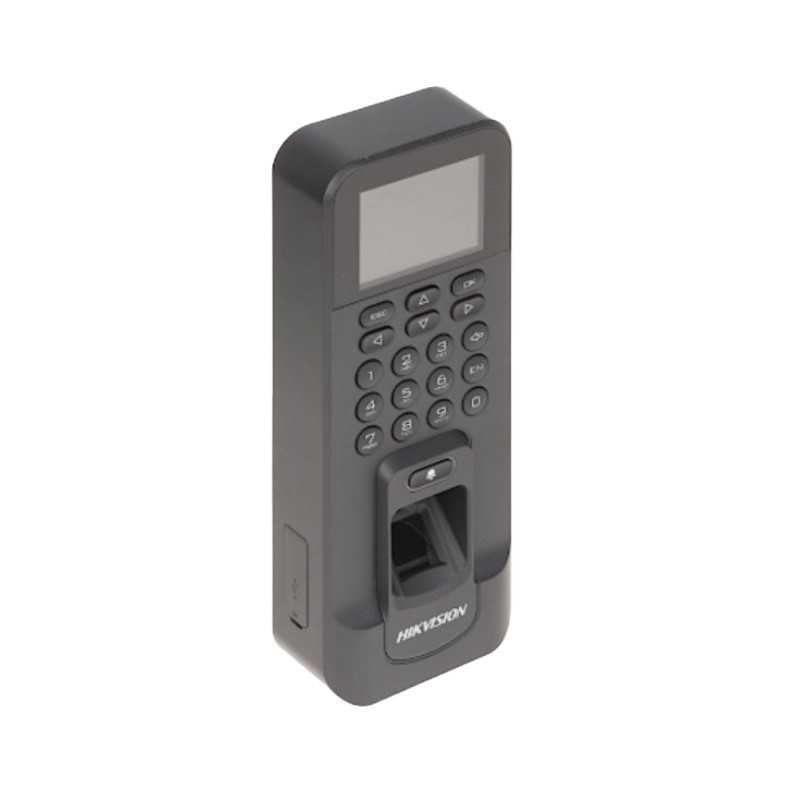

Hikvision Access Fingerprint Card Reader Terminal

K1T804A pro series fingerprint terminal.

Features

• Integrated management of access control and the time and attendance functions
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• Alarm input and output interface


Specifications

• Screen size 2.4-inch
• LCD-TFT display screen
• Resolution 320 × 240
• Audio output 1 loudspeaker, 1 buzzer
• Wired network TCP/IP, 10/100Mbps, self-adaptive
• Wi-Fi Support
• RS-485

• Wiegand

• Lock control

• Exit button

• Door contact input

• Alarm input

• Alarm output

• TAMPER

• USB

• Card capacity 3000
• Fingerprint capacity 3000
• Event capacity 100 000
• Card Type M1 card
• Card reading distance 0 to 4.5 cm
• Optical fingerprint module
• Power supply 12VDC/1A
• Dimensions 205 × 76.5 × 37mm

DS-K1T804AMF
