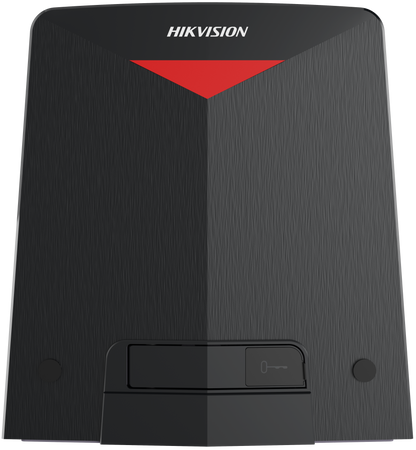

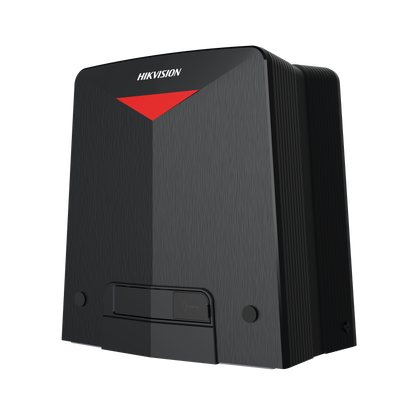

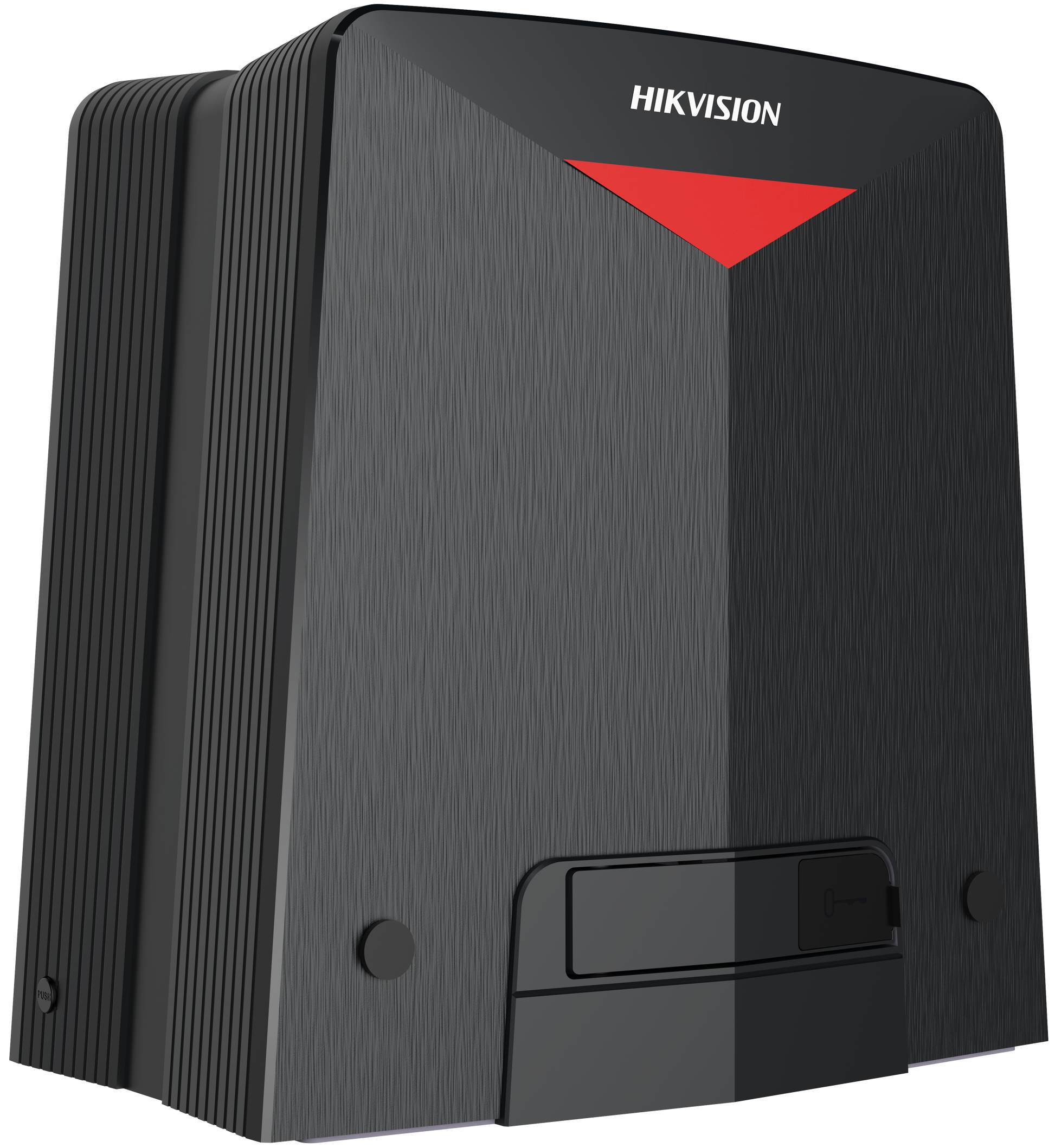

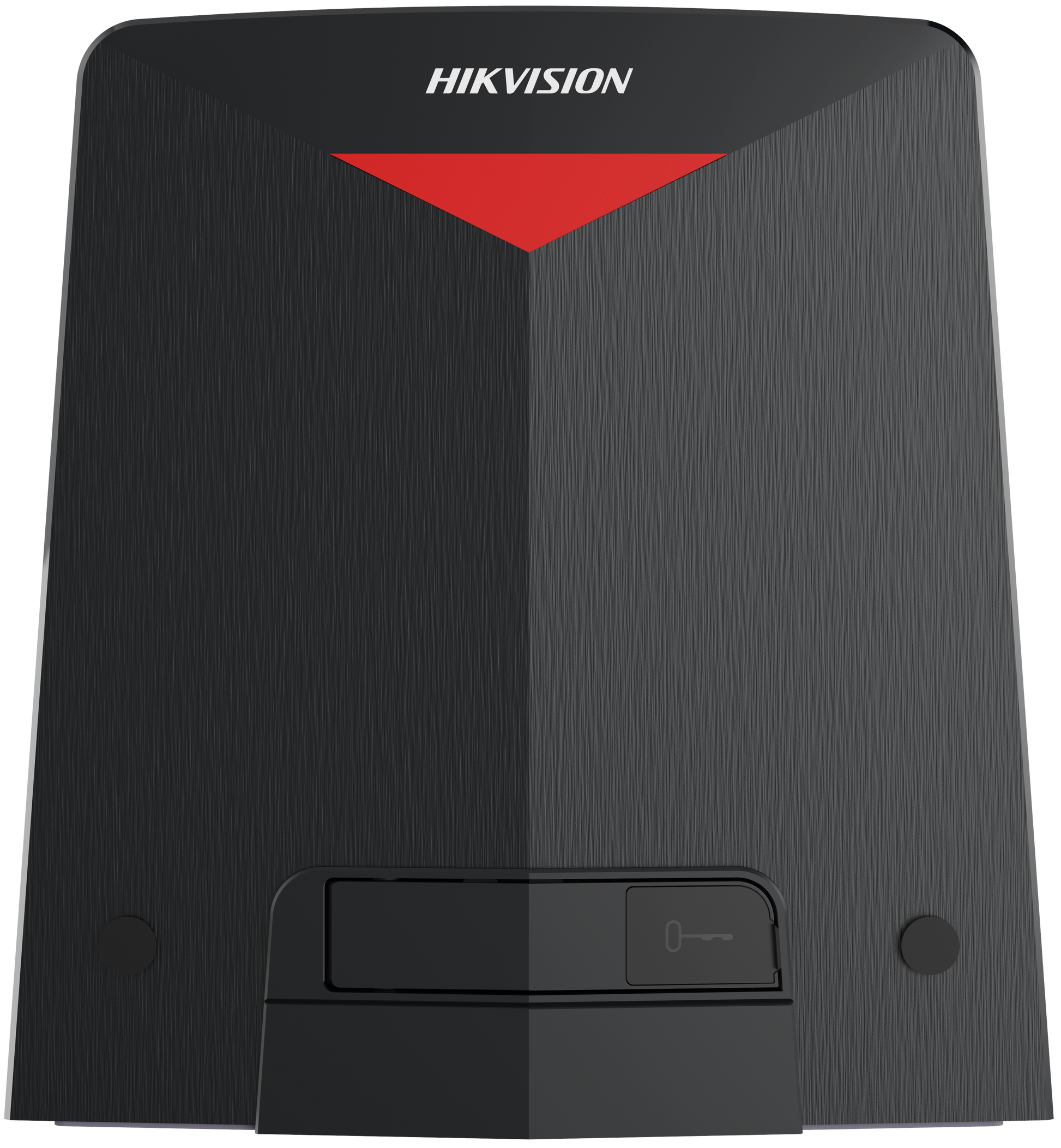

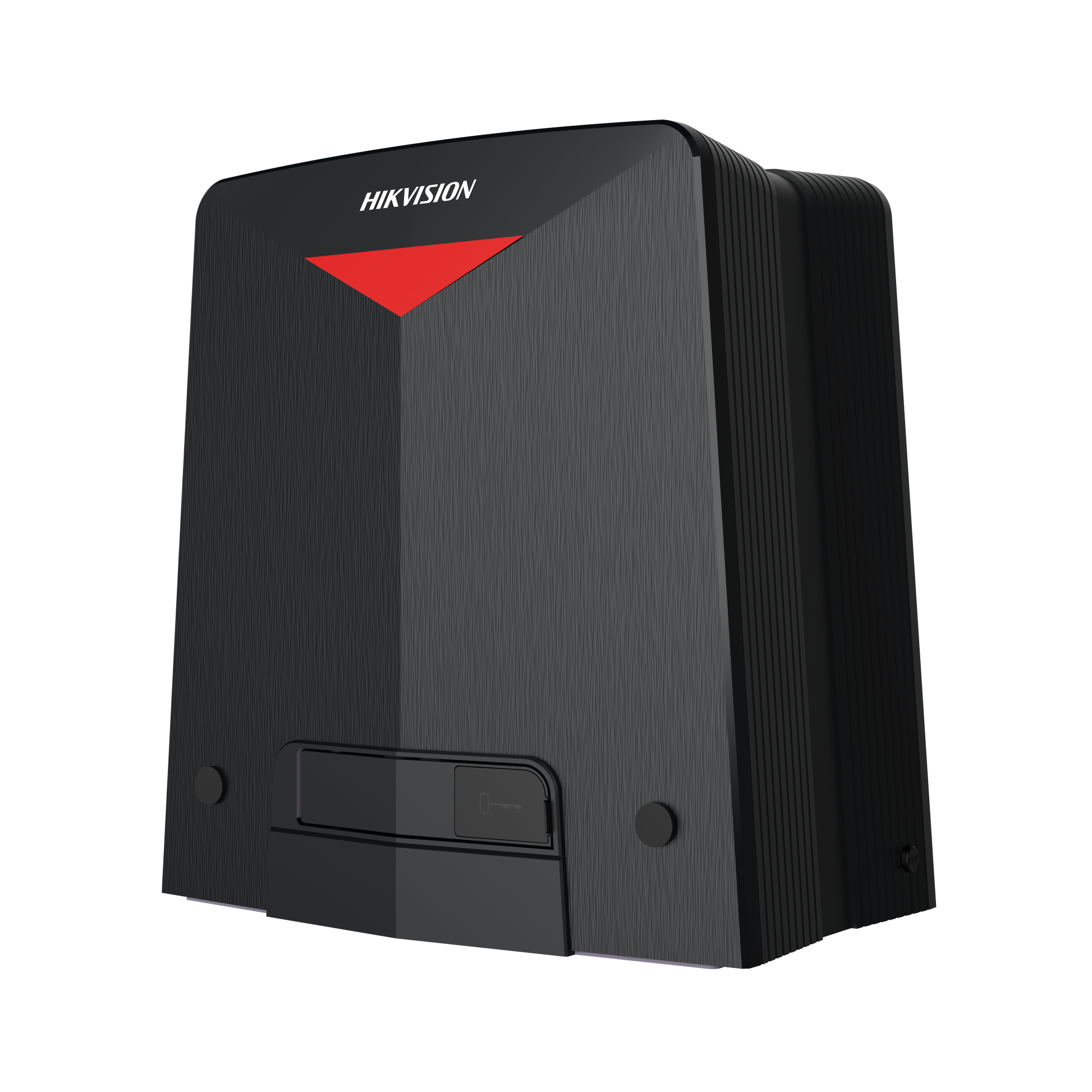

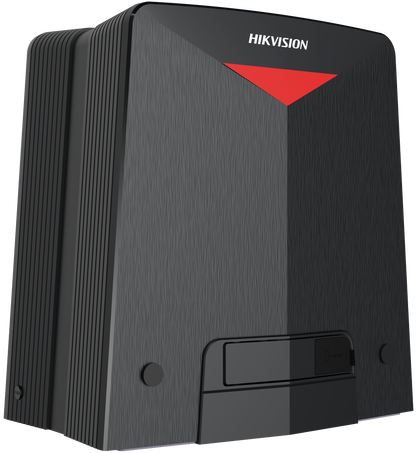

Hikvision 600kg Gate Motor Includes 2xRemotes & Baseplate

Hikvision sliding gate opener for gates weighing up to 600kg. Built-in Wi-Fi interface.

Features

• Support built-in WIFI and LAN interfaces, easy for remote management system.
• Battery-driven, max open speed at 0.6 m/second, @ 17kgf (2 x 12V 7AH batteries are essential for normal operation, max dimension (W × H × D): 151mm x 94mm x 65mm)
• Support Mobile web configuration with AP mode by a simple touch on NFC tags.
• Support component status self- diagnostics
• Support built-in access system, could achieve the functions of opening doors via PIN code, card, and QR code with external AC card reader
• The system supports linkage function, enabling integrated applications with intercom, alarm, and access control systems
• The product supports low-power mode, which allows for excellent power consumption management after a power outage, achieving longer standby times and more door opening and closing cycles

Specification

• Motor  Brush motor

• MCBF  ≥ 0.8 million times

• Gate mass - maximum  600kg

• Open speed  Up to 0.6 m/second, @17kgf

• Battery  12V 7AH x 2 (Not included in the box, purchase separately)

• Motor Push Force - Starting  30kgf

• Motor Push Force - Rated  17kgf

• Gate Length - Maximum  20m

• Remote Keyfob Capacity 3,000

• Network

  • Wired network

  • 10/100 Mbps self-adaptive Ethernet

  • Wi-Fi Support

  • 4G (Optional)

• Interface

  • Network interface  1

  • Exit button  2

  • Alarm output  2

  • TAMPER  1

  • RS-485  1

  • Case input  2

  • IR connection  2

  • Emergency Input  1

  • Power Supply Output  12V/0.2A x 2

• Hardware

  • Buzzer Support

  • Expansion screw M12 X 150mm

• Capacity

  • Card capacity 250,000

  • Event capacity 500,000

• Function

  • Configuration via PC Web Support

  • Configuration via mobile Web Support

  • Hik-Connect Support

  • Multi-factor authentication Support AP mode Support

  • Communication protocol TCP/IP,ISAPI

  • Keyfob Support, 868 MHz, within 200 m (Open area)

  • Pedestrian Mode Support

  • Reopen Support

  • Soft Start & Stop Support

  • Flashing light Support

• General

• Power consumption

  • Standby: 5W

  • Working: 280W

  • Peak: 400W

• Power supply method  Power supply: 100 to 240 VAC~, 50/60 Hz, Rated current: 0.8A, Peak current: 4A

• Working temperature  -15 °C to 55 °C (5 °F to 131 °F)

• Working humidity  10% to 95% (No condensing)

• Protective level  IPX5

• Dimensions

  • Without package: 309.72 × 225.66 × 330mm (12.2" × 8.9\" × 13.0\")

  • With package: 360 × 275 × 450mm (14.17 × 10.83\" × 17.72\")"

  • Net: 7.45kg (16.3lb)

  • Gross: 10kg (22lb)

Kit Includes

• Gate Operator
• Remotes
• Excludes Batteries (7AH x 2)

DS-K3GL606WX-WE
