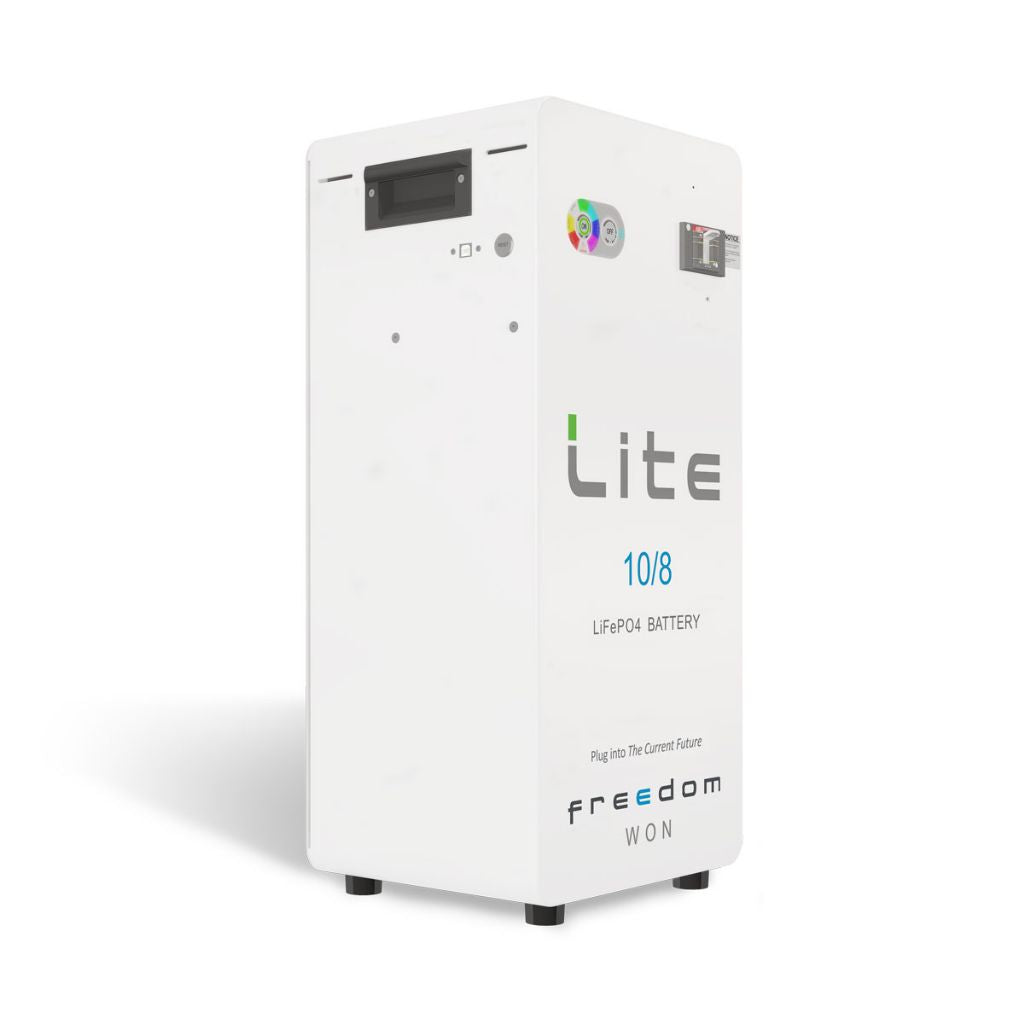

Freedom Lite Home 10/8kWh 52V LiFePO4 Battery

Freedom Lite Home Energy Storage - 10/8kWh 52V LiFePO4 Battery.

Features

• Total Energy Capacity 10kWh

• Energy, 80% DoD 8kWh

• Energy, 90% DoD 9kWh

• Current Capacity 200AH

• Max & Cont. Charge Current 200A

• Max & Cont. Charge Power 10kW

• Max/Cont. Discharge Current 300/240A

• Max/Cont. Discharge Power 15/12kW

• Max Recommended Inverter Total Rated Power (cont.) 10kVA

• Nominal Voltage 52V (to suit 48V Inverters) min 47V, max 56V

• Weight 89kg

• Dimensions on or against wall (HxWxD)    745 x 340 x 290mm

• Enclosure    Aluminium – powder coated white front, rated for indoor use

• DC Connection - Integrated Cables [no. per electrode]: 1x 50mm²

• Control Interface:
  • RJ45 Socket x 2 – CAN Bus for Interfacing with Compatible Inverters and System Controllers, and communication for the connection of parallel batteries – note that parallel batteries must all be of the same model
• Protection:
  • Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Includes overcurrent, cell under and over voltage, temperature, weak cell detection, minimum SOC control

• Human Interface:
  • State of Charge Display (0 to 100%), Error light, Error Reset Button, Serial RS232 Plug for Programming (note the Lite 80/56 has a CAN port for programming and not a serial port), WiFi remote monitoring (optional accessory)

• Warranty:
  • 10 years or 4 000 cycles for average 80% DoD, and max 90% DoD

• Service Life:
  • >16 years (>5 500 cycles) expected life at 80% DoD (1), >20 years (>7 500 cycles) at 50% DoD

• Essential Accessories (Note that for connecting the battery to a PC a special adapter is required):

  • Lite 5/4 up to Lite 60/42 - Serial RS232 to USB adapter (must be the brand supplied by Freedom Won)

• Lite 80/56 - CANdapter (available from Freedom Won) (supplied with battery)

• CAN Bus Termination Resistor – one required per battery, available from Freedom Won (not included with battery)


FW-10/8-LV
