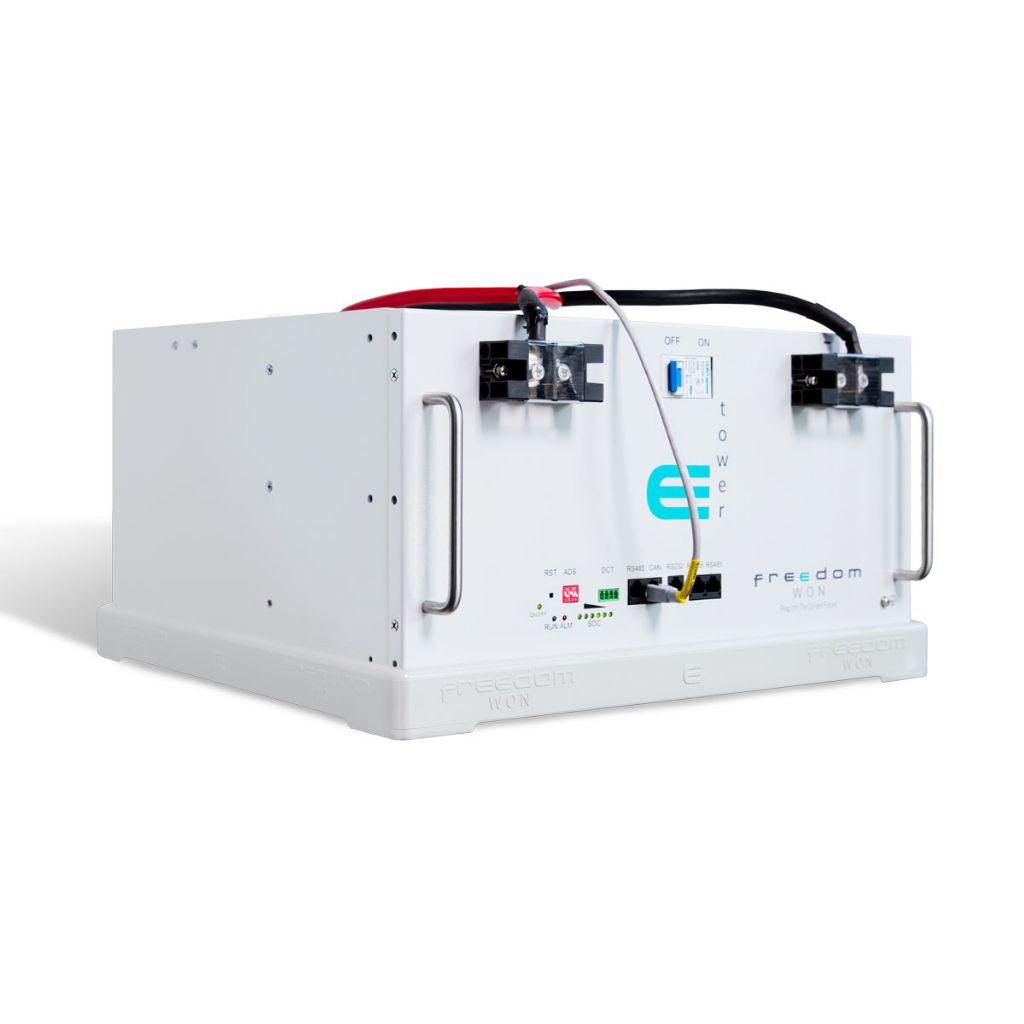

Freedom 5kW 52V Won eTower e5000 Lithium Battery Including Accessories

10.65KWH 51.2V Lithium Ion battery pack. When you look at lithium-ion batteries, you are looking at the latest development for storing solar power.

Features

• Total Energy Capacity 5kWh

• Energy, 80% DoD 4kWh

• Energy, 90% DoD 4.5kWh

• Current Capacity 100AH

• Max Charge Current 80A
• Cont. Charge Current 70A

• Max Charge Power 4,2kW
• Cont. Charge Power 3,6kW

• Max Discharge Current  100A
• Cont. Discharge Current 90A

• Max Discharge Power 5.2kW
• Cont. Discharge Power 4.7kW

• Max Recommended Inverter Total Rated Power (cont.) 5kVA

• Nominal Voltage 52V, to suit 48V Inverters, min 47V, max 56V
  *do not connect modules in series - (for high voltage batteries, refer to Freedom Won LiTE HV ranges)

• Combined weight 45V

• Dimensions
  • Single unit with pedestal: 247x460x463mm

  • Single unit without pedestal: 222x440x443mm

• Module height equates to 5U (U = standard 19” rack unit)

FW-E5000-LV
