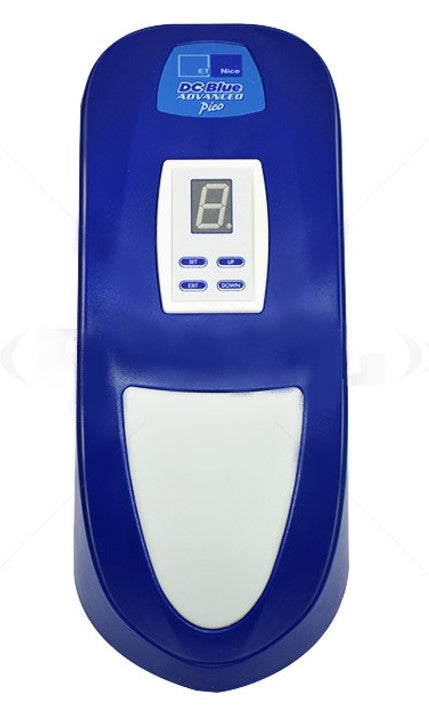

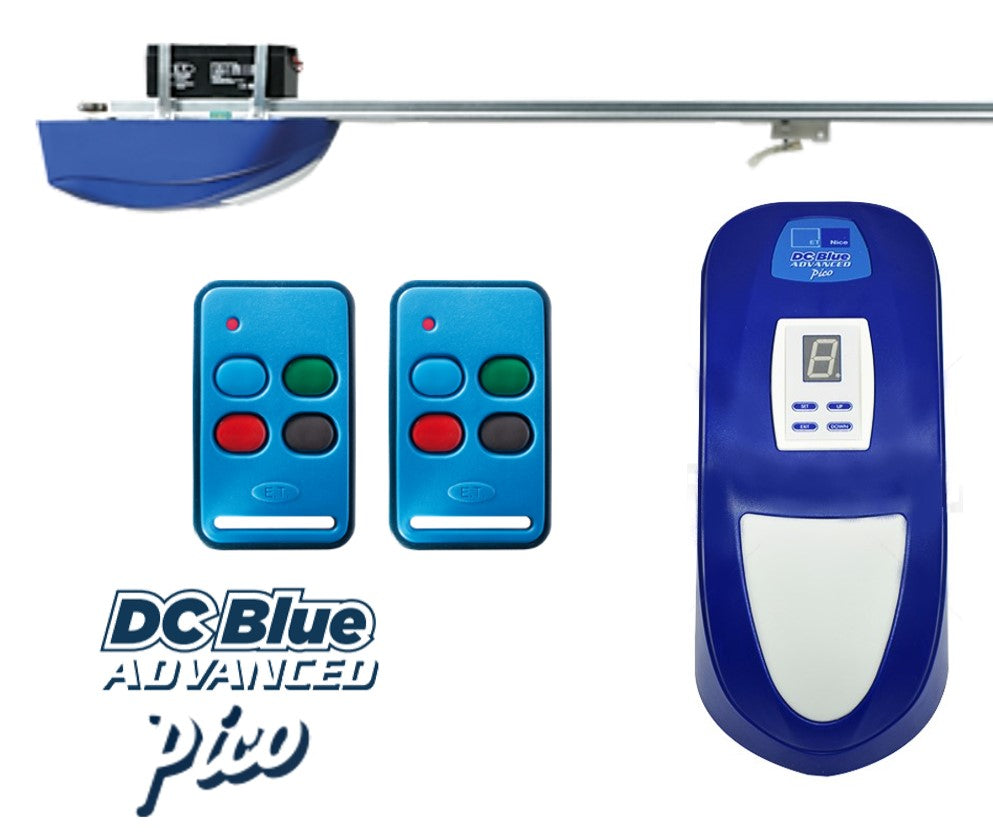

ET DC Blue Advanced Pico 3.7m Sectional Garage Door Motor Kit

• LED programming and fault display
• LED courtesy light
• INTELLIGENT door load profiling for added safety and control
• Powerful motor
• Safety beam input
• Adjustable electronic limits and force control
• Selectable automatic closing
• Built-in ET-Blu Mix® enhanced rolling code receiver - Uncrackable, Unhackable
• Audible diagnostics
• Electronic lock-out
• Optional external status, light and lock control
• Chain Kit

Specifications

• Input voltage: 220-240 VAC, 50Hz-60Hz
• Peak power consumption 100W @ (220 -240VAC)
• Electric motor supply: 24VDC. Not battery dependent
• Maximum duty cycle with mains present: 50 full cycles per 24h @ max rate of 5 per hour
• Number of operations on battery reserve without AC present: 100 within 24 hours (From a fully charged and healthy 3.5Ah battery)
• Maximum door size: 10m²
• Applicable door types: Spring balanced, Sectional overhead and 1-piece tip-up doors
• Maximum running distance: 3m
• Maximum pulling force prior to safety governing: 600N
• Rated running load: 25kgf
• Rated speed: 8m/min
• Built-in receiver frequency: 433.92MHz
• Built-in receiver compatible formats: ET-Blu Mix © and ET Blue
• Built-in receiver memory capacity: 35 button
• Built-in receiver channels: 2CH (BT, Courtesy light). Holiday Lockout is with BT push and hold

02125-100
