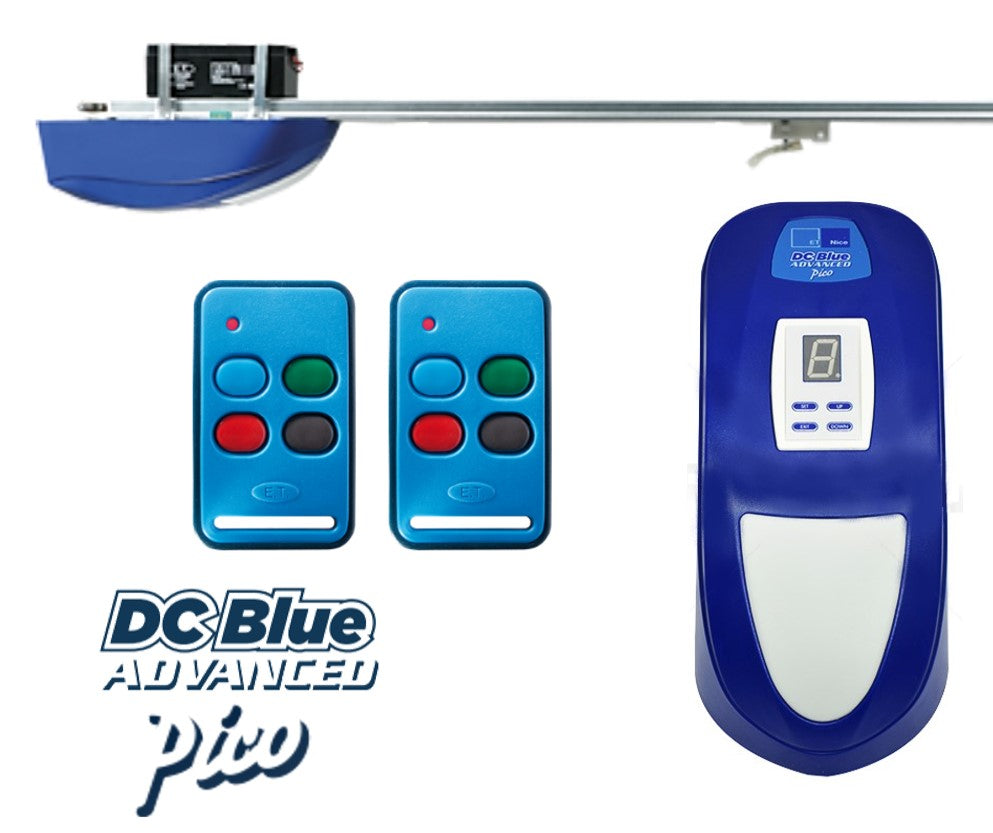

ET DC Blue Advanced Pico 3.2m Sectional Garage Door Motor Kit

Save 12%
Original price R 3,357.76
Current price R 2,950.90

Designed for residential sectional overhead and trackless tip-up garage doors of up to 10m2. Sleek, modern design, simple to program and fault find with 7 segment LED Display. DC Blue Advanced Pico Tip-Up And Sectional Garage Door Motor Kit includes 3.2m rail,  two 4 Button remotes and 24V 3.5Ah Battery.

  • Input voltage: 220-240 VAC, 50Hz-60Hz
  • Electric motor supply: 24VDC. Not battery dependent
  • LED programming and fault display
  • LED courtesy light
  • Powerful motor
  • Safety beam input
  • Adjustable electronic limits and force control
  • Selectable automatic closing
  • Built-in ET-Blu Mix® enhanced rolling code receiver - Uncrackable, Unhackable
  • Audible diagnostics
  • Built-in receiver channels: 2CH (BT, Courtesy light). Holiday Lockout is with BT push and hold
  • Optional external status, light and lock control
  • Maximum duty cycle with mains present: 50 full cycles per 24h @ max rate of 5 per hour
  • Number of operations on battery reserve without AC present: 100 within 24 hours (From a fully charged and healthy 3.5Ah battery)
  • Maximum door size: 10m²
  • Applicable door types: Spring balanced, Sectional overhead and 1-piece tip-up doors
  • Maximum running distance: 3m
  • Maximum pulling force prior to safety governing: 600N
  • Rated running load: 25kgf
  • Rated speed: 8m/min
  • Built-in receiver frequency: 433.92MHz
  • Built-in receiver compatible formats: ET-Blu Mix © and ET Blue
  • Built-in receiver memory capacity: 35 button
  • Chain Kit


How To Add a Remote Transmitter to a DC Blue Advanced Garage Door Operator
