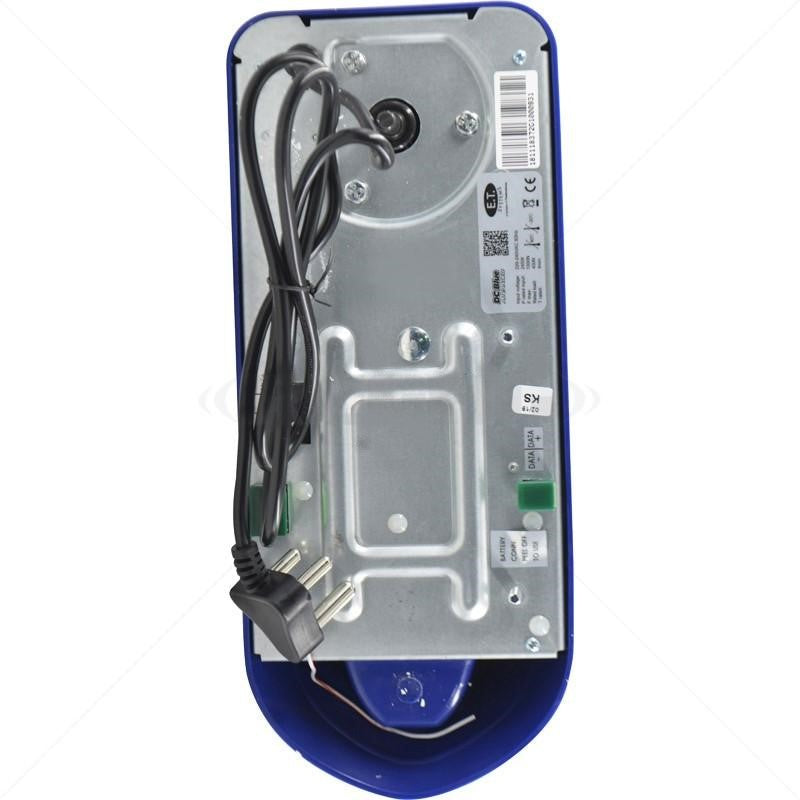

ET DC Blue Advanced 3.7m Caravan Garage Door Motor Kit

• Electric motor supply: 24VDC. Not battery dependent
• LED programming and fault display
• LED courtesy light
• Input voltage: 220-240 VAC, 50Hz-60Hz
• Peak power consumption 120W @ (220 -240VAC)
• Maximum pulling force prior to safety governing: 1000N
• Rated running load: 40kgf
• Rated speed: 8m/min
• Maximum door size: 15m²
• Maximum running distance: 3m
• Number of operations on battery reserve without AC present: 100 within 24 hours (From a fully charged and healthy 3.5Ah battery)
• Safety beam input
• Built-in receiver frequency: 433.92MHz
• Adjustable electronic limits and force control
• Selectable automatic closing
• Built-in ET-Blu Mix® enhanced rolling code receiver - Uncrackable, Unhackable
• Audible diagnostics
• Electronic lock-out
• Optional external status, light and lock control
• Applicable door types: Spring balanced, Sectional overhead and 1-piece tip-up doors
• Chain/Belt Kit

01606-000
