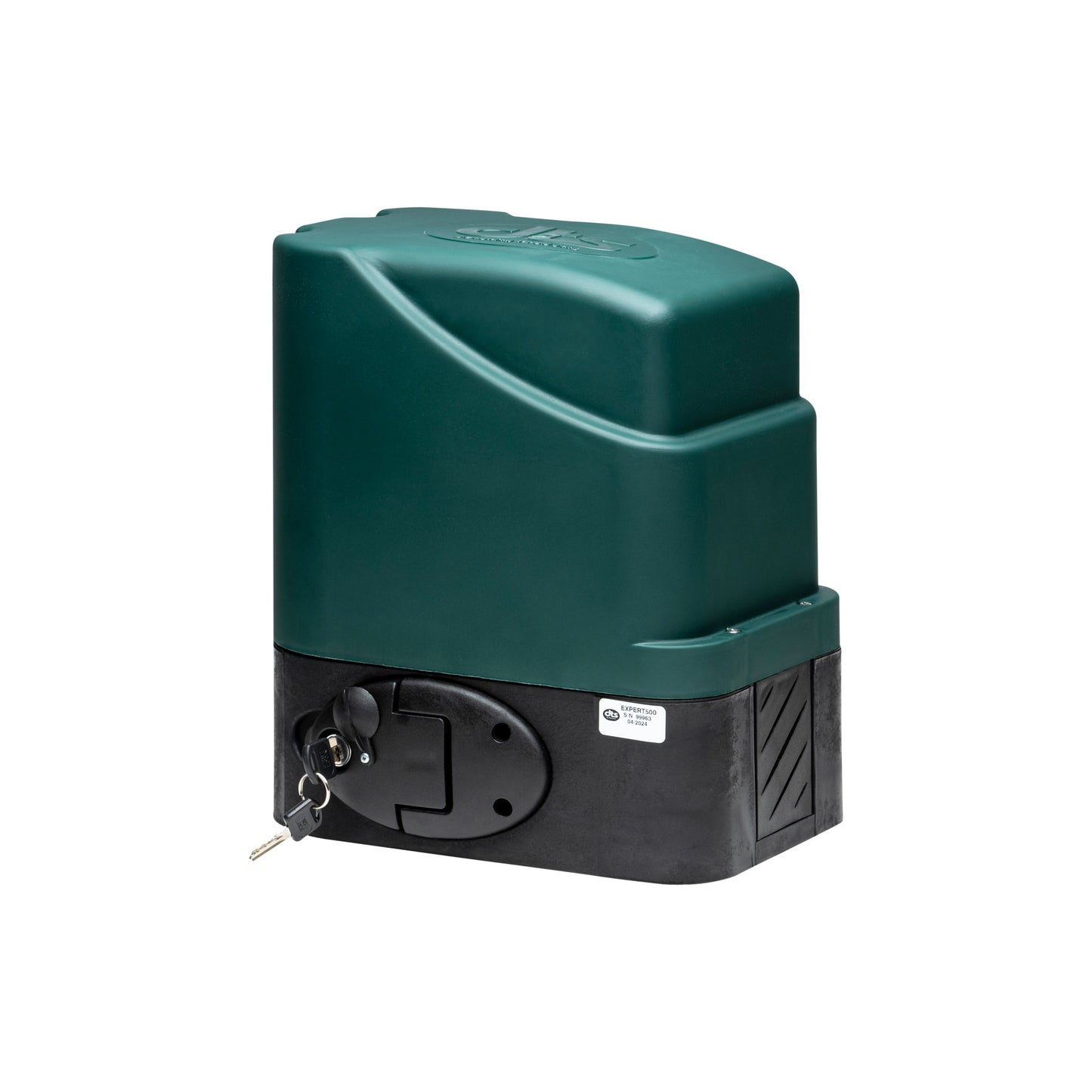

DTS Slider Kit Expert 500 M/Limit Sliding Gate Motor - No Rack

DTS Elite 500 slider kit. High speed 12V DC high torque gate motor for sliding gates.

Features

• Slides up to 500/600 KG gate

• Oil filled gearbox

• Switch mode charging circuit

• On board battery back-up

• Key release of pinion

• Available in spring limit or mag limit

• Soft start and stop control

• PCB designed for South African conditions.

• User friendly programming

• Dual channel on board rolling code reciever

• Gate alarm function / courtesy light

• Built in surge protection.

• Auto close time adjustable

• Selectable condominium

• Pedestrian opening fully programming.

• Selectable gate direction setting

• Anti crush mechanism

• Full spares and service backup

• Beams - normally closed

Specifications

• Rated gate mass 500 / 600KG

• Primary power supply to gate 230VAC 50/60HZ

• Peak power consumption at gate 150W (1W STANDBY)

• Electrical class CLASS I

• Motor voltage 12V DC

• Motor current limiting 25A

• Rated duty cycle: 6 Operations Per Hour

• Gate speed 22 / 30M/MIN

• Rated load 250 N

• Operating temperature range -10°C - +45 °C

• Auxiliary supply output 12VDC

• Built in battery charger YES

• Receiver format COMPATABLE WITH DTS TX5 OCTO REMOTES

• Receiver frequency 433.92MHZ

• Receiver channels 2CH (GATE, PED)

• Receiver memory capacity 500 USERS

• All users can be allowed control of all channels. YES

• Ingress protection IPX4


512GMOTB
