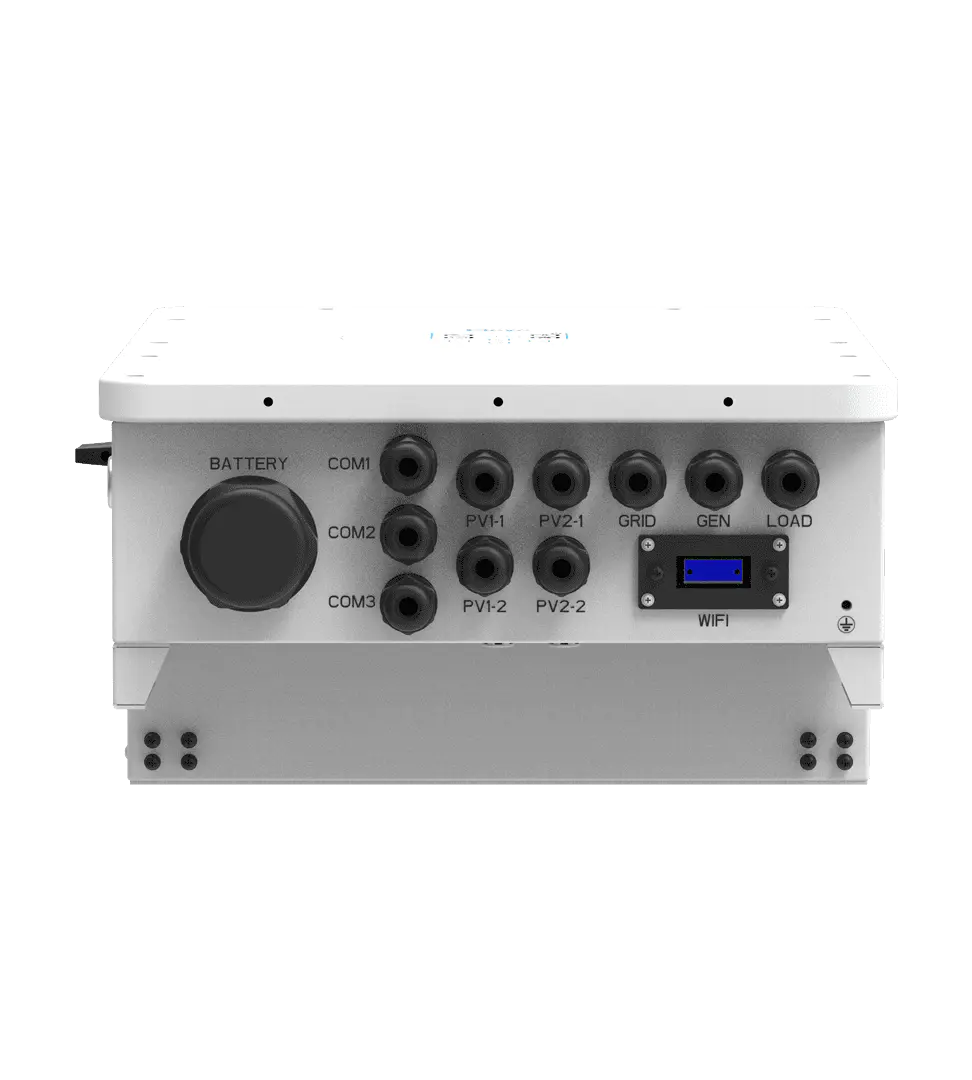

Deye 8kW 48V MPPT Hybrid Inverter
Deye 8kW 48V MPPT Hybrid Inverter
Regular price
R 41,066.67
Regular price
Sale price
R 41,066.67
Unit price
/
per
A single-phase low voltage hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.
Features
- Inputs:
- PV solar
- AC grid power
- Batteries
- Output voltage – 120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase)
- Continuous power – 8000W
- Backup power – 8000W
- DC – 48V
- Battery charger – 190A
- Transfer time <= 10ms
- Battery charger adjustable for battery bank size and type
- Can charge Lead Acid and Li-ion batteries
- Li-ion battery charging self-adapts to BMS
- Solar Input
- Max power input – 10400W
- Max V DC input – 370V (100V~500V)
- Max current input – 18A + 18A
- MPPTs – 2
- MPPT Range – 125~425V
- Multi-core processor design and advanced MPPT control
- High reliability and response speed
- Programmable export
- Works parallel on or off-grid
- Single or 3-phase operation
- Multiple operating modes:
- Battery only
- Grid-tie only
- Hybrid
- Off-grid
- Additional features
- AC couple – For additional PV input
- 6 stages time of use settings
- IP65
- Dimensions
- (W) Width: 420mm
- (H) Height: 233mm
- (L) Length: 680mm
- Weight (kg) Weight: 32kg
DEYE8KW1P
