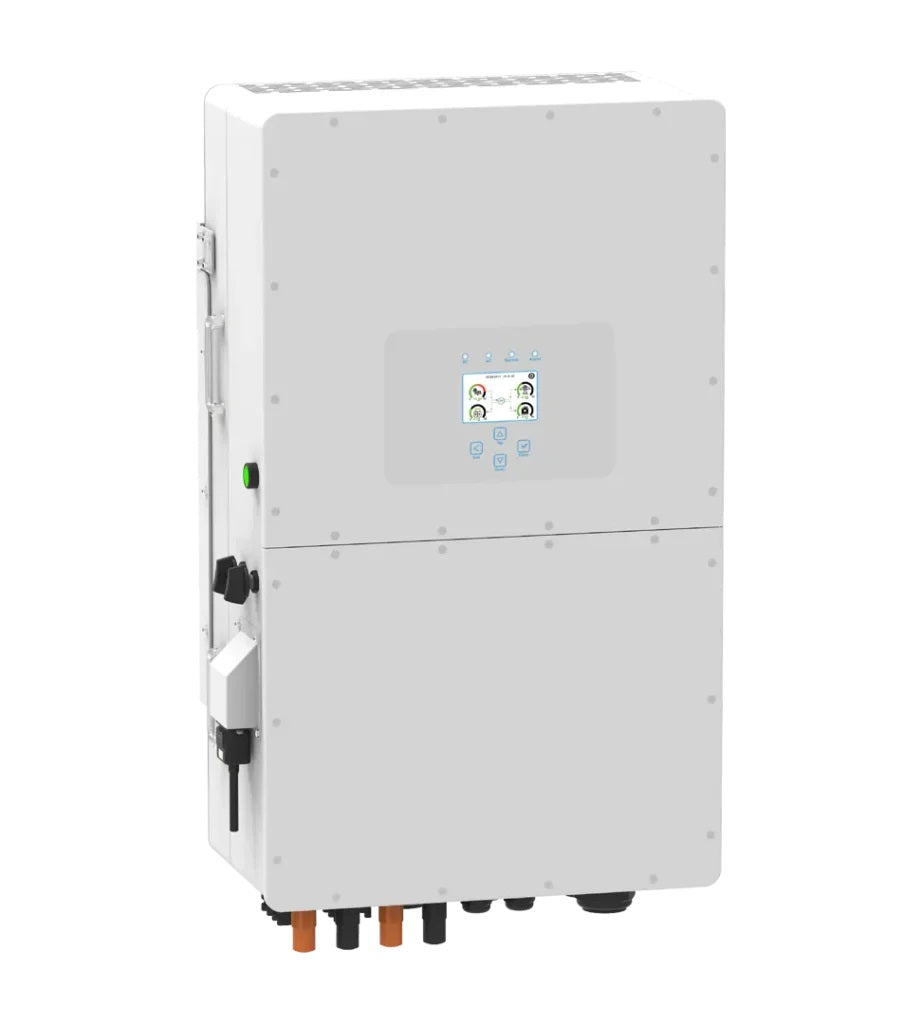

Deye 50kW 3 Phase Hybrid Inverter

R 143,366.67

Deye 50kW Hybrid Inverter is a 3-phase unbalanced DC/AC inverter that can be used in off-grid applications. This Deye 50kW hybrid inverter also includes a remote management platform, so you can monitor and configure PV plant parameters remotely using a web browser. A three-phase inverter or 3 phase inverter solar takes DC electricity from your solar panels and uses it to create AC electricity.

The Deye SUN-50K-SG01HP3-EU-BM4,  3-phase High Voltage Battery Inverter is designed for residential and commercial customers who want to take advantage of solar energy PV plant controllers. It supports unbalanced three-phase output, making it possible for users to use a single-phase 220V, 240V or even 480V power grid as the main power source. The Deye 50kW Hybrid Inverter 3-Phase also has remote shutdown functionality and smart monitoring platform that allows for parameters to be set and firmware updates to be done remotely, making PV plant operation easier. The 50kW Deye 3-phase hybrid inverter is a great choice for anyone looking to install a solar home energy system. It’s efficient, and it has low power loss.


  • NRS (National Regulation Standards) Approved
  • 3 Phase, high voltage
  • Full Hybrid
  • Supports three phase unbalanced output
  • 2 MPPTs
  • Max DC Input: 50kW
  • Integrated BMS (Battery Management System)
  • UPS Function
  • Fan-less – Low noise
  • 99.9% Efficiency
  • Unique Smart Load application
  • Grid peak shaving function
  • Support storing energy from diesel generator
  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • DC coupled and AC coupled to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
  • Max. charging/discharging current of 100A
  • 6 time periods for battery charging/discharging
  • Dimensions 527 × 894 × 294 mm
  • Weight 75kg
  • Battery Input
    • Battery Type: Li-Ion
    • Battery Voltage Range: 160VDC to 800VDC
    • Max Charging Current: 50A + 50A
    • Max Discharging Current: 50A + 50A
    • Number of Battery Input: 2
    • Charging Strategy for Li-Ion Battery: Self-adaption to BMS
  • PV String Input
    • Min DC Input Power: 65000W
    •  Min DC Input Voltage: 1000VDC
    • Startup Voltage: 180VDC
    • MPPT Voltage Range: 150VDC to 850VDC
    • Full Load DC Voltage Range: 450VDC to 850VDC
    • Rated DC Input Voltage: 600VDC
    • PV Input Current: 36A + 36A + 36A + 36A
    • Maximum PV (Isc): 55A + 55A + 55A + 55A
    • No of MPP Trackers: 4
    • Strings per MPP Tracker: 2
  • AC Output
    • Rated AC Output and UPS Power: 50000W
    • Maximum AC Output Power: 55000W
    • AC Output Rated Current: 75.8A / 72.5A
    •  AC Current: 83.3A Maximum
    • Continuous AC Passthrough: 150A Maximum
    • Peak Power (Off Grid): 1.5 times of rated Power, 10S
    • Generator Input: 75.8A
    • Smart Load: 150A
    • AC Couple Current: 75.8A
    • Power Factor: 0.8 Leading to 0.8 Lagging
    • Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380VAC 230/400VAC.
    • Grid Type: Three Phase
