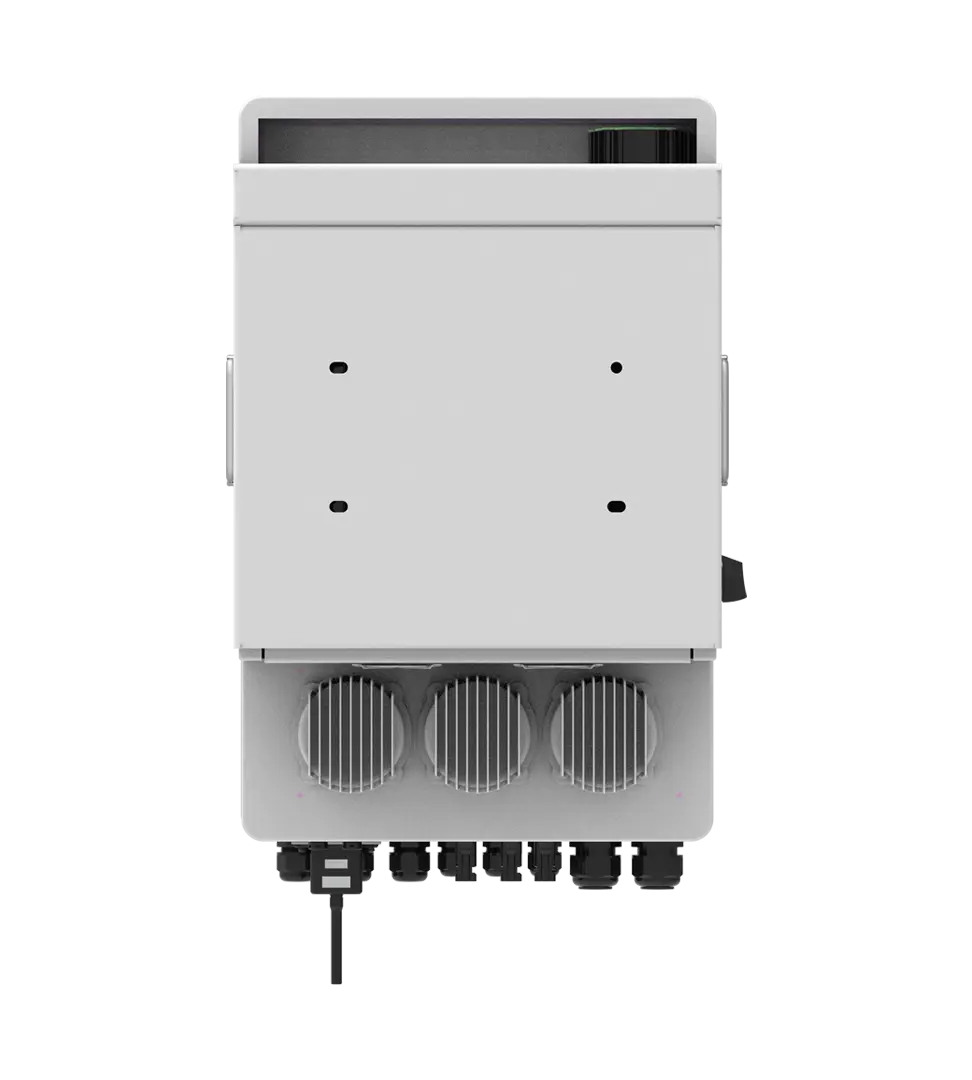

Deye 12kW 48V MPPT Hybrid Inverter

Deye 12kW 48V MPPT Hybrid Inverter

R 58,000.00
R 58,000.00
Sale Sold out
Taxes included.

Brand new three phase hybrid inverter with low battery voltage - 48V - ensuring the system is safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

 Features

  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 240A
  • Max.10pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Supports three phase unbalanced output
  • Unique Smart Load application and Grid peak shaving function

Specification

  • Battery Input Data
    • Battery Type: Lead-acid or Li-lon
    • Battery Voltage Range: 40~60V
    • Max. Charging Current:  240A
    • Max. Discharging Current: 240A
  • PV String Input Data
    • Max. DC Input Power: 15600W
    • Rated PV Input Voltage: 550 (160~800)V
  • AC Output Data
    • Rated AC Output and UPS Power: 12000W
    • Max. AC Output Power: 13200W
    • AC Output Rated Current: 18.2A/17.4A
    • AC Output Rated Current: 18.2A/17.4A
    • Max. AC Current: 27.3A/26.1A
  • Power Factor 0.8 leading to 0.8 lagging
  • Noise (dB): <45 dB
  • Weight 33.6kg
  • Size (WxHxD) 422 x 699.3 x 279mm
  • Protection Degree IP65
  • Installation Style: Wall Mount

DEYE12KW3P
