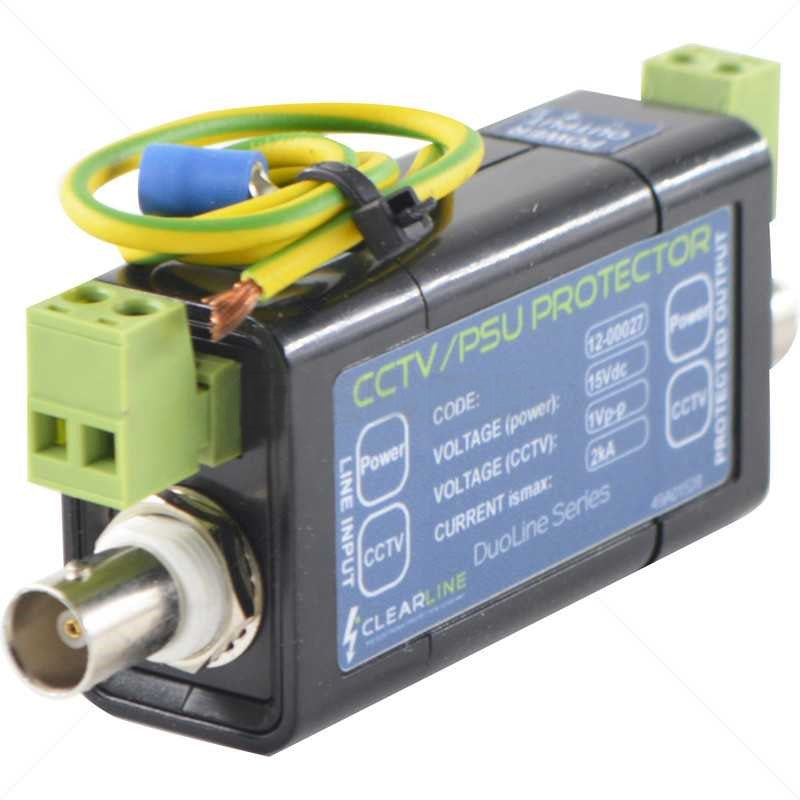

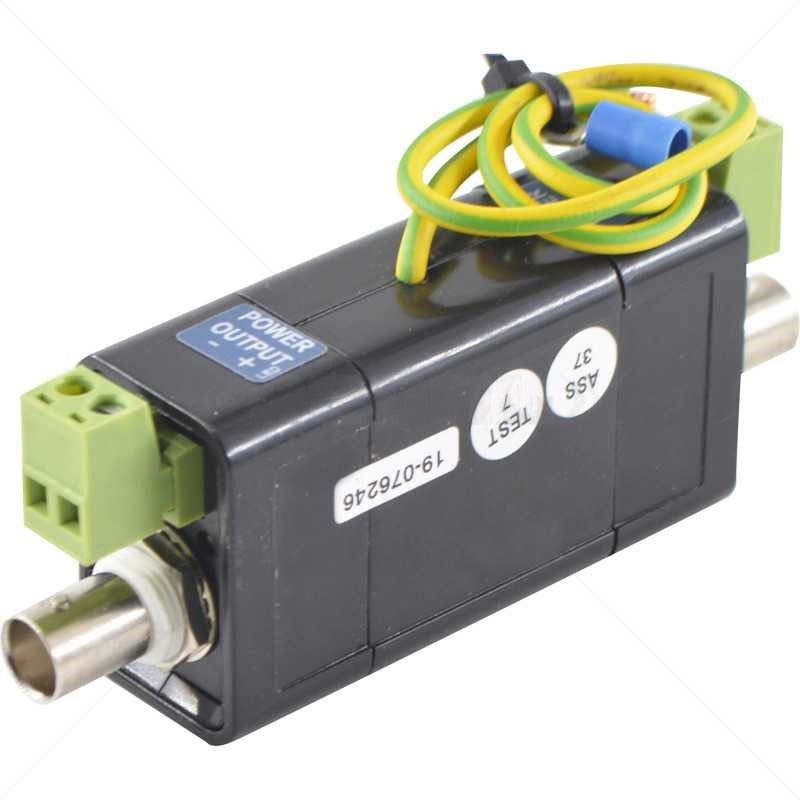

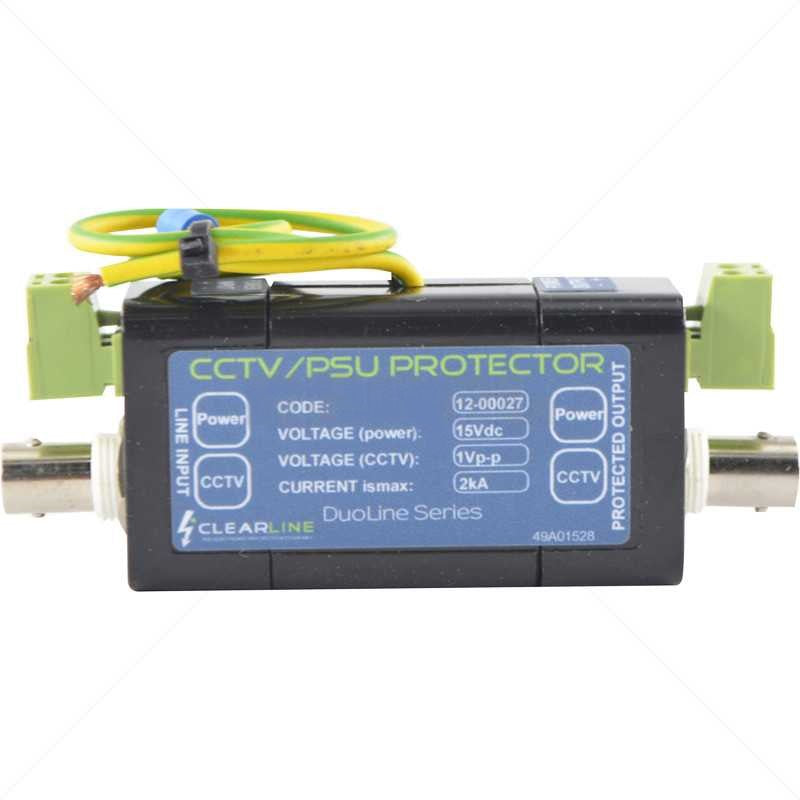

Clearline CCTV Camera Power and Video Surge Protector

CCTV Signal and PSU Protector. Coaxial protection for high speed data transmission lines. Suitable for CCTV applications. They protect both the CCTV signal as well as the DC power supply voltage. These devices exhibit negligible insertion loss and are fitted in line at the equipment connection.

Features

• Maximum Operating Voltage: 1V p-p
• Connectors BNC F-FEasy installation
• Low insertion loss
• Failsafe protection
• Combined CCTV + Power
• Supply protection
• Power Supply
  • Max PSU voltage: 15VDC
  • Max surge current(common mode) voltage at 1A: 20V
  • Max surge current rating (differential mode: >250A (8/20)

12-00027
