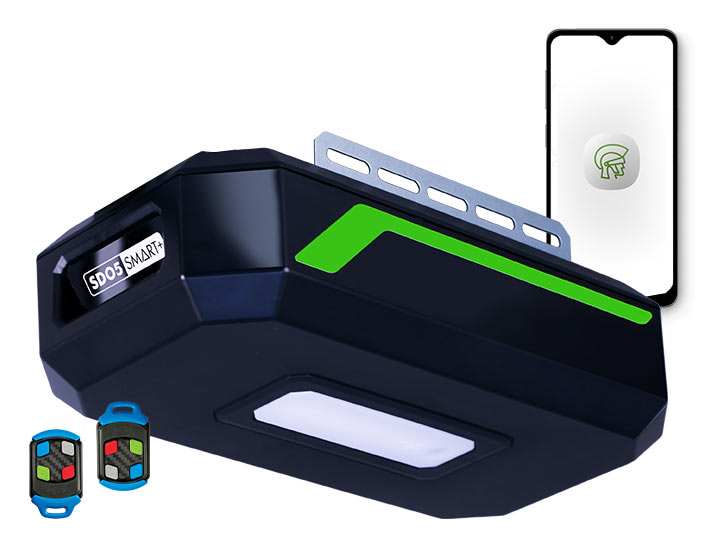

Centurion SDO5 Smart T12 Garage Door Operator Tip-up Kit with Battery

The SDO5 SMΔRT+ brings SMΔRT and remote access to your garage door motor, built for garage doors where reliable daily access and SMΔRTer control matter. Control your garage door from anywhere in the world.

Grant controlled access with a secure, time-sensitive one-time PIN for safe remote assistance or entry.

Open, close or check the status of your garage door from anywhere in the world using your smartphone.

The SDO5 SMΔRT+ T12 is ideal for

• Larger and heavier garage doors
• Residential installations requiring high-power automation
• Projects demanding extra control and functionality thanks to an included Wireless Wall Pendant
• Tip-up garage door configurations


Main Features

• AC Driven
• Model options: T12

• Drive system: Belt drive for quiet garage operation

• Safety: Built-in collision sensing with auto-reverse; adjustable sensitivity

• 24V drive system: mains powered, with T12 delivering extra drive power for larger setups
• Connectivity: BLE and Wi-Fi, Stay continuously connected to your garage door motor with real-time status updates and smart monitoring at all times.

• Accessories integration: Two configurable input/output channels and one input

• Receiver capacity: 30 x 4-Button Transmitters

Specifications

• Input voltage    220V - 240V AC @ 50/60Hz

• Motor voltage    24V DC

• Motor power - rated    100W DC

• Motor supply
  • Mains driven

  • 150 VA Thermally fused

  • Toroidal Transformer

• Max door width    6500mm

• Max holding capacity    1200N

• Maximum push/pull force    50kgf

• Battery Backup    Optional 2.9Ah Battery Backup2 870mA Charging Rate with built-in Battery Saving and testing functionality

• Wireless Communication    BLE and Wi-Fi (2.4Ghz)

• Door travel adjustment    Physical Endstops (Automatic limit set)

• Receiver code storage capacity    30x 4-button NOVA transmitters

• Infrared safety beams    Compatible with Wired or Wireless. (Optional but recommended) Configured in MyCentsys Pro

Kit Includes

• 2 x 2.9Ah Battery Backup Kit

• 2 x 4-Button NOVA Remotes
• Tip-up Track Belt


SDO5S_T12_TB0
