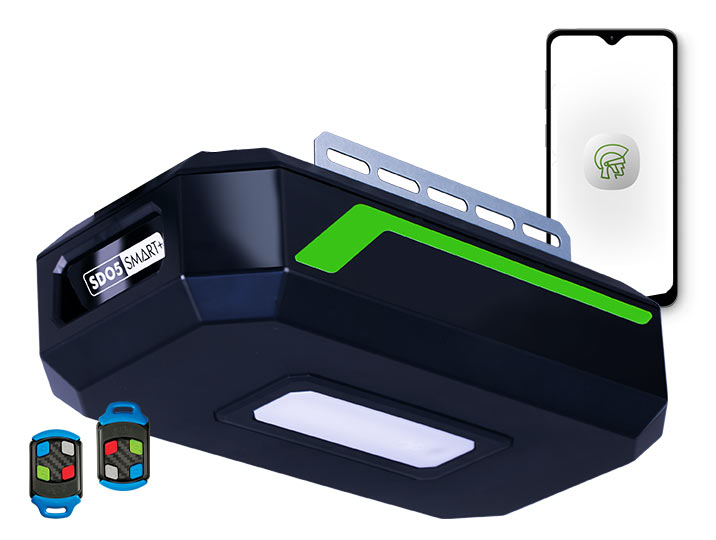

Centurion SDO5 Smart T10 Garage Door Operator Sectional Kit with Battery

The SDO5 SMΔRT+ brings SMΔRT and remote access to your garage door motor, built for garage doors where reliable daily access and SMΔRTer control matter. Control your garage door from anywhere in the world.

Grant controlled access with a secure, time-sensitive one-time PIN for safe remote assistance or entry.

Open, close or check the status of your garage door from anywhere in the world using your smartphone.

The SDO5 SMΔRT+ T10 is ideal for

• Standard domestic garage doors

• Sectional garage door configurations

Main Features

• AC Driven
• Model options: T10

• Drive system: Belt drive for quiet garage operation

• Safety: Built-in collision sensing with auto-reverse; adjustable sensitivity

• 24V drive system: mains powered, with T10 suited to standard home garage doors
• Connectivity: BLE and Wi-Fi, Stay continuously connected to your garage door motor with real-time status updates and smart monitoring at all times.

• Accessories integration: Two configurable input/output channels and one input

• Receiver capacity: 30 x 4-Button Transmitters

Specifications

• Input voltage    220V - 240V AC @ 50/60Hz

• Motor voltage    24V DC

• Motor power - rated    80W DC

• Motor supply
  • Mains driven

  • 110 VA Thermally fused

  • Toroidal Transformer

• Max door width    6500mm

• Max holding capacity    1000N

• Maximum push/pull force    40kgf

• Battery Backup    Optional 2.9Ah Battery Backup2 870mA Charging Rate with built-in Battery Saving and testing functionality

• Wireless Communication    BLE and Wi-Fi (2.4Ghz)

• Door travel adjustment    Physical Endstops (Automatic limit set)

• Receiver code storage capacity    30x 4-button NOVA transmitters

• Infrared safety beams    Compatible with Wired or Wireless. (Optional but recommended) Configured in MyCentsys Pro

Kit Includes

•  2 x 2.9Ah Battery Backup Kit

• 2 x 4-Button NOVA Remotes
• Sectional Track Belt


SDO5S_T10_SB0
