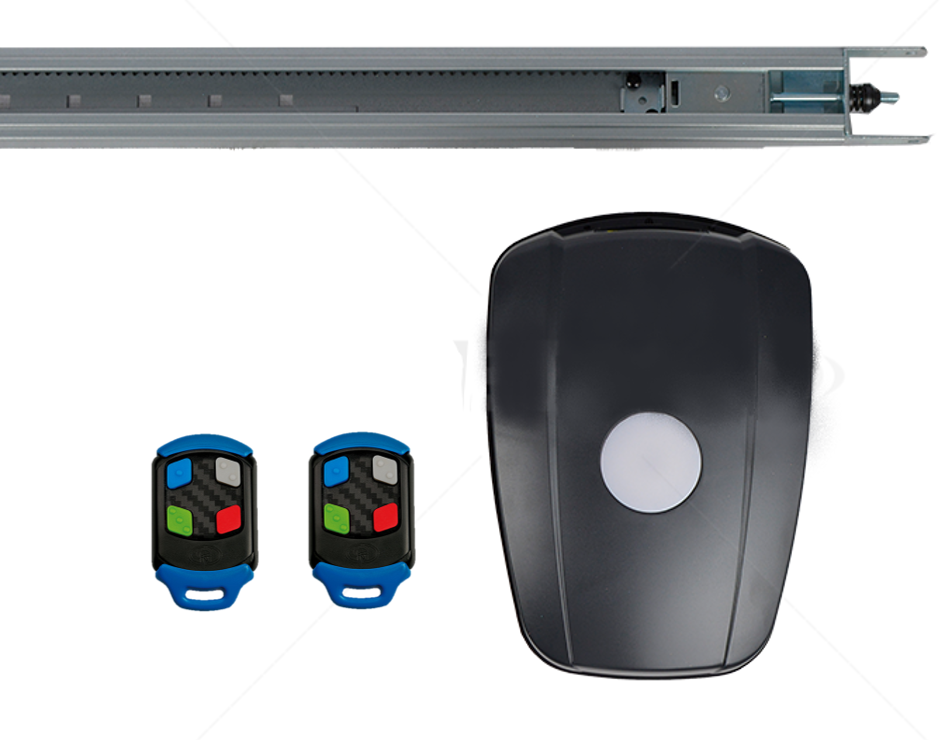

Centurion SDO4 Smart T10 Garage Door Operator Kit with 24V 3Ah Battery

SDO4 T10 Smart GDO 1000N Sectional and Tip-Up garage door operator Kit with battery backup and NOVA Remotes. No more clanking chains, smoother and quieter ride and can be set up in a matter of minutes.

Main Features

• Connecting you to convenience with smartphone integration
• Always-on reliability
• Advanced safety and obstruction-detection technology
• Adjustable speed
• Compatible with Photon SMART wireless beams
• The ultimate in flexibility with programmable I/OS
• App-based management of remote controls
• Tamper detection and intelligent door status monitoring
• Tip Up Kit Inc Battery 2 x Tx4 Wall Pendant
• T10 GDO 1000N

Specification

• Motor voltage    24V DC

• Motor power supply - rated    80W DC

• Motor supply    Battery supply 2 x 3.4Ah 12V DC

• Maximum door width    6.5 metres

• Maximum door area    12 Square meters

• Maximum push/pull force    40kgf

• Maximum lifting capacity    1000N

• Operations in standby mode    Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries

• Maximum operator travel speed    9m/min (Speed varies with load)

• Door travel adjustment    Physical end-stops (Automatic limit set)

• Safety obstruction force system    Built-in menu

• Light    LED 2W

• Autoclose    Menu Selectable    (Can increase battery capacity for longer standby times)

• Infrared safety beams    Menu Selectable (Optional but recommended)

• Onboard receiver type    Code-hopping single channel

• Receiver code storage capacity    20x 4-Button Transmitters

• Receiver frequency    433.92Mhz

• Degree of protection    IPX0 (For interior use only)

• Can operate off a solar supply

Kit Includes

• 24V 3.4Ah Battery Driven Supply
• Charger
• 2 x NOVA Tx4 Remotes
• Sectional/Tip-Up Track Chain


Sectional: SDO4S_T10_SB0

Tip-up: SDO4S_T10_TB0
