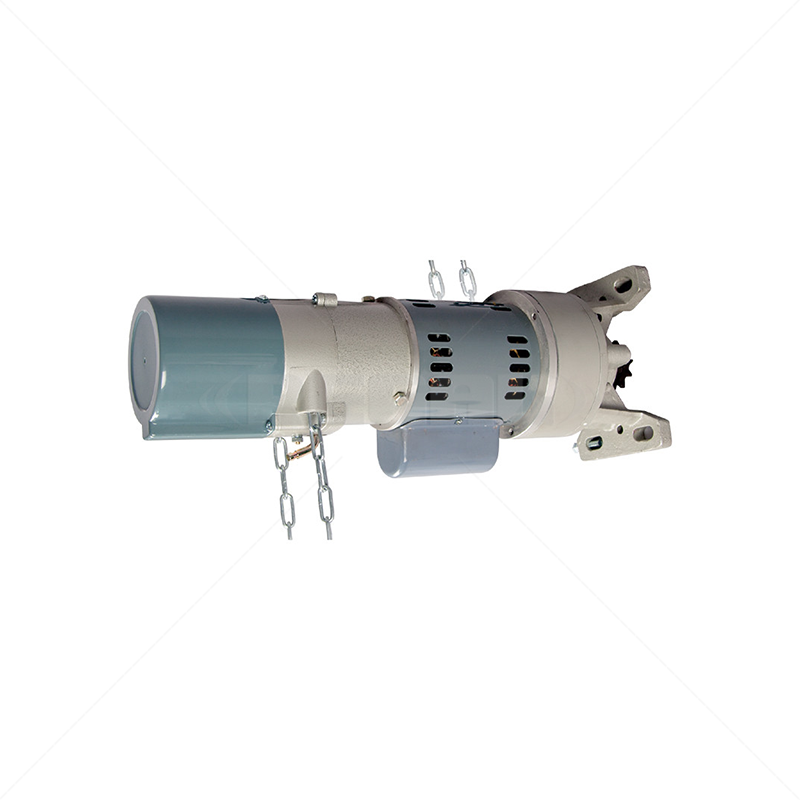

Centurion RSO5DC Roller Shutter Door Automation Kit with Full Motor Logic Control

The RSO5DC Roller-Shutter Operator is designed to provide seamless, powerful automation for industrial roller-shutters.

Whether securing warehouses, loading bays, or commercial storage facilities, this high-performance operator ensures effortless operation, enhanced security, and long-term reliability for heavy-duty environments.

Features

• Lifts up to 500kg Ideal for large-scale roller-shutters in factories, warehouses, and secure storage areas
• Oblique Gear Transmission Provides smooth, efficient movement, even under heavy loads
• Battery Backup System Equipped with two 12V 7Ah batteries housed in a secure wall box, ensuring continuous operation during power failures
• Fail-Safe Manual Operation Includes a 5-meter hand chain for manual operation in case of emergencies
• Break-In and Ambush Alarms Activates if safety beams are interrupted for a pre-set time (requires safety beam installation)
• Positive Close Mode Ensures the roller-shutter is completely closed and secured, offering extra protection against unauthorised access
• ChronoGuard Timer Allows for scheduled operations, including auto-close and time-restricted access, perfect for high-security sites.
• Multiple Input Options: Compatible with keypads, pushbuttons, and other access control devices


Specifications

• Input Voltage    220 - 240V AC

• Motor Voltage    24V DC

• Motor Power Supply    Battery driven - 2A charger

• Duty Cycle    35%

• Daily Operations - Max    350

• Power (W)    220W

• Motor Speed    1440rpm

• Door Travel Speed    130mm/sec

• Current    4.6A 1Ø

• Time Rating    7-8 min

• Temperature Protector    70°C

• Output Shaft Rotation    50rpm

• Gear Ratio    55:1

• Gear Transmission    Double-layer oblique gear

• Gear Box Material    Alluminium

• Drive Type    Chain-driven

• Sprocket    9T

• Chain    5/8 inch

• Length    410mm

• Net Weight    9.64kg

• Gross Weight    10.4kg

• Packing Dimentions    570mm X 265mm X 210mm

Kit Includes

• Operator with Single Disc Electromagnetic Brake
• Chain and Sprocket Drive between Operator and Door
• D10 LCD Electronic Controller in separate Centurion Weatherproof Wallbox with Mains Isolator
• Charger and 2 x 7Ah Batteries
• Excludes Wall Pendant Control


RSO5DCFKIT
