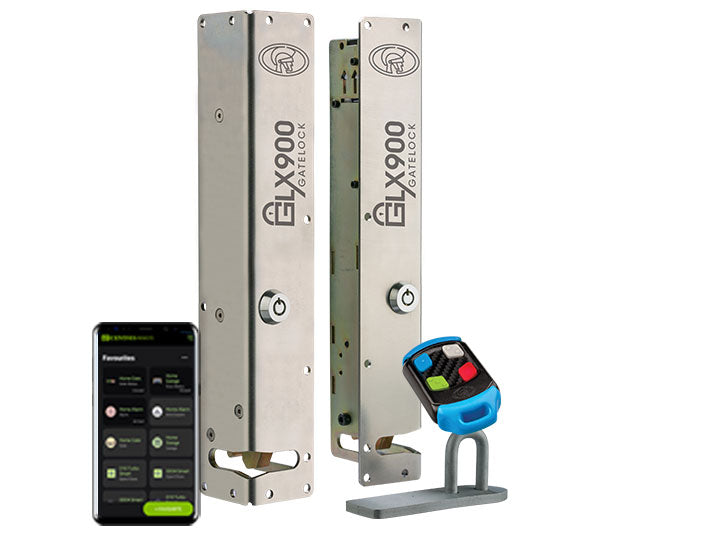

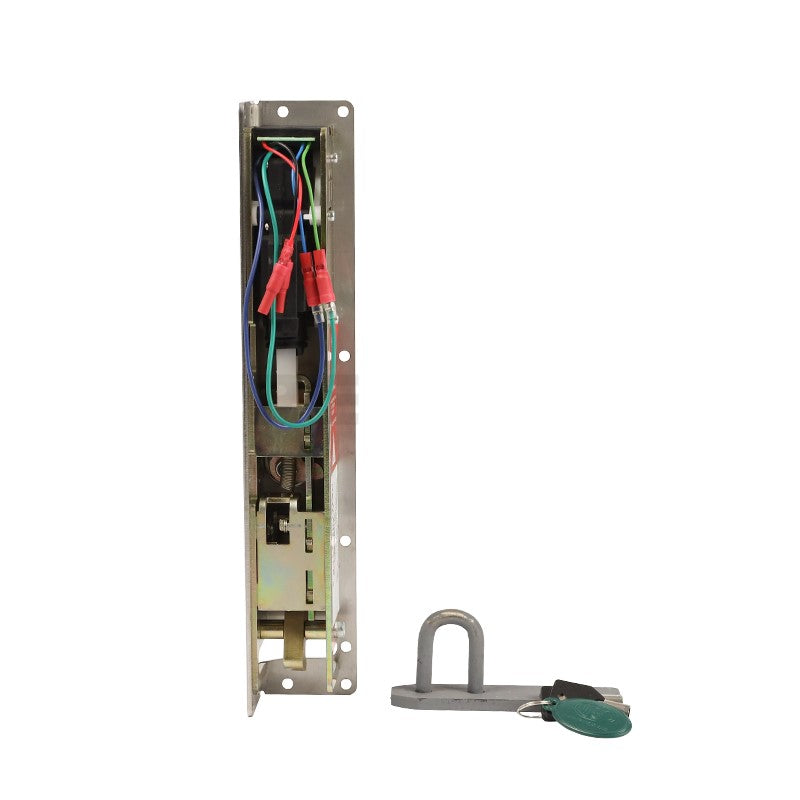

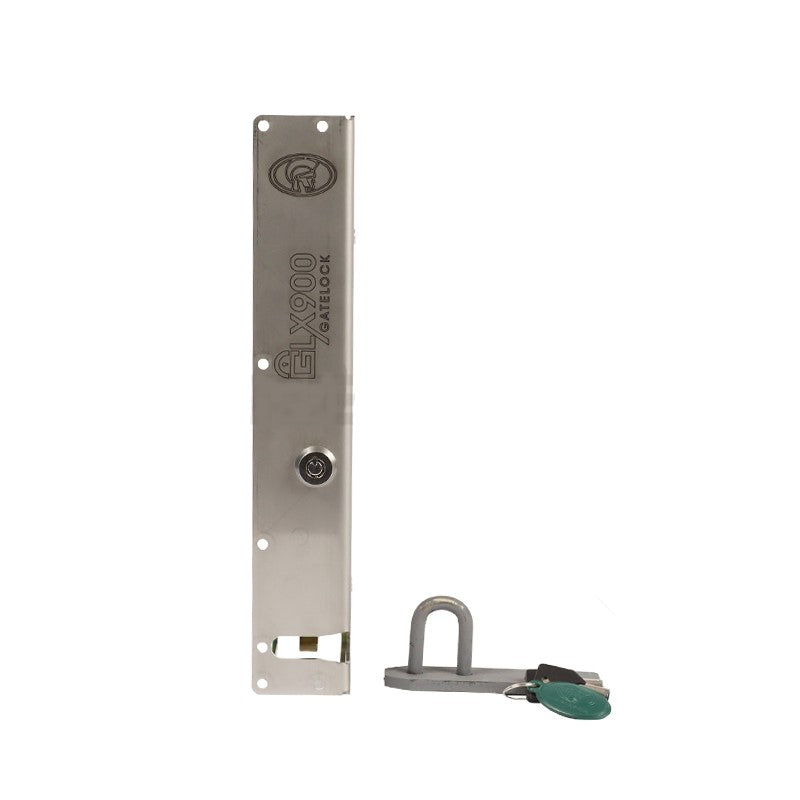

Centurion GLX900 Electric Gate and Door Lock Left

The GLX900 Electric Gate and Door Lock is an ultra-versatile solution for enhancing entryway security with minimal installation complexity.

Adding an extra layer of security to swing gates, sliding gates, doors, and other entryways, securely locking the gate/door in place and preventing forced opening in either direction.

Features

• Ultra-Versatile - Designed to integrate seamlessly with both swing and sliding gates, providing flexible installation options for diverse projects

• CENTURION SMΔRT Compatibility - Fully compatible with the CENTURION SMΔRT platform, allowing for an integrated and intelligent security solution

• Simple Setup - Installation and commissioning for SMΔRT operators are quick and easy with the MyCentsys Pro mobile app, streamlining the process for a hassle-free setup

• Enhanced Security - With a robust 900kg break-in force, the GLX900 provides formidable protection against intrusion

• Sophisticated and User-Friendly - Features a smooth, intuitive locking and unlocking mechanism designed for easy, reliable use

• Built for Longevity - Engineered to perform for up to 150,000 cycles, ensuring dependable long-term reliability

• Unmatched Resilience - Operates smoothly even during high winds or under significant pre-load, keeping you secure in any condition

• Compact and Unobtrusive Design - The compact form factor fits effortlessly into a 50mm x 50mm square tube, blending seamlessly into any entryway
  Energy-Efficient - Runs on pulse current, making it an efficient, battery-friendly solution

Specifications

• Operating voltage 10.8 - 30V DC

• Maximum current draw 2.7A @500mS

• Minimum pulse duration 1 Second

• Dimensions (HxWxD) 305 x 52 x 52mm

• Weight 1450g

• Material

  • Lock housing Grade 304 Stainless Steel

  • Lock components Zinc plated Mild Steel

  • Gate staple Spray-galvanised Mild Steel

  • Pop rivets Grade 304 Stainless Steel

• Ultimate strength 900kg
• Type 2

GLX09002V1
