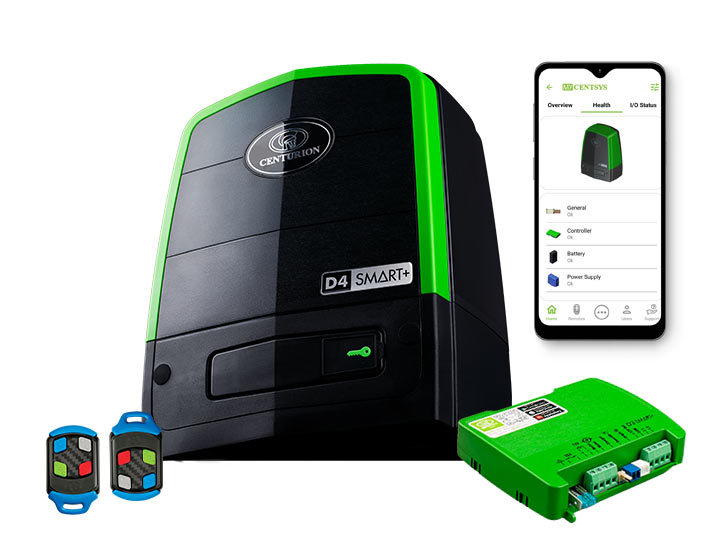

Centurion D4 Smart Plus Sliding Gate Motor Nylon Rack Kit

The D4 SMART+ sliding gate motor delivers reliable home gate automation with the added convenience of built-in Wi-Fi connectivity. Designed for everyday residential use, it combines smooth gate operation, strong security features and easy control through smart technology.

Perfect for homeowners who want dependable access control and peace of mind, the D4 SMΔRT+ offers a powerful yet user-friendly automation solution.

Features

• Input voltage    110V - 240V AC 50/60Hz1
• Current consumption (mains)    320mA peak
• Dx12V Battery charger current output    1.8A @ 14.3V +/- 5% (28W)
• Maximum number of operations per day    75 (3,6)
• Duty cycle - Mains present    25%
• Motor power supply    Battery-driven (Standard Capacity - 1x12V)
• Current consumption (motor at rated load)    15A
• Fuse Protection    Type | Rating
• Main Control Card    Serviceable | 35A
• Aux. Supply    Resetable Fuse | 12V 300mA MAX (10sec Pulse)
• Charger (Mains Supply)    Non-serviceable | 3A slow-blow
• Motor push force - starting    18kgf
• Motor push force - rated    12kgf
• Gate mass - maximum    450kg
• Gate speed (varies with load)    Maximum: Up to 24m/min Rated: Up to 21m/min
• Manual Override    Lockable with key release
• Operations whilst in Battery backup mode with 7.2Ah Battery    Operating Mode
• Up to 28m/min 7kgf | Up to 24m/min 12kgf
• Half day    90 | 80
• Full day    70 | 65
• Collision Sensing    Electronic
• Operating temperature range    -15°C to +50°C
• Onboard receiver type    Code-hopping multichannel receiver with selective add and delete
• Receiver code storage capacity    32 Remotes7
• Receiver frequency    433.92MHz
• Degree of protection    IP55
• Mass of unit packed (with standard kit, but excl. Rack and Battery)    6.7kg
• Packaging dimensions (with standard kit, but excl. Rack and Battery)    325mm wide x 245mm deep x 395mm high


Kit Includes

• Operator
• Wi-Fi Controller
• 12V Charger
• 1 x CP4C2_28W Battery
• 4m Nylon Angle Rack
• 2 x 4-Button NOVA Remotes
• Excludes Foundation Plate

D4SMPLUSFK_NYL
