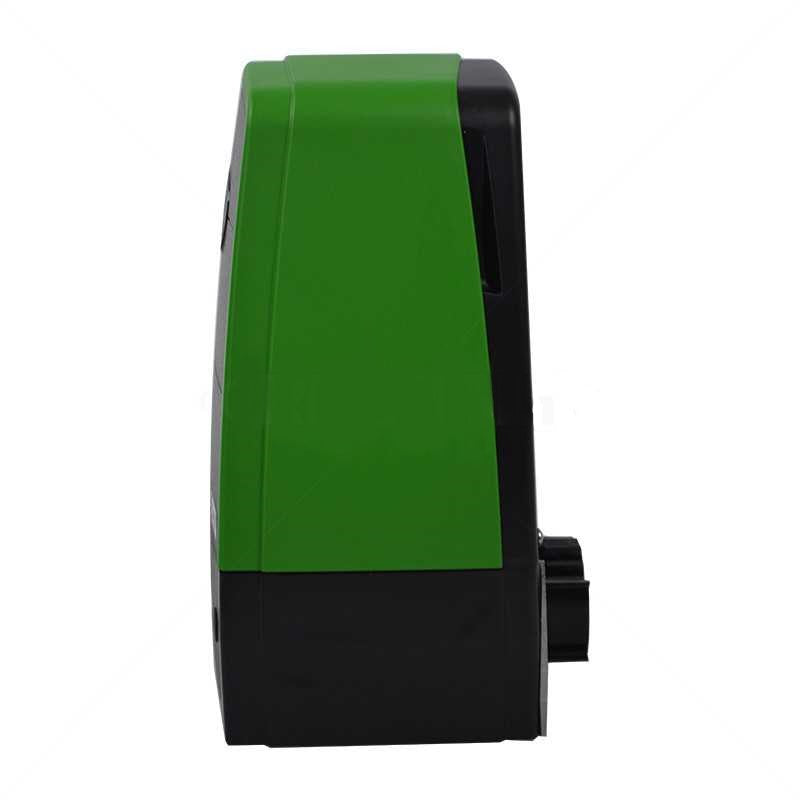

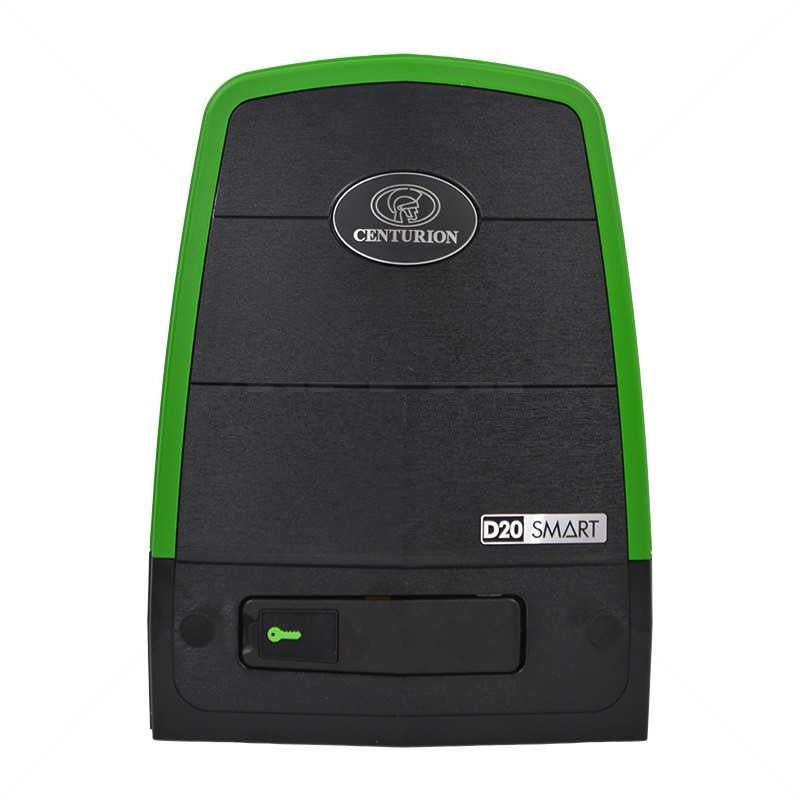

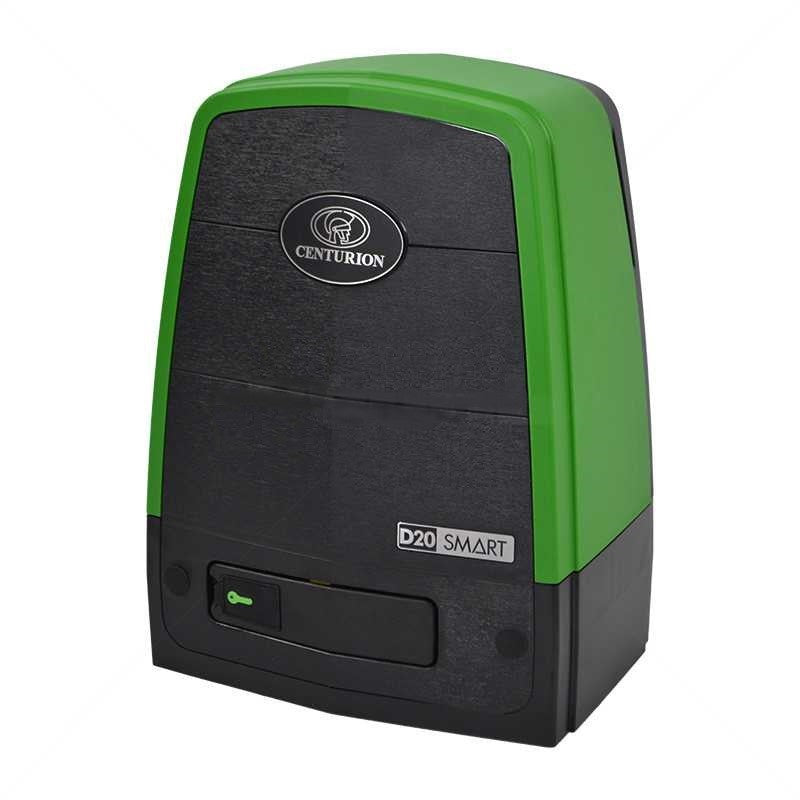

Centurion D20 Smart Plus Sliding Gate Operator Motor Only

The D20 SMΔRT+ is the heavy-duty industrial sliding gate operator in the SMΔRT+ range, built for demanding commercial and industrial entrances where consistent uptime matters.

D20 Smart Plus is a perfect balance between security and safety with easy setup and configuration from your smartphone. D20 Smart provides the best experience for installers and end-users alike with easy access to mounting hardware and optimised cable management for the neatest installation around.

Features

• Gate capability: up to 2000kg gate mass; up to 25m gate length

• Gate speed (varies with load): up to 18m/min

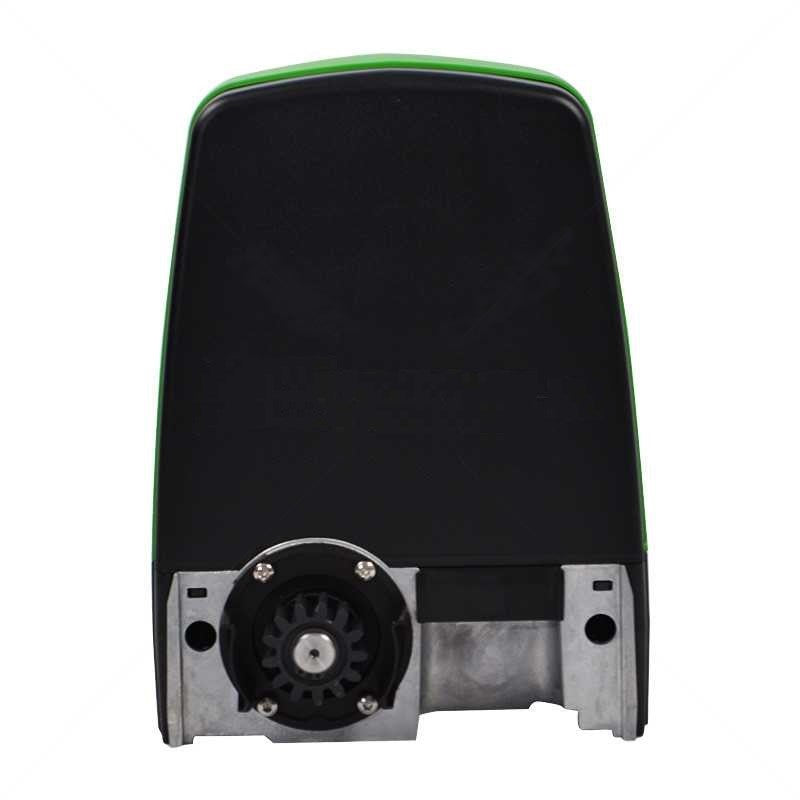

• 13-tooth steel pinion: reliable movement for heavy industrial gates

• Maximum number of operations per day: 750

• Motor voltage: 2 x 12V 7Ah battery-driven

• Wireless communication: BLE and Wi-Fi

• Further expanded accessories integration: 6 available inputs/outputs

• Receiver capacity: 1500 remotes

Specifications

• Input voltage    90V - 240V AC +/-10% @ 50Hz
• Current consumption (Mains)    250mA
• Battery charger current output    1.8A @ 27.4V +/-1%
• Maximum number of operations per day    750.2, 5
• Duty cycle - Mains present    45%
• Motor voltage    24V DC
• Motor power supply    Battery-driven (Standard Capacity - 2x 7.2Ah)3
• Current consumption (motor at rated load)    9A
• Input / Output sink currents (Max accessory current draw)
• I/O 1-4    100mA (12/24V)
• I/O 5 and 6    3A (12/24V) 10sec Pulse
• Motor push force - starting    52kgf
• Motor push force - rated    39kgf
• Gate mass - maximum    2000kg
• Gate length - maximum    25m
• Gate speed (varies with load) Up to 18m/min
• Manual Override Lockable lever with key release
• Drive Pinion 13T Module 4
• Operations in standby with 2x 7.2Ah batteries: Power Saving (15m/min 20kgf) |
• Normal (18m/min 20kgf)
• Half day 101 | 55
• Full day  80 | 45
• Collision Sensing Electronic
• Operating temperature range: -15°C to +50°C
• Onboard receiver type: CENTURION rolling code (Keeloq encryption) multichannel
• Receiver code storage capacity 1500 Remotes6
• Receiver frequency 433.92MHz
• Degree of protection IP54
• Mass of unit packed (with standard kit, but excl. rack and battery) 13kg
• Packaging dimensions (with standard kit, but excl. rack and battery) 350mm wide x 282mm deep x 470mm high

Kit Includes

• Operator
• DX Plus Wi-Fi Controller
• DX Charger 24V 2A
• Excludes Remotes, Rack, Batteries and Foundation Plate

D20RSMARTB02
