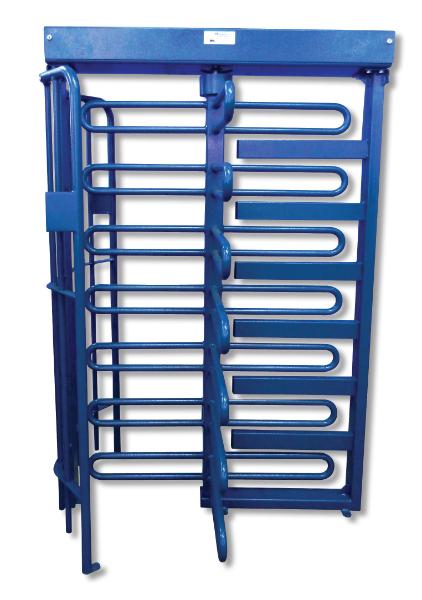

Boomgate Tornado Turnstiles Single 4-Arm Full Height - Ultra Heavy Duty

Best-selling turnstiles mostly used at the mining, industrial and stadia areas for its reliability and capability to handle ultra-high traffic flow. Virtually no maintenance required due to the robust mechanical design.

Boomgate Systems turnstiles are compatible with any access control, time and attendance system or ticketing system. Only requires a n/o voltage free input trigger set for half a second.

Electronically controlled in both directions. Mechanical control in both directions by means of key lock.

Features

• Power Locking Options: Fail secure / Fail safe
• Battery Back Up: 2 x 7Ah Batteries
• Card reader brackets: 105mm wide and 140mm long welded to turnstile frame. Can remove brackets on request

Electrical Specifications

• Power: 220V AC ±5%
• Frequency: 50Hz
• Power Consumption: 50W for single turnstile and 100W for double turnstile
• Logic Voltage: 24V DC, 12V available on request
• Solenoids Voltage: 24V DC, 12V available on request
• Turnstile Dimensions: Single: 1405mm wide x 2135mm high
• Double: 2155mm wide x 2135mm high
• Rotor turning radius: R = 590mm
• Rotor arm configurations: •
  • 3-arm = 120° •
  • 4-arm = 90° •
  • 5-arm = 72°
• Rotor arms:
  • Single full height = 32mm x 138mm U Bend, 130mm apart
  • Double full height = 32mm x 138mm U Bend, 158mm apart
• Weight:
  • Single full height turnstile 4-arm = 180kg
  • Double full height turnstile 4-arm = 275kg
• Modular design: The turnstile can be disassembled for easy transport
• A disassembled turnstile can pass through a standard door

SG010
