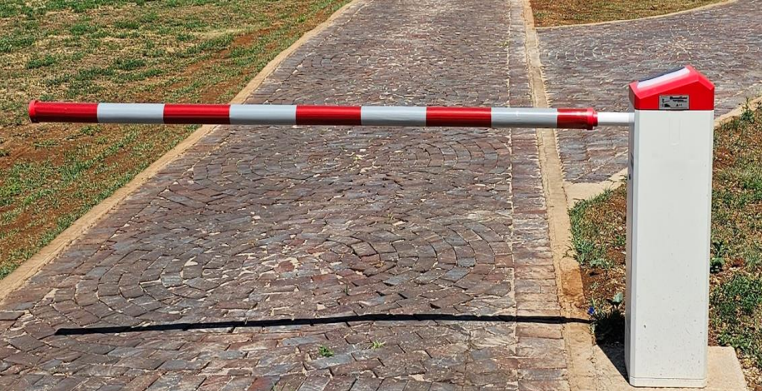

BoomGate Genius Turbo 6m Traffic Access Barrier Boom Gate

Designed to handle a high volume of traffic. The barrier is equipped with a 24V DC motor which lifts the boom arm through a sinusoidal level system which allows the boom arm to be locked in both up and down position. Barrier has life expectancy of 1 million operations. The boom arm can be raised to 90 degrees in an event of a power failure. Available in left and right-hand. The boom arm can be supplied as a straight arm or with a jack knife kit and the boom arm can also be equipped with a fence or curtain. The barrier requires minimum maintenance. Comes standard with LED robot on Cabinet, Control Logic, Boom Arm and a Battery Back Up.

Features

• Boom Pole Size 6m
• Speed is adjustable
• Auto boom arm return function. Built-in sensor detect when boom arm hits
• an obstacle and will return to the open position
• Automatic open and close limit sensor
• Estimated at 1 million open and closing cycles

Specifications

• Voltage 220V AC / 24V DC
• Housing Dimensions: 360mm (W) x 300mm (D) x 1050mm (H)
• Weight
• Mechanism 25kg
• Gate 55kg
• Battery Backup
• Maximum Remote Control Distance <40m

Applications

• Parking Garages
• Golf or Residential Estates
• Factories & Mines
• Industrial and Commercial use
• Any application where vehicles need to be controlled

BG-T10-6M24V
