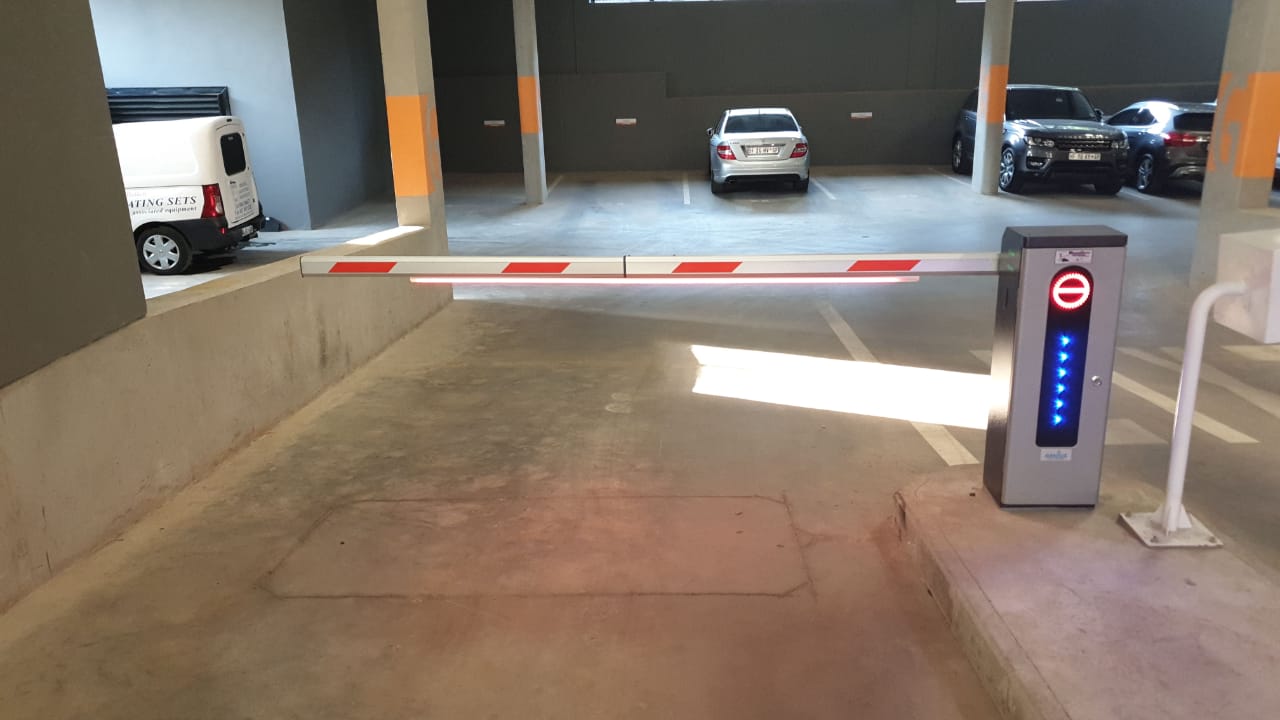

BoomGate Genius Rapid 4.5m Traffic Access Barrier Boom Gate
BoomGate Genius Rapid 4.5m Traffic Access Barrier Boom Gate

BoomGate Genius Rapid 4.5m Traffic Access Barrier Boom Gate

R 22,613.46

Designed to handle a high volume of traffic. The barrier is equipped with a 24V DC motor which lifts the boom arm through a sinusoidal level system which allows the boom arm to be locked in both up and down position. Barrier has life expectancy of 3 million operations and comes with a 1 year warranty. The boom arm can be raised to 90 degrees in an event of a power failure with a crank handle. Available in left and right-hand options with octagonal boom arms. The boom arm can be supplied as a straight arm or with a jack knife kit and the boom arm can also be equipped with a fence or curtain. The barrier requires minimum maintenance. Comes standard with LED robot on Cabinet, Control Logic, Boom Arm and a Battery Back Up.

Features

  • Boom Pole Size 4.5m
  • Speed is adjustable
    • 1.5 second motor: speed adjustable 1.5 to 3 seconds
    • 3 second motor: speed adjustable 3 to 6 seconds
  • Open & close speed can be different
  • Auto boom arm return function. Built-in sensor detect when boom arm hits
  • an obstacle and will return to the open position
  • Automatic open and close limit sensor
  • Estimated at 3 million open and closing cycles
  • Mild steel housing powder coated grey with silver door

Specifications

  • Voltage 220V AC / 24V DC
  • Housing Dimensions: 355mm (W) x 280mm (D) x 1050mm (H)
  • Weight 50kgs
  • Maximum Remote Control Distance <40m

Applications

  • Parking Garages
  • Golf or Residential Estates
  • Factories & Mines
  • Industrial and Commercial use
  • Any application where vehicles need to be controlled

BGST-D107-4.5M24V
