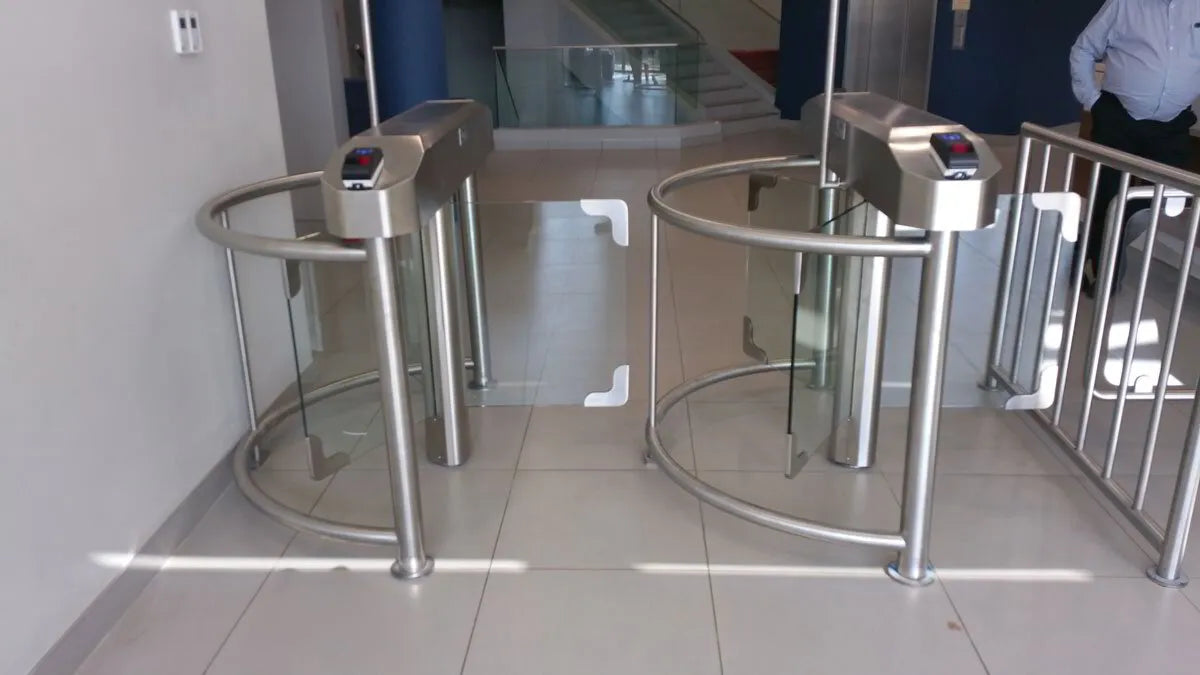

Boomgate Cyclone Curved Glass Turnstile Single 3-Arm Half Height - Automatic Motorised

Designed to handle high volumes of traffic and is 100% duty rated. The turnstile can interface with any biometric reader system or any other card reader system. Remote control or keypad. All the electronic equipment is manufactured to ISO 9002 standards.

Features

• Unique ”keyless square shaft®”design

• This new design in our shaft is what sets us apart

• Designed for long-lasting reliability

• Rotor returns to locked position after every rotation

• Rotor can’t reverse after 60º rotation to ensure entry

• Modular 11 pin programmable logic with LED indicators

• Control panel comes standard with 12V and 24V DC output

• Solenoids are rated 100% duty cycle for trouble free operations

• Case hardened locking mechanism

• Zinc plated mechanism for corrosive protection

• Maintenance free mechanism

• Factory tested recorded serial numbers

• Quiet locking and unlocking mechanism

• Manufacturers warranty

• Mechanism comes with a dust cover for extra protection, noise reduction.

• No midway locking or trapping in an event of power failure.

• Hydraulic Damping Systems can be fitted with hydraulic damper to slow rotor down before locking

Electrical Specifications

• Power: 220V AC ± 5%

• Frequency: 50Hz

• Power Consumption: 50w for single turnstile and 100w for double turnstile

• Logic Voltage: 24V DC, 12V available on request

• Solenoids Voltage: 24V DC, 12V available on request

• Turnstile Dimensions: See drawings

• Rotor turning radius: 3-arm = 120º

• Rotor arm configurations: 4-arm = 90º

• Rotor arms: 10mm toughened glass

• Weight: Single 3 wing S/S / 120kg

• Package Size: Single = 1260 H X 1600 L X 880 W
• Batteries not included, requires 2 x 7Ah batteries
