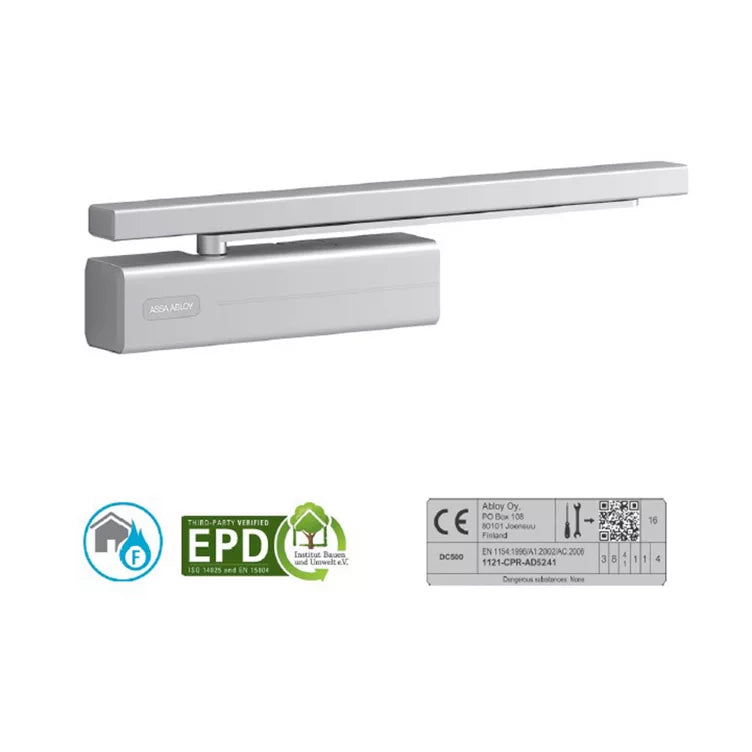

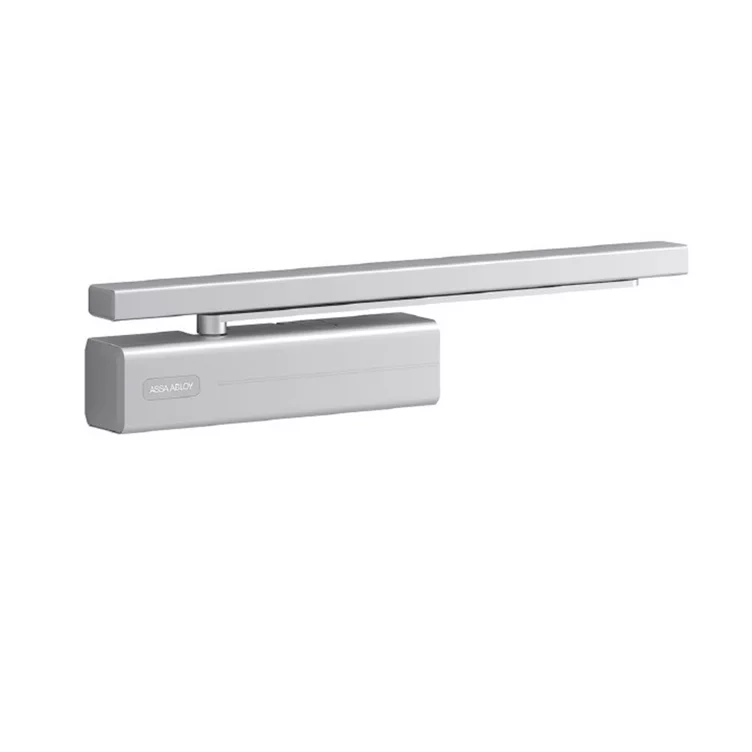

ASSA ABLOY DC500HO Cam-Motion® Door Closer with Link Arm Hold Open

A high-performance Cam-Motion® door closer designed for single-action doors up to 1100mm wide. Certified to EN 1154, sizes 1-4, it provides smooth and controlled door operation while fulfilling barrier-free building requirements in accordance with EA / CEN TR 15894. Suitable for both left- and right-handed doors, including fire and smoke protection doors, it features adjustable closing speed, latching speed, backcheck and variable closing force. The door can open up to 170° (120° on the non-hinge side). A hold-open variant is also available, with a 130° hold-open angle.

Features

• Door closer with Cam-Motion^® technology
• Certified in compliance with EN 1154, size 1-4
• For single action doors up to 1100mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 170° (non-hinge side 120°)
• Hold-open variant available
• Hold-open angle 130°

DC500HO
