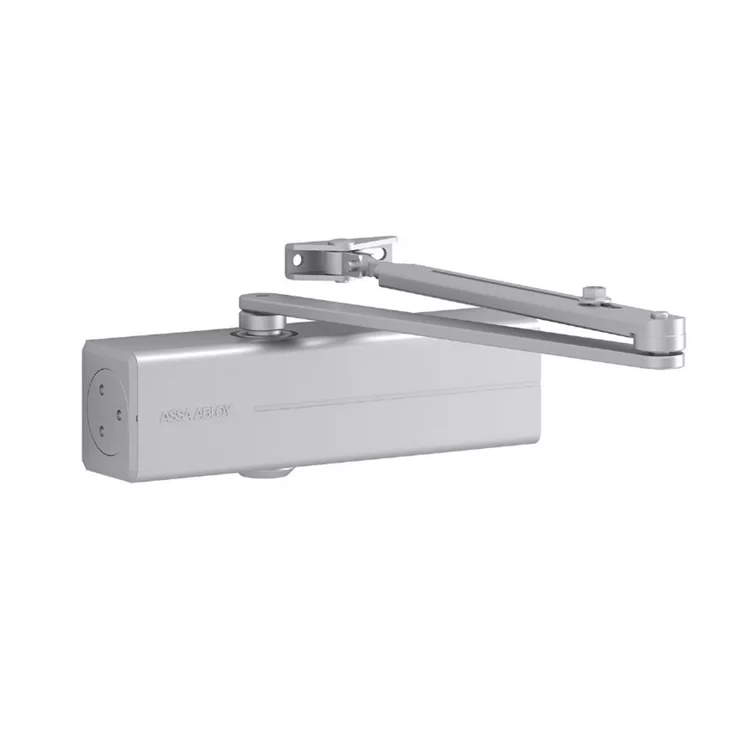

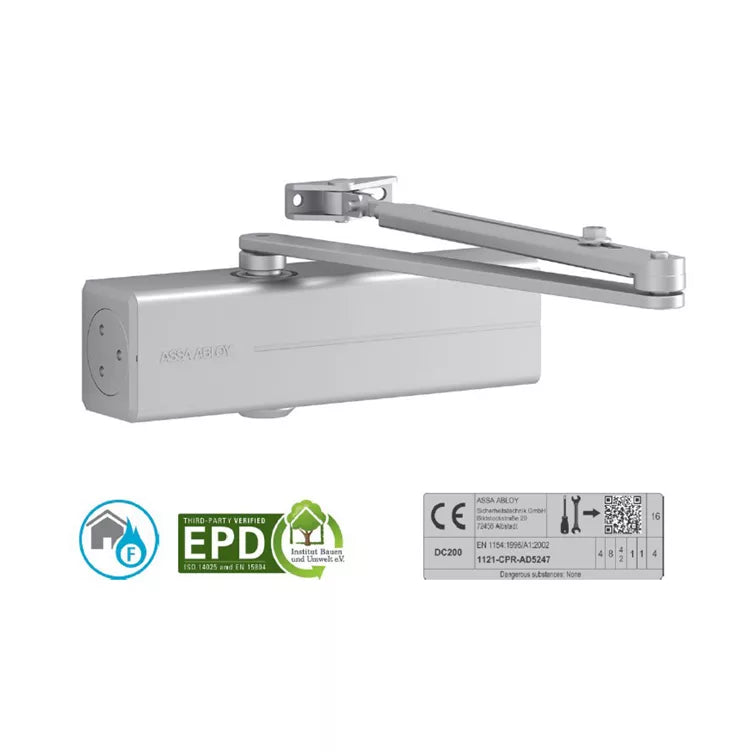

ASSA ABLOY DC200 Rack & Pinion Door Closer with Link Arm Non Hold Open

A robust and versatile rack and pinion door closer with link arm, designed for single-action doors up to 1100mm wide. Certified to EN 1154, size 2-4, it is suitable for both left- and right-handed doors, including fire and smoke protection doors. Adjustable closing speed, latching speed, backcheck and variable closing force ensure smooth and controlled operation. With an opening angle of up to 180°, it offers excellent flexibility for a wide range of applications. A hold-open variant is also available, allowing the door to be held open at an adjustable angle between 75° and 150°.

Features

• Rack and pinion door closer with link arm
• Certified in compliance with EN 1154, size 2-4
• For single action doors up to 1100mm wide
• Can be used on left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 180°
• Hold-open variant available
• Hold-open angle between 75° - 150°

DC200
