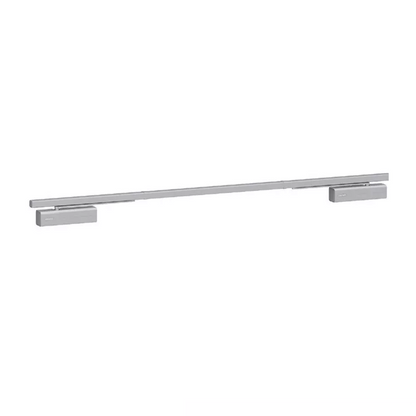

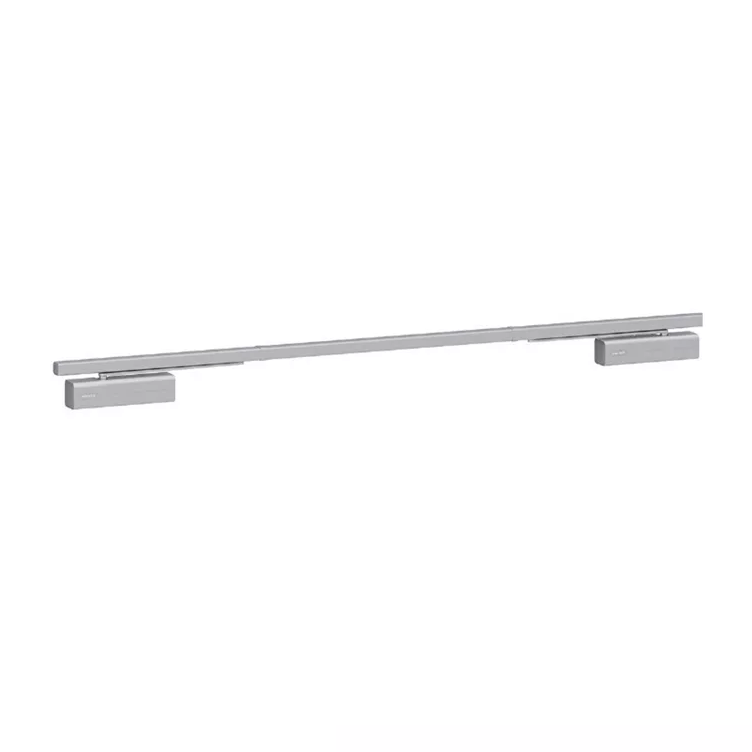

ASSA ABLOY FD464-DC700 Heavy-Duty Cam-Motion® Double Door Closer with Mechanical Coordinator & Electromechanical Hold-Open

A heavy-duty Cam-Motion® door closer system with guide rail, integrated mechanical coordinator and one electromechanical hold-open device, designed for double-leaf doors between 1250mm and 2800mm wide. Certified to EN 1158 and EN 1155, sizes 3-6, it ensures the correct closing sequence by guaranteeing that the inactive leaf closes before the active leaf begins to close.

Suitable for fire and smoke protection doors, the system features adjustable closing speed, latching speed, backcheck and variable closing force for smooth and controlled operation. The active leaf offers an opening angle of up to 150° on the hinge side and 120° on the non-hinge side. The inactive leaf can be held open at adjustable angles between 70°-130° on the hinge side and 70°-120° on the non-hinge side, providing flexible access and reliable door control.

Features

• Door closer with Cam-Motion^® technology and guide rail with integrated mechanical coordinator and one electromechanical hold open device

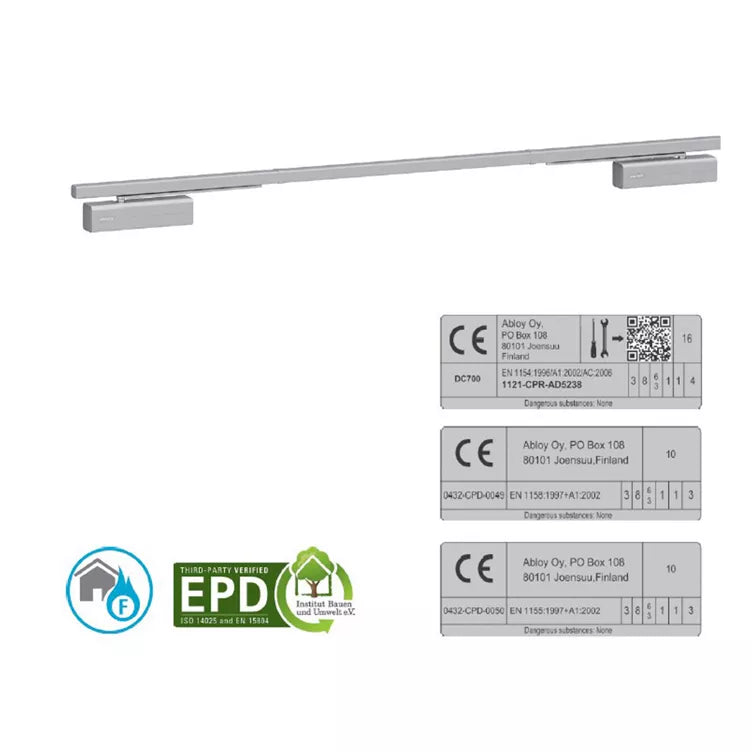

• Certified in compliance with EN 1158 and EN 1155, size 3-6
• For double leaf doors 1250 - 2800mm wide
• Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle of active leaf (hinge side / non-hinge side) 150° / 120°
• Hold open angle of inactive leaf (hinge side / non-hinge side) 70° - 130° / 70° - 120°
•


FD464-DC700
