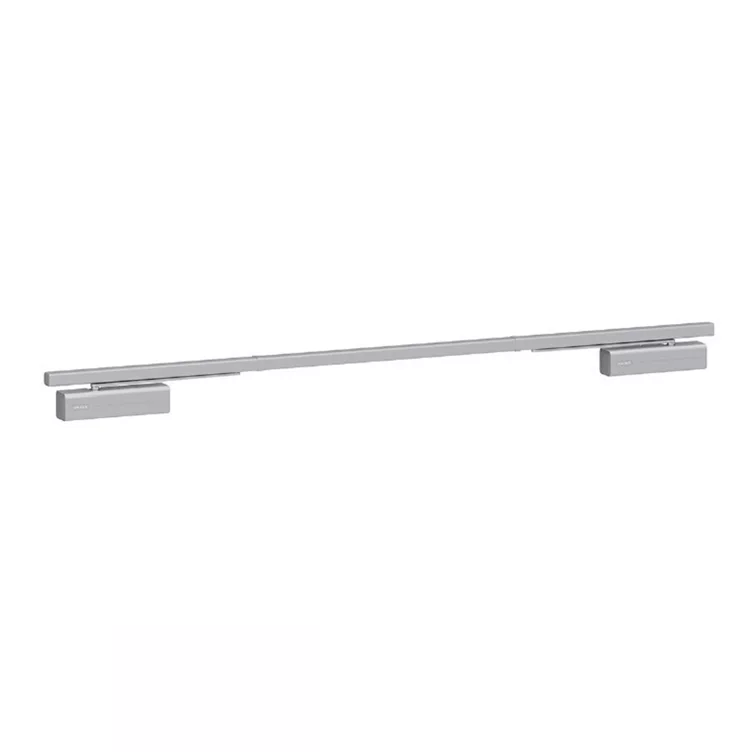

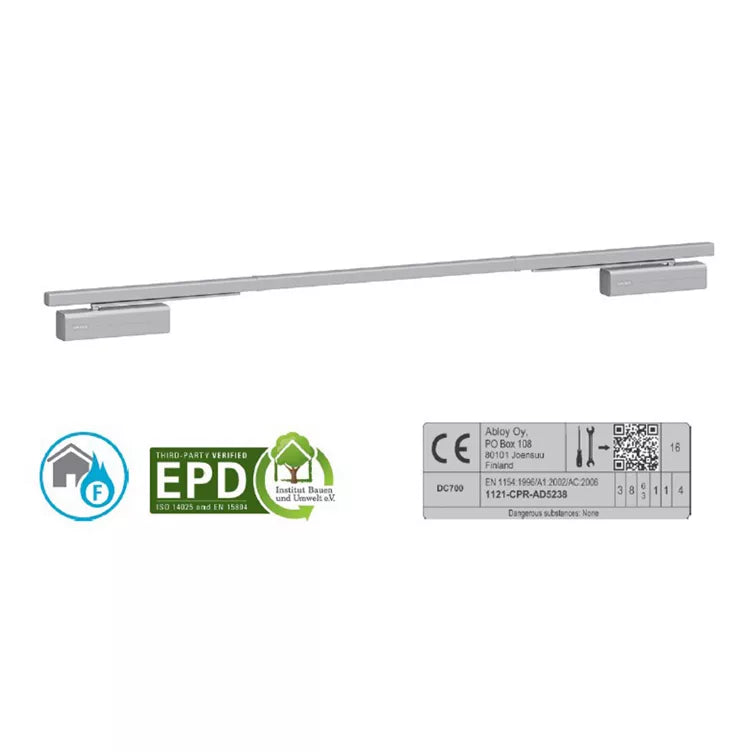

ASSA ABLOY FD461-DC700 Heavy-Duty Cam-Motion® Double Door Closer with Mechanical Coordinator

A robust Cam-Motion® door closer with guide rail and integrated electromechanical hold-open device, designed for single-leaf doors up to 1400mm wide. Certified to EN 1155, sizes 3-6, it is suitable for both left- and right-handed doors, including fire and smoke protection doors.

Adjustable closing speed, latching speed, backcheck and variable closing force provide smooth, controlled door operation. With an opening angle of up to 130° and an adjustable hold-open angle between 70° and 130°, it offers reliable and convenient hold-open functionality for commercial, public and fire-rated door applications.

Features

• Door closer with Cam-Motion^® technology and guide rail with integrated mechanical coordinator
• Certified in compliance with EN 1158, size 3-6
• For double leaf doors 1250 - 2800mm wide
• Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
• Active leaf able to stay open in any selected angle up to 150° when inactive leaf is open
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle of active leaf (hinge side / non-hinge side) 150° / 120°
• Opening angle of inactive leaf (hinge side / non-hinge side) 170° / 120°


FD461-DC700
